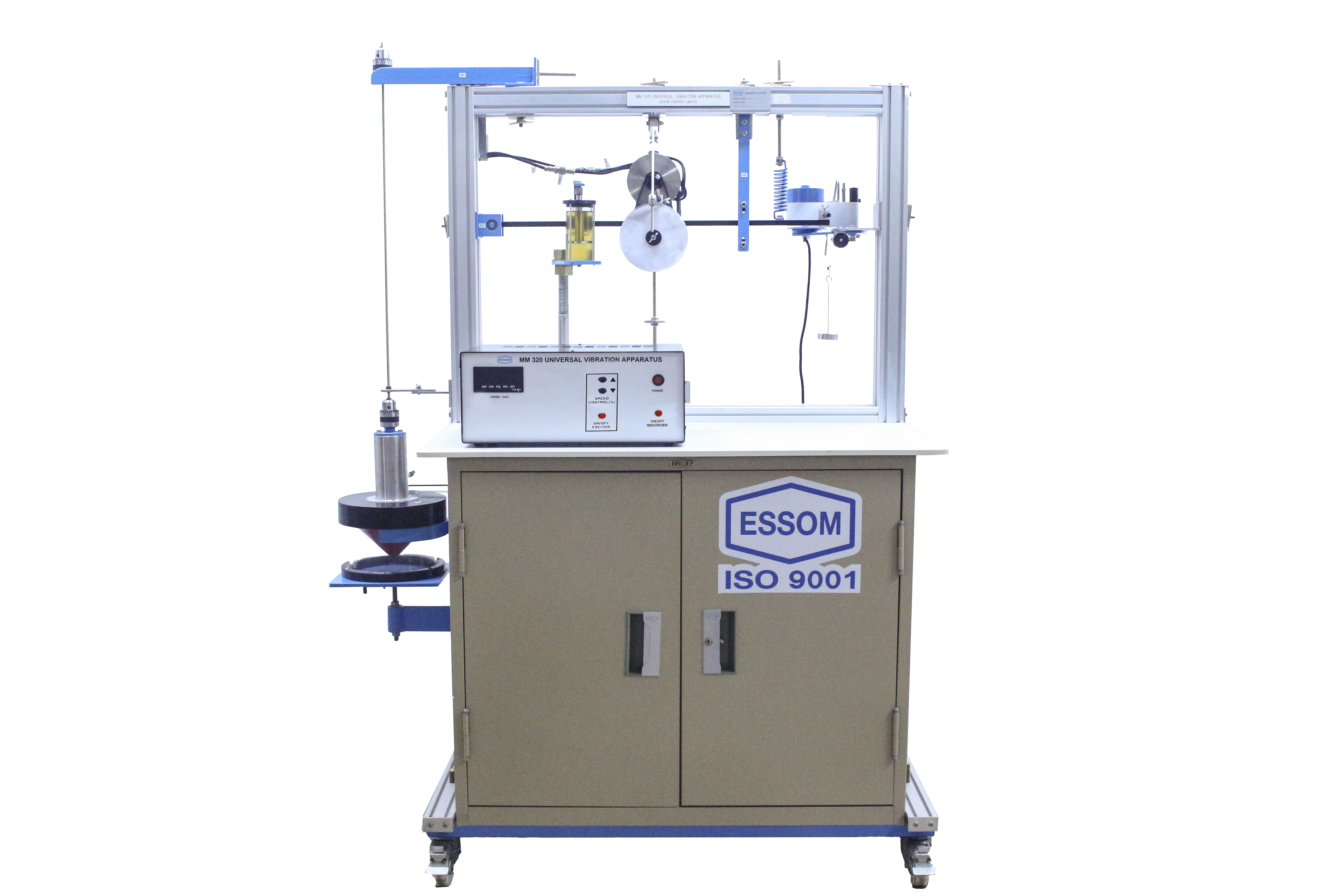

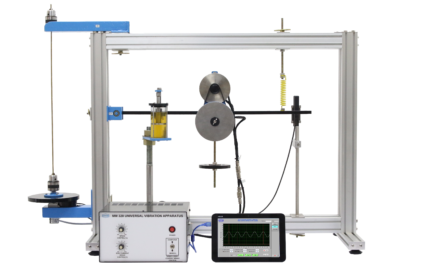

MM 320 UNIVERSAL VIBRATION APPARATUS
This apparatus is used for studying a wide range of vibration experiments namely, pendulums, mass-spring, free and forced vibration, lateral vibration, torsional vibration, vibration with and without damping.
The apparatus consists of a basic unit for use with optional accessories for individual experiment.
Instruction manual is also included.
- Simple pendulums study
- Compound pendulum study
- Kater pendulum study
- Bifilar and Trifilar suspension study
- Center of percussion study
- Mass-Spring system study
- Determination of center of percussion
- Torsional vibration study
- Lateral Vibration study
- Force vibration
- Free vibration
- Damped vibration
- Damping ratio
- Demonstrate vibration absorption
- Study of frequency ratio vs amplitude and phase angle.
The following experiments are available. Only one experiment at a time can be carried out on the MM320-001 Floor Standing Unit, MM320-005 Bench Top Unit or MM 320-007 Pendulum Unit.

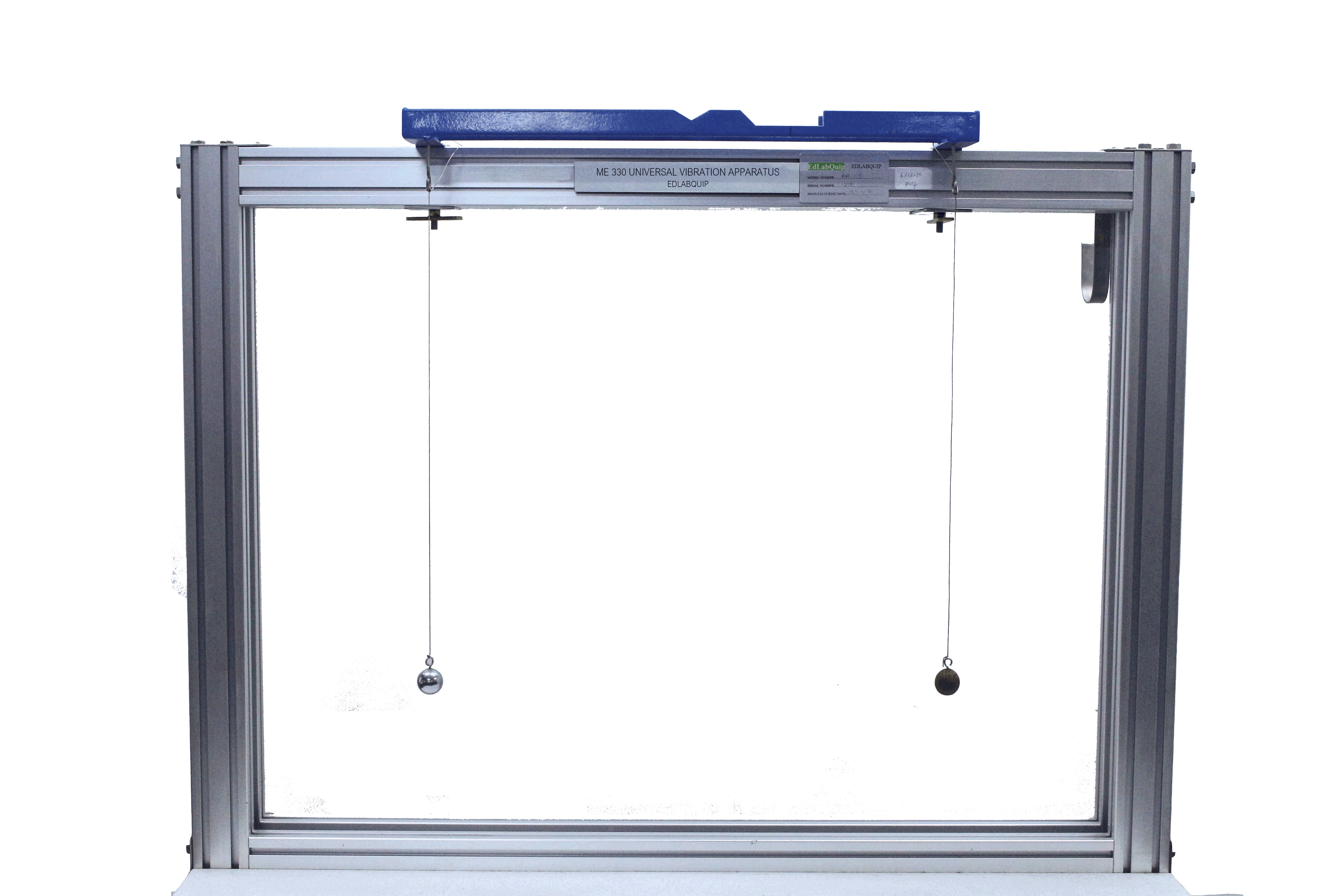

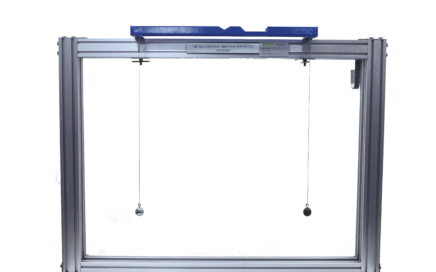

MM 320-010 Simple Pendulums | |

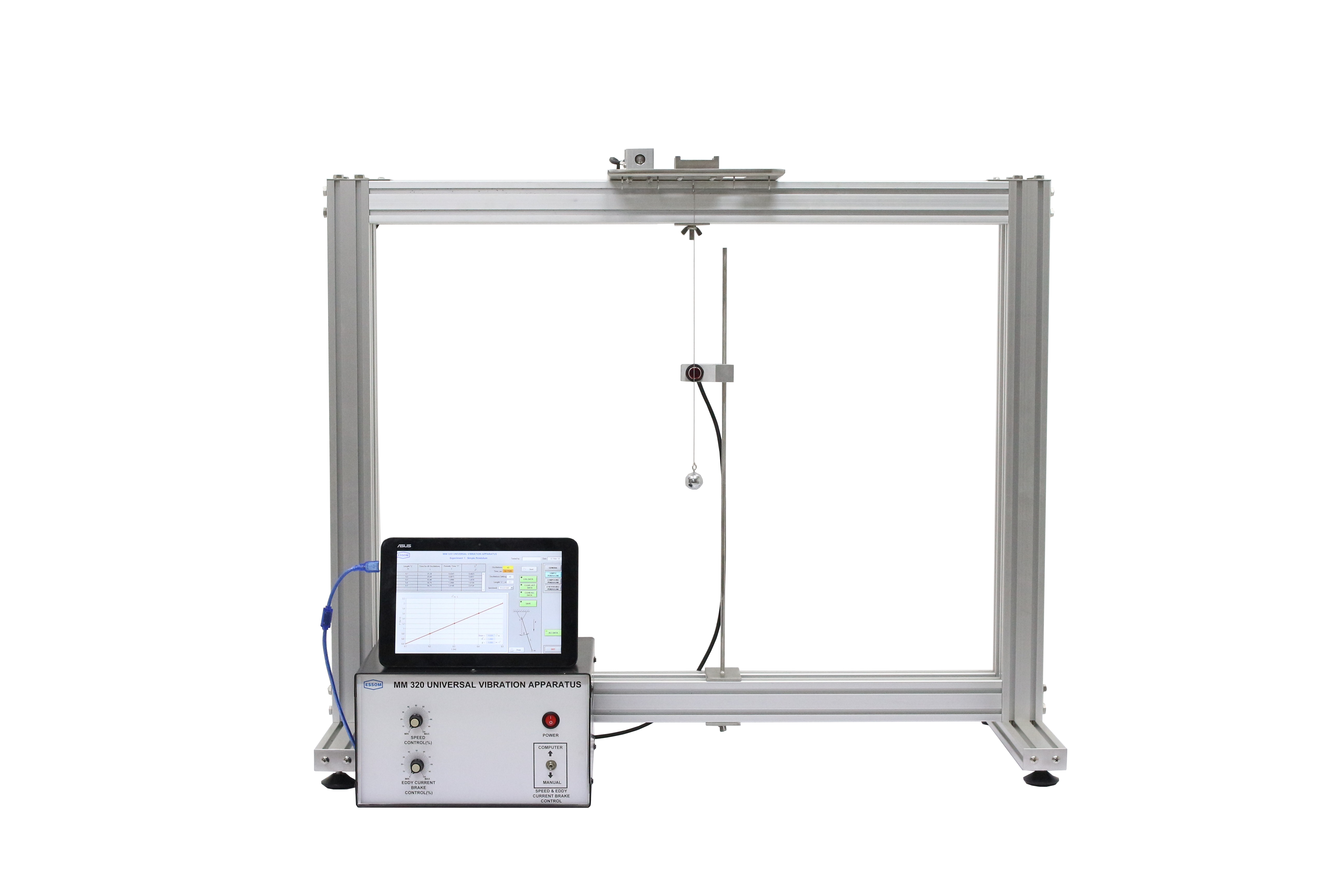

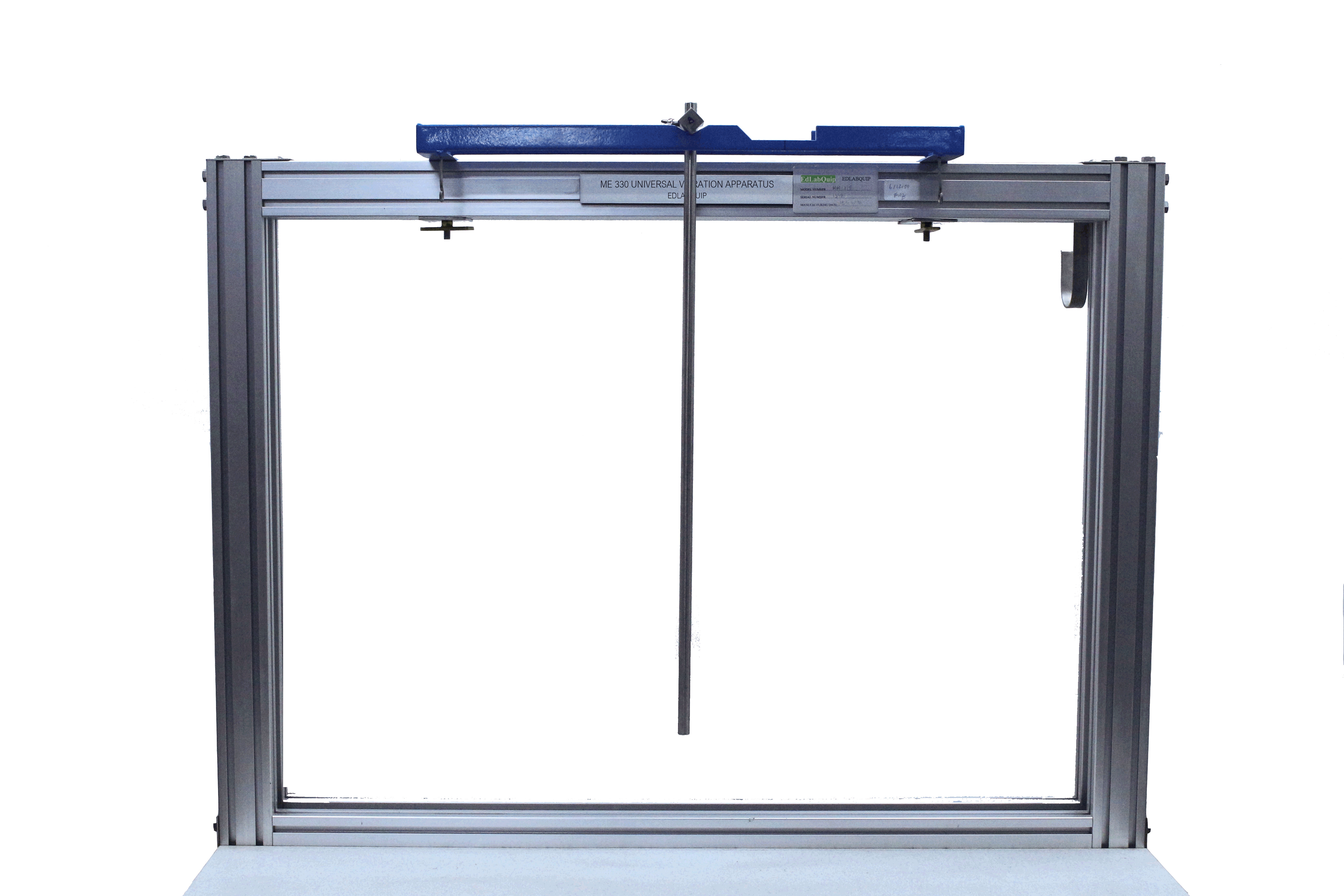

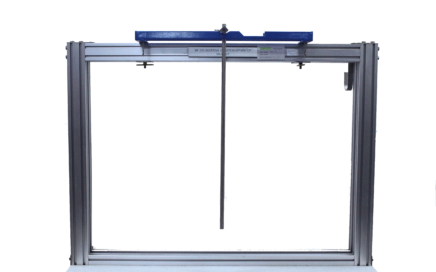

MM 320-011 Compound Pendulum | |

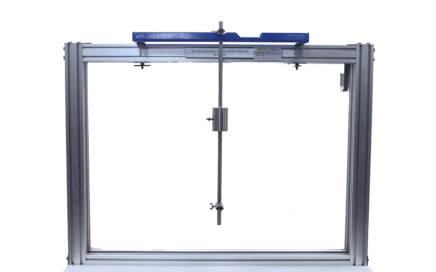

MM 320-012 Reversible Pendulum (Kater Pendulum) | |

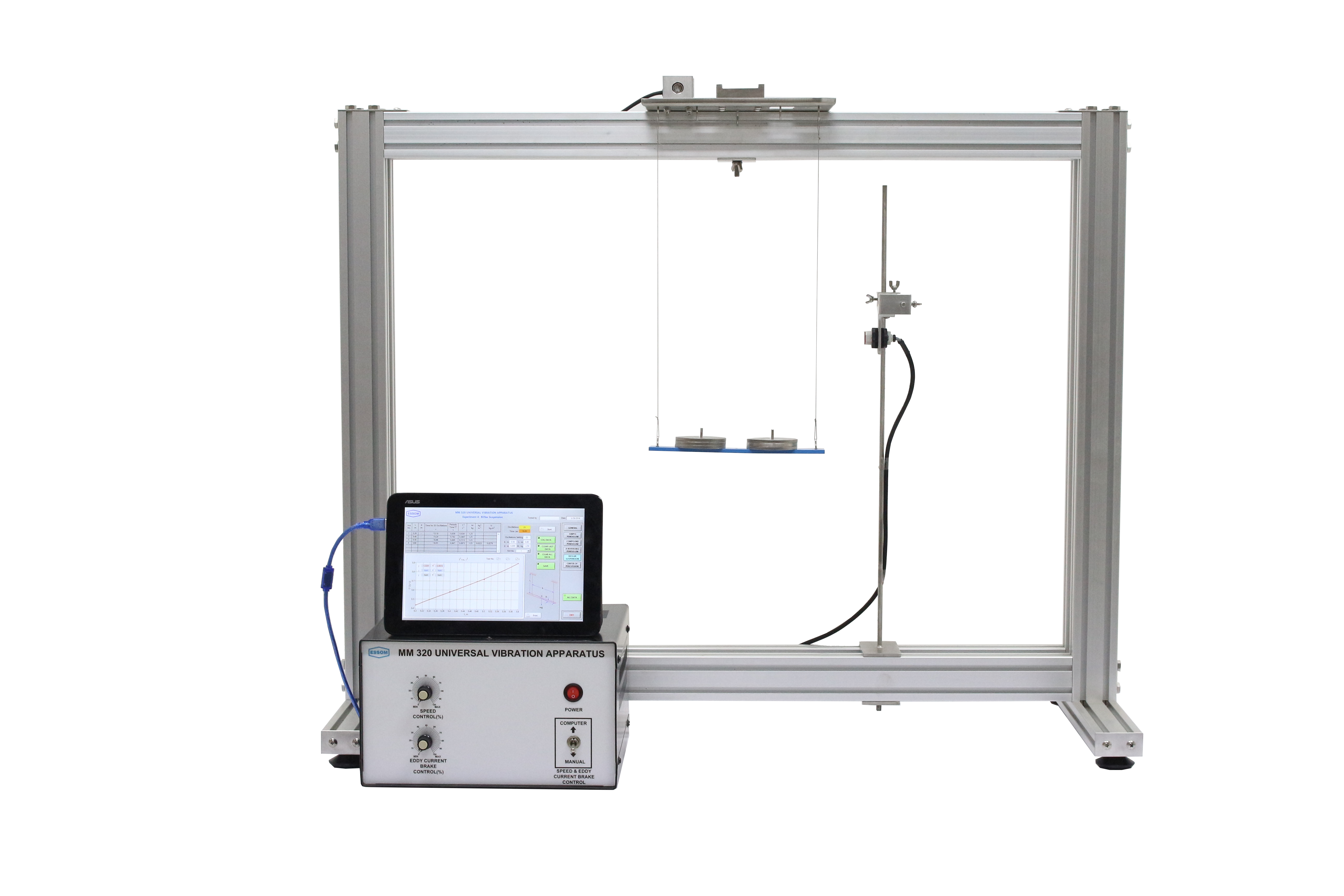

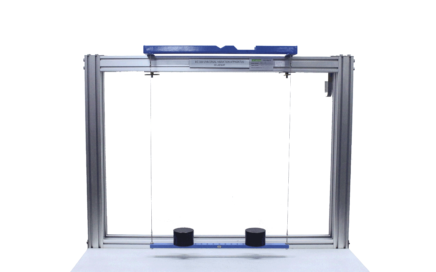

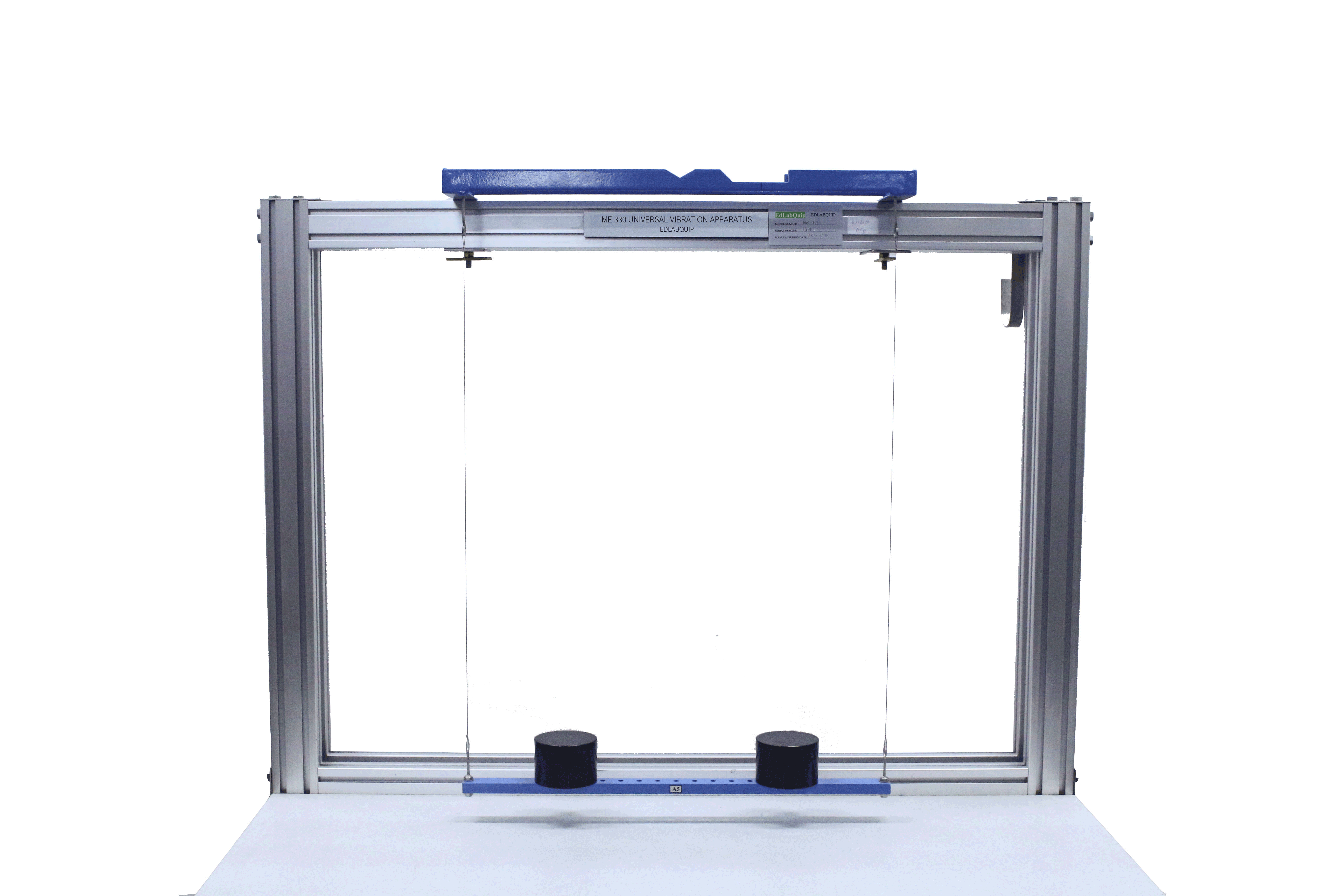

MM 320-013 Bifilar and Trifilar Suspension. | |

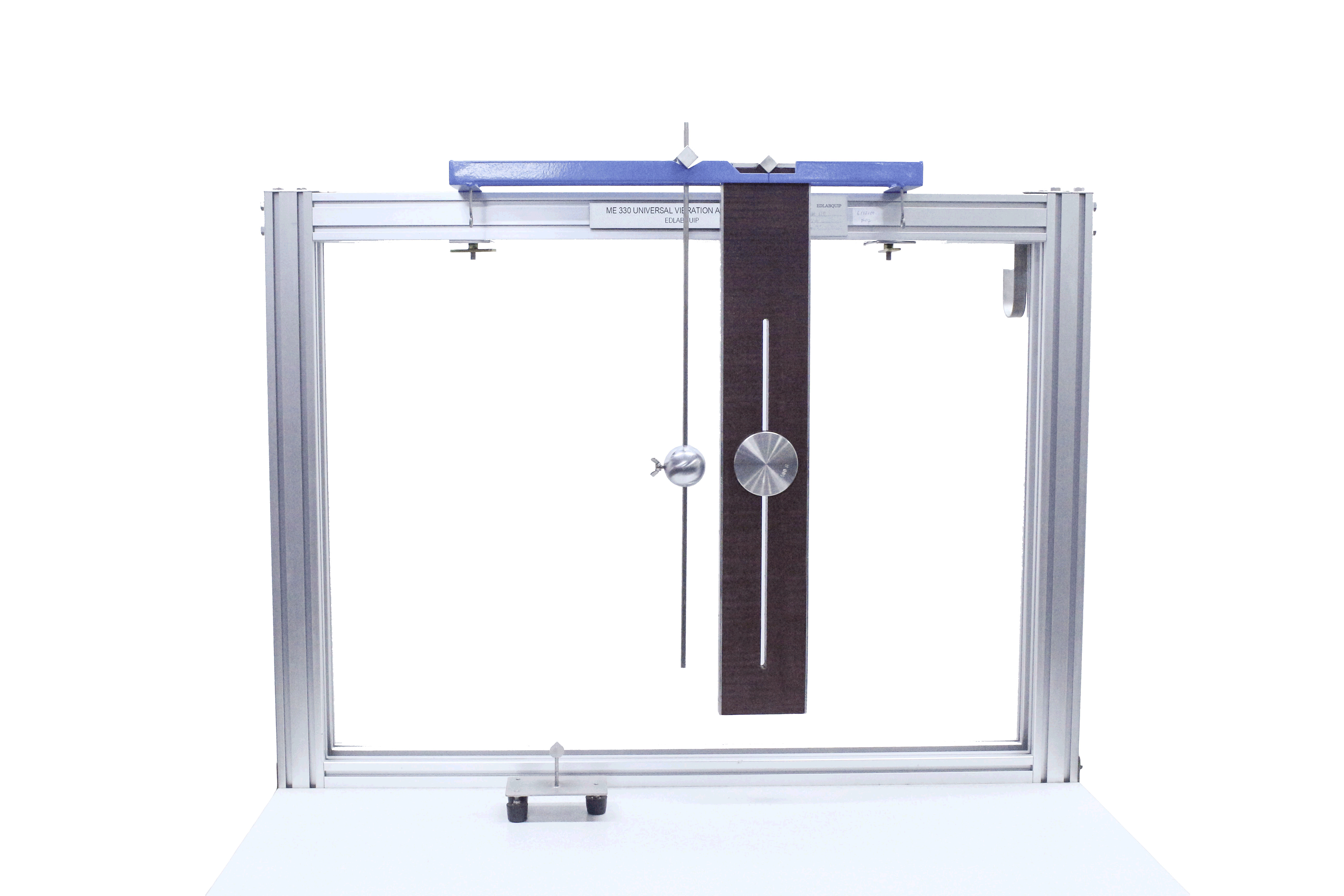

MM 320-014 Center of Percussion. | |

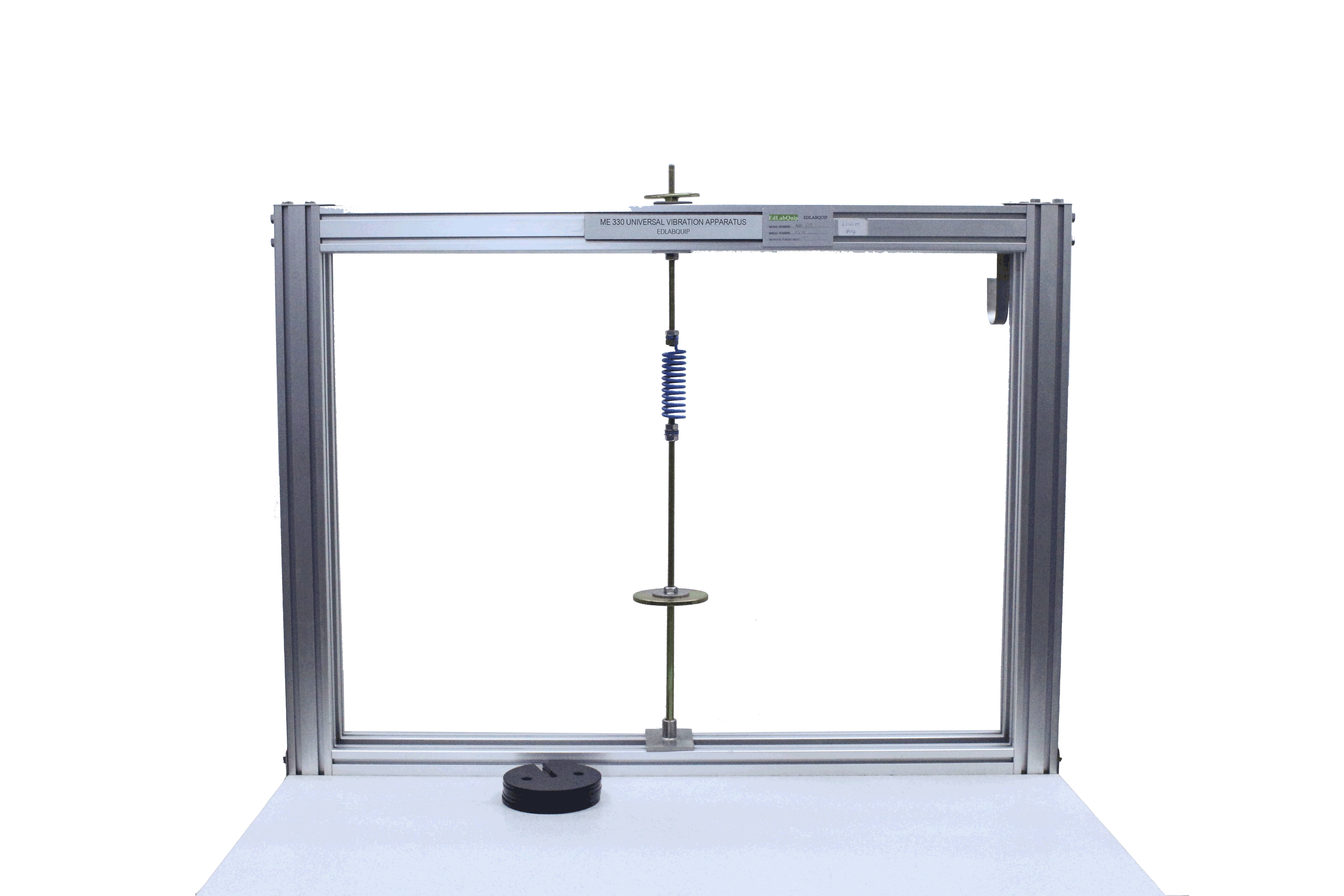

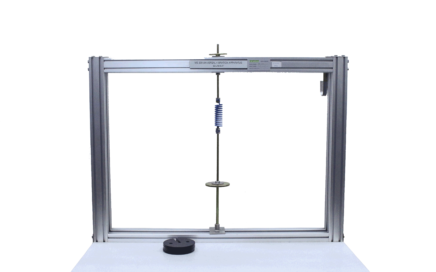

MM 320-020 Mass-spring Apparatus. | |
MM 320-030 Free Vibration Apparatus. | |

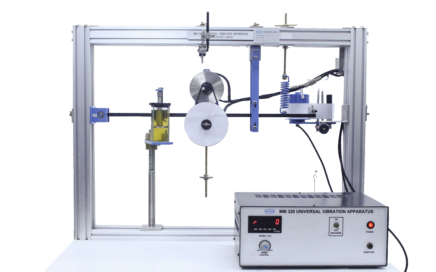

MM 320-031 Forced Vibration Apparatus. | |
MM 320-040 Lateral Vibration Apparatus. | |

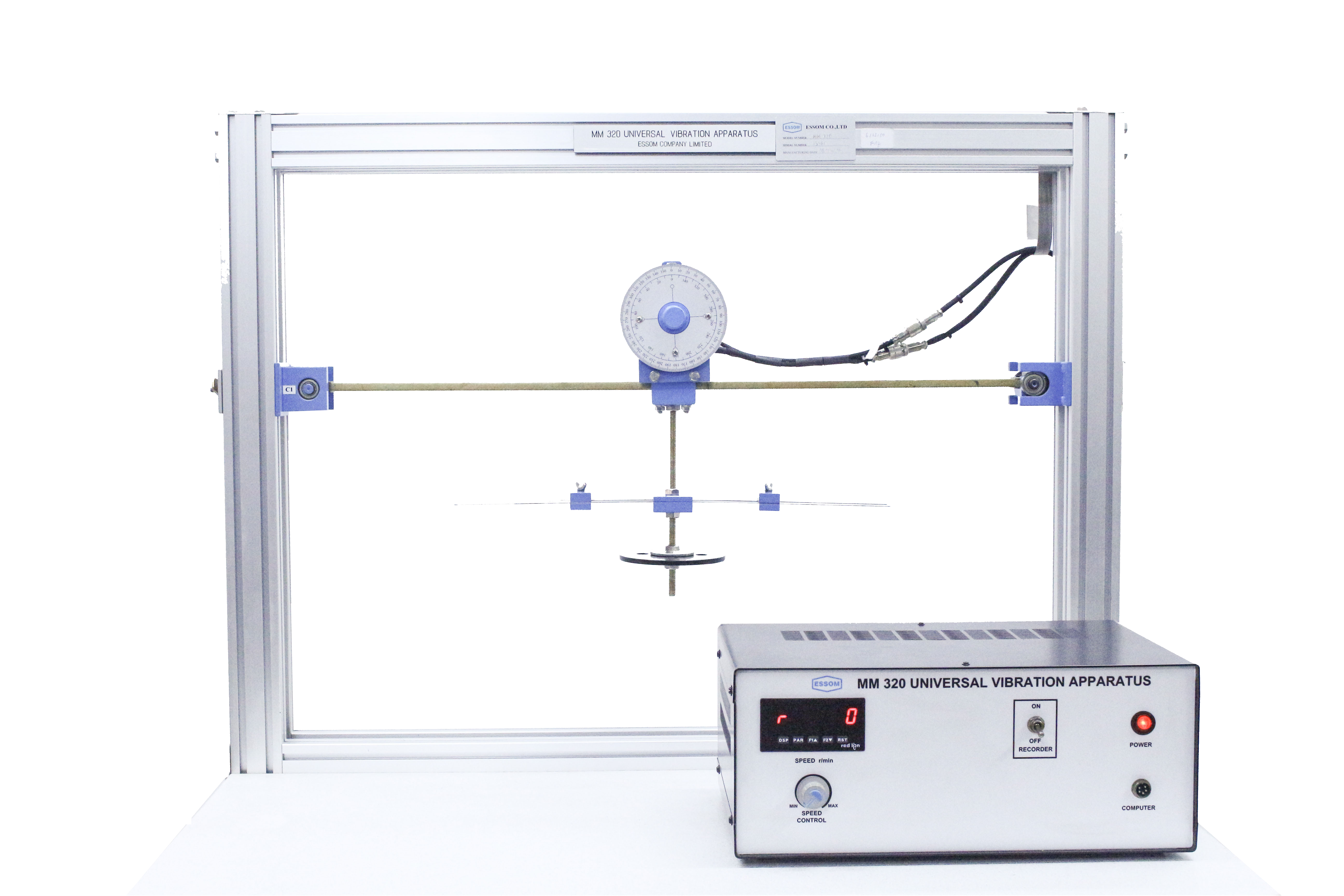

MM 320-050 Undamped Vibration Absorber. | |

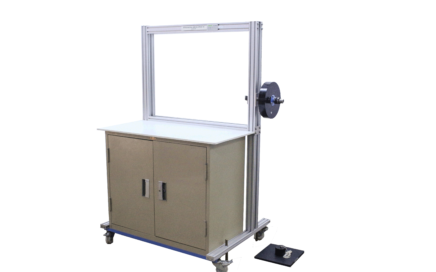

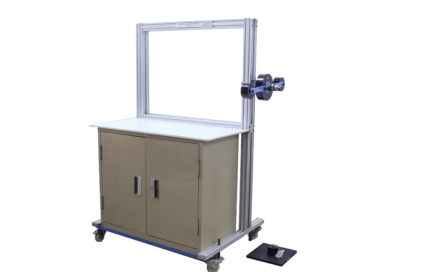

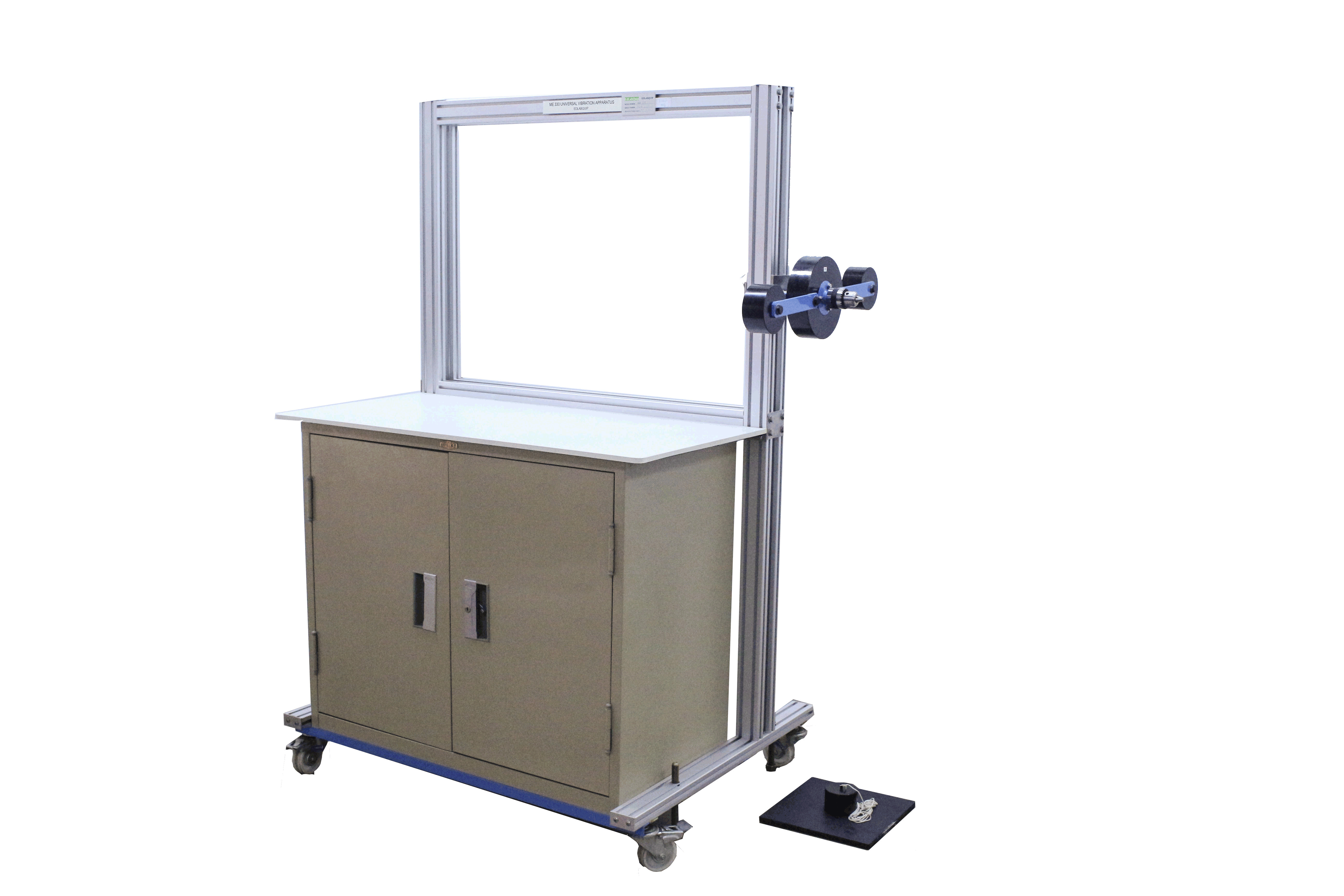

MM 320-060 Torsional Vibration Apparatus, single rotor system. | |

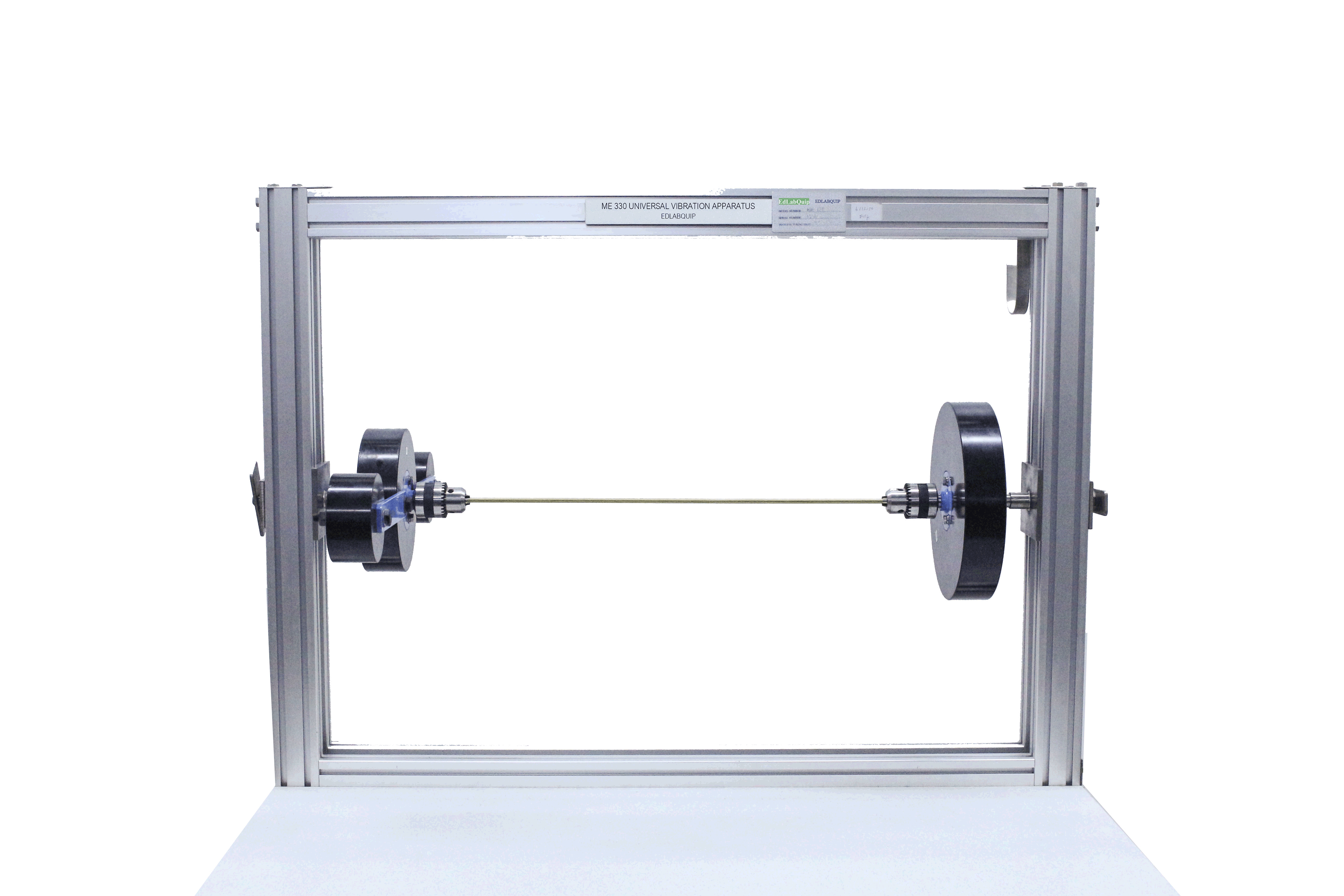

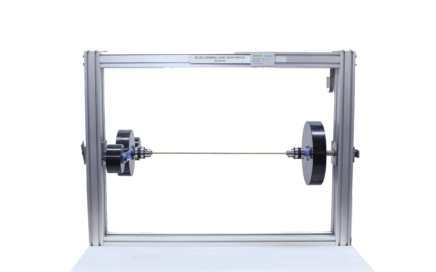

MM 320-061 Torsional Vibration Apparatus, two rotors system. | |

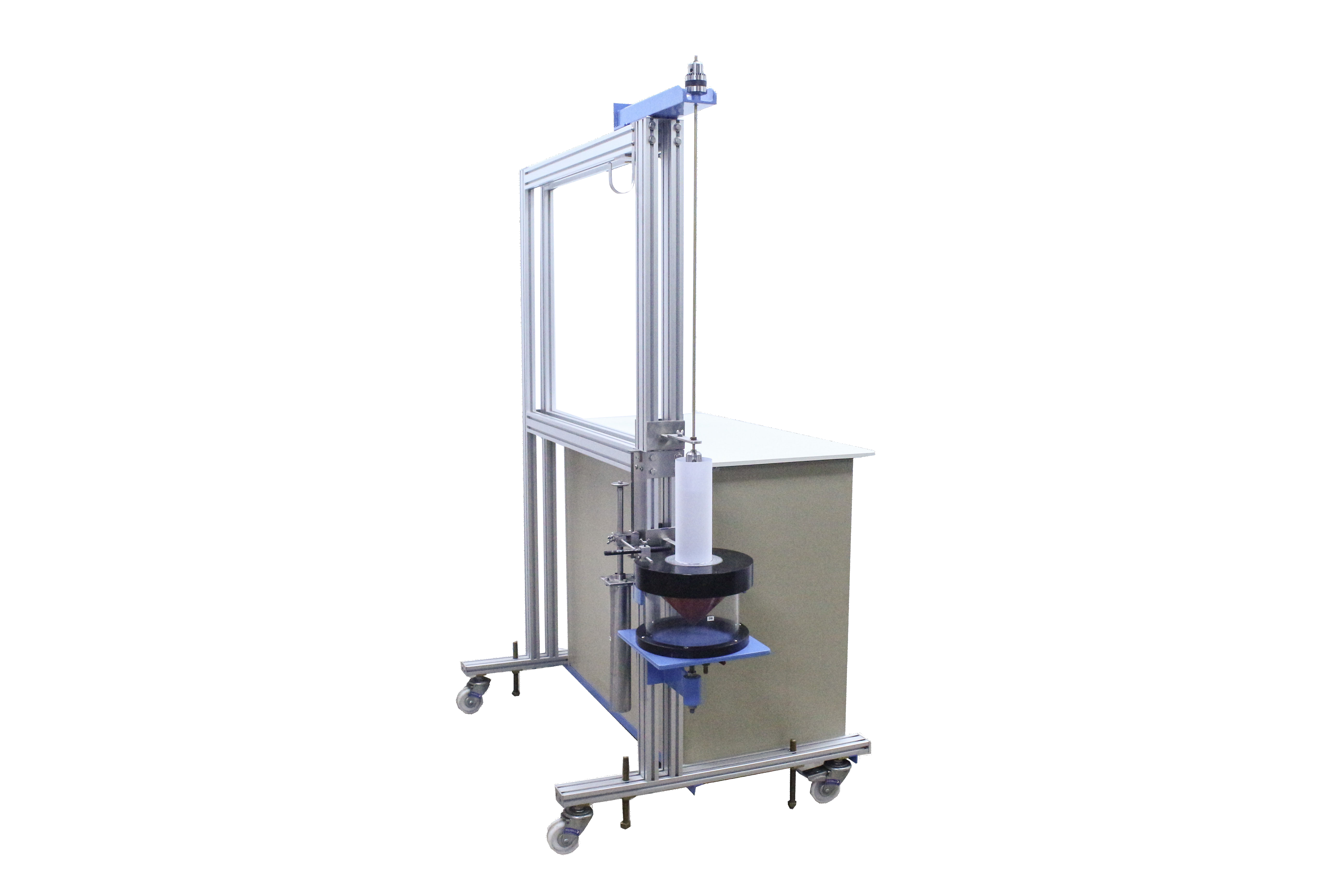

MM 320-062 Torsional Vibration Apparatus, single rotor with damping. |

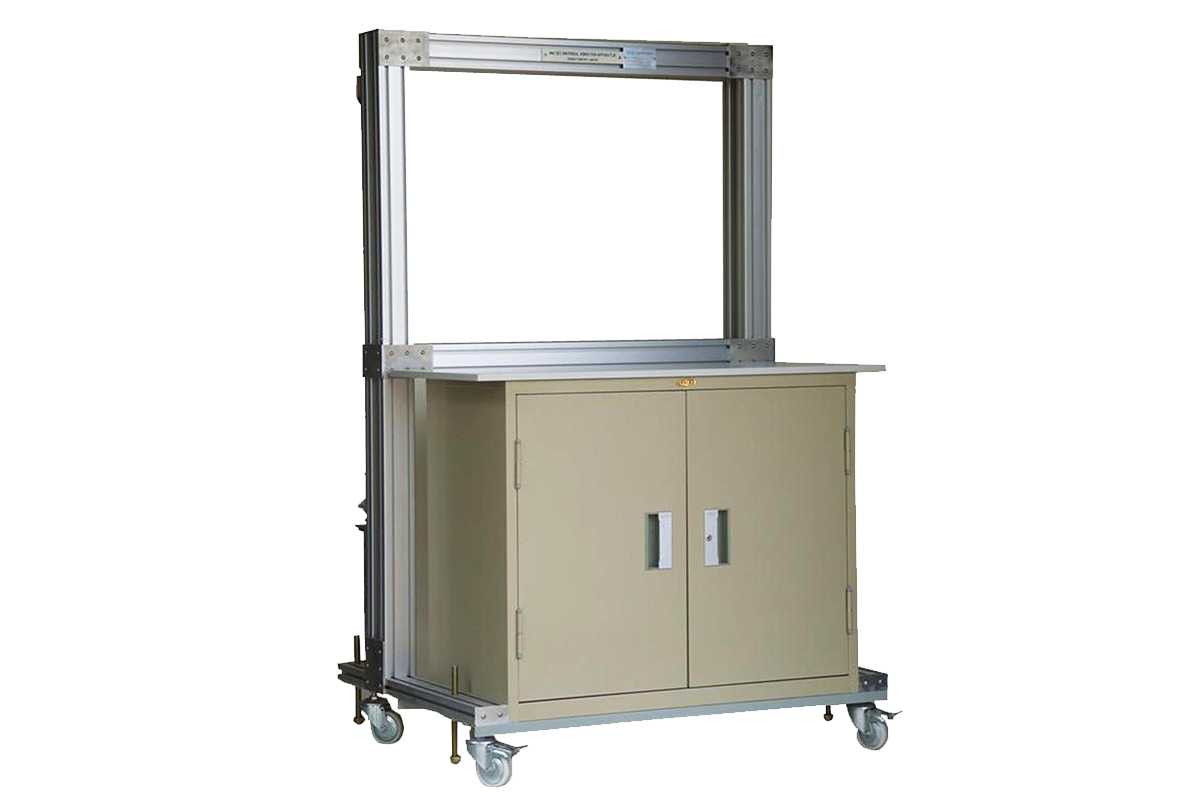

- MM 320-001 Floor Standing Basic Unit
This is a floor standing 30 x 60 mm aluminium profile twin frame on wheels
with adjustable footings and a cabinet for housing optional accessories.
The unit can be used for all vibration experiments.
- Window opening | : 900 x 650 mm |
- Net (unpacked) shipping dimensions W x L x H | : 88 x 107 x 171 cm |
- Net weight | : 68 kg |

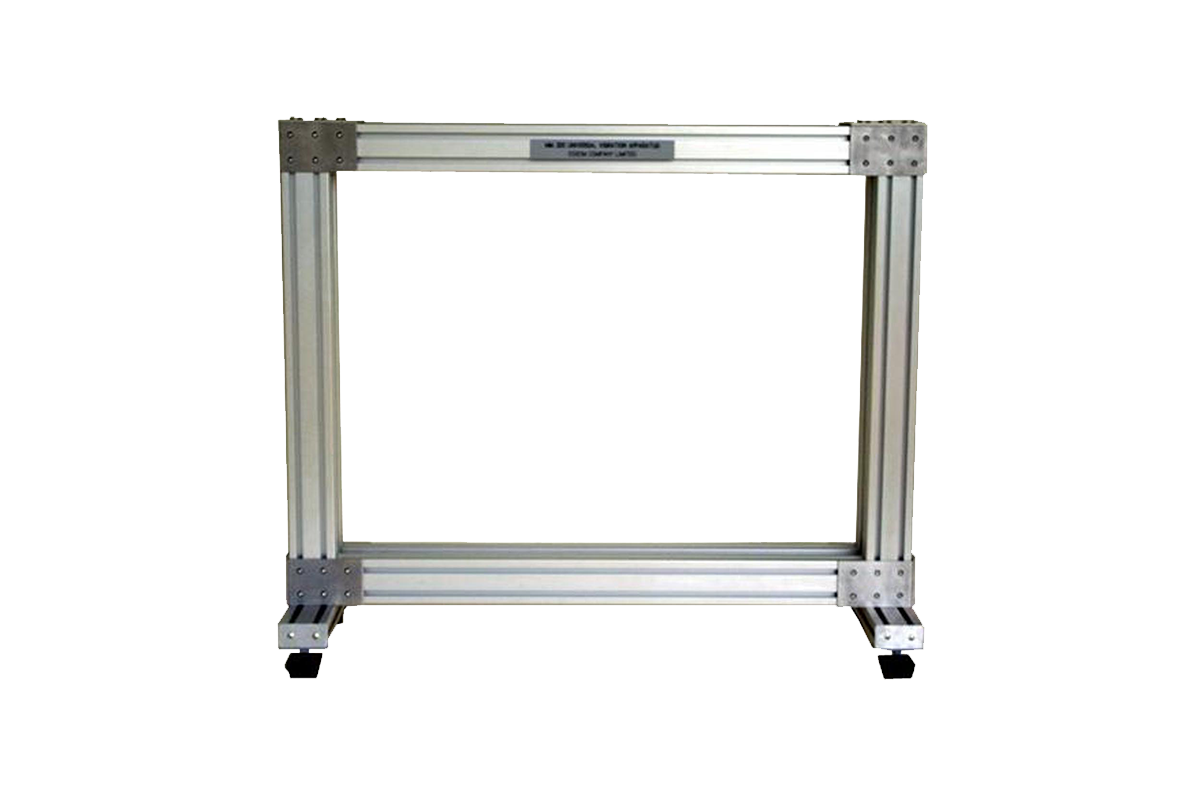

- MM 320-005 Bench Top Basic Unit
This is a bench top 30 x 60 mm aluminium profile twin frame with adjustable footings. The unit can be used for all vibration experiments except MM320-062.
- Window opening | : 900 x 650 mm |
- Net (unpacked) shipping dimensions W x L x H | : 36 x 107 x 91 cm |
- Net weight | : 22 kg |

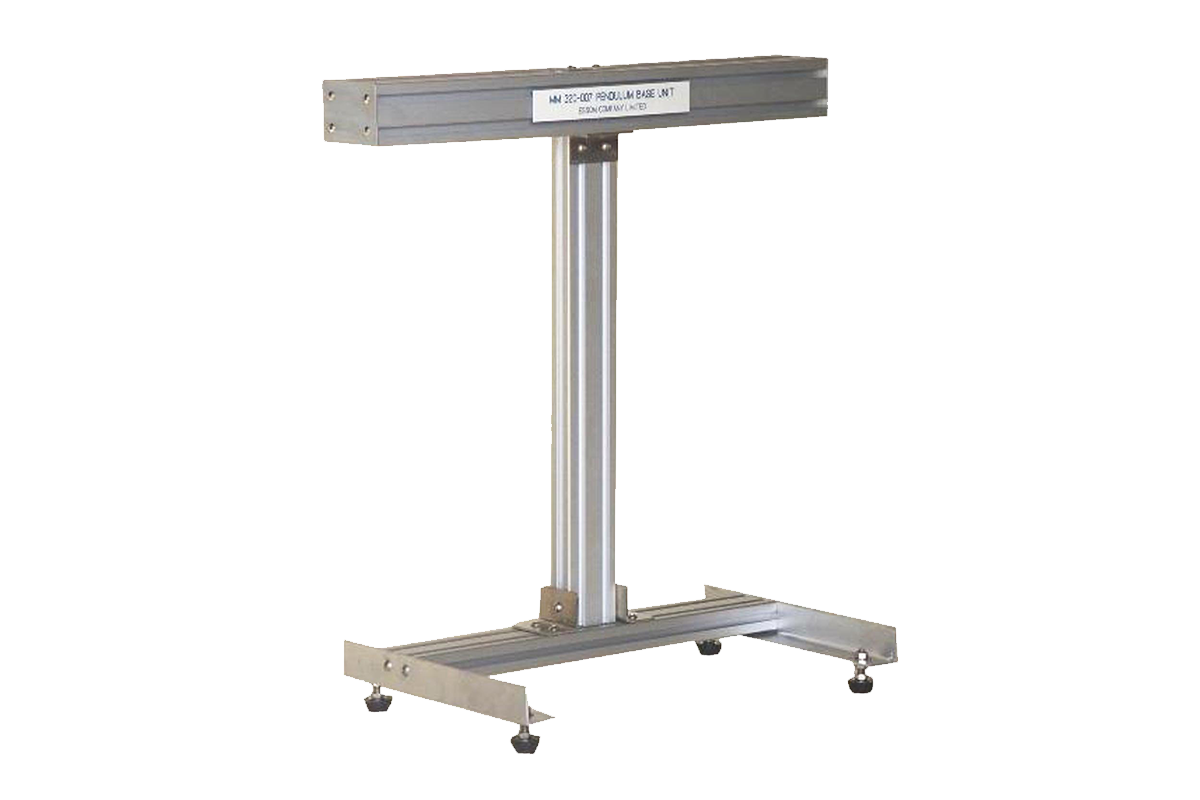

- MM 320-007 Pendulum Basic Unit
This is a bench top aluminium profile single column of 30 x 60 mm aluminium profile with adjustable footings and top attachment for pendulum experiments.
- Net (unpacked) shipping dimensions W x L x H | 31 x 56 x 15 cm |
- Net weight | : 4 kg |
- Each experiment requires several accessories to be used with the basic unit or the basic frame. Only one experiment at a time can be carried out. If several experiments are required, duplicated accessories need not be supplied.
Details of accessories are available on request.
| Learning software for the Universal Vibration Apparatus. To support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
|
| Computer Interface 1 – Beam Vibration. This includes MM320S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android) for beam vibration and mass – spring experiments.
|
| Computer Interface 2 – Torsional Vibration. This includes MM320S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android) for torsional vibration experiments.
|
| Computer Interface 3 – Pendulum. This includes MM320S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android) for pendulum experiments.
|
- Other optional equipment, please contact manufacturer ([email protected])
