Fluid Mechanic

Pump test set - HP Series

    HP-Series

Several Pump Test Sets are available for fixed speed, multi speed and variable speed control. Measuring instruments may be analog or digital and a
computer interface is provided for either data display, analysis or computer control operation. These are self-contained units for studying pump
characteristics, efficiency and flow rate vs head of pumps.

    PUMP DEMONSTRATION UNIT, COMPUTER INTERFACE

HP104 Advanced Inverter with
Computer Interface Unit

The unit consists of an advanced inverter for
controlling and indicating motor speed as well as
power. The digital display with computer interface
unit for sensors can be used for HP111, HP121,
HP131, HP141 and HP301.

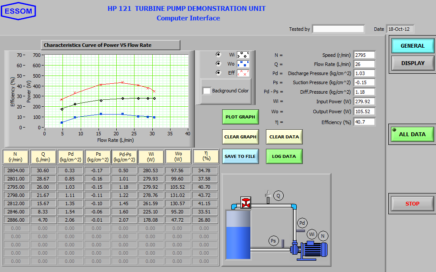

Computer Interface unit display

  A bench top unit with 0.37 kW pump and motor,
  storage tank, sensors and software.

  HP111Centrifugal Pump
  HP121Turbine Pump
  HP131Gear Pump
  HP141Reciprocating Pump
  HP301Series and Parallel Pump
HP 301

    COMPACT PUMP TEST SET, 0.24-0.37 kW

NAME

Fixed speed (HP115)
Variable speed (HP115V)
Multi speed (HP115M)

Centrifugal Pump
Turbine Pump
Gear Pump
Reciprocating Pump
Series and Parallel Pump

HP115
HP125
HP135
HP145
–

HP115V
HP125V
HP135V
HP145V
HP305V

HP115M
–
–
–
HP305M

HP405B Compact Multi Pump Test Set, Inverter Speed Control

HP305V Compact Series and Parallel Pump Test Set, Variable Speed

HP305M Compact Series and Parallel Pump Test Set, Multi Speed

    PUMP TEST SET WITH TRUE PUMP INPUT POWER, 0.55 kW

These are self-contained bench top units for studying pump characteristics, efficiency and the flow rate vs head of pumps. Each pump will be driven by a motor dynamometer for measuring true pump input power. Speed control is done by an inverter.

HP113 Compact Centrifugal Pump Test Set, Motor Dynamometer

HP303 Compact Series and Parallel Pump Test Set, Motor Dynamometer

HP405 Compact Multi Pump Test Set, Motor Dynamometer

    PUMP TEST SET, 1.1-kW

These are self-contained floor standing units

HP119V Centrifugal Pump Test Set, Variable Speed

HP309V-1

HP309V Series and Parallel Pump Test Set, Variable Speed
