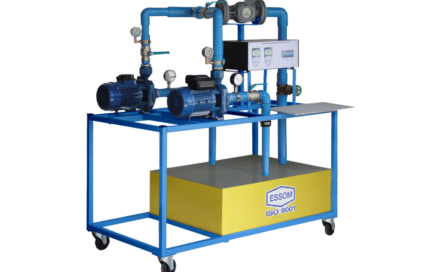

HP 309V SERIES AND PARALLEL PUMP TEST SET, Variable Speed

Enquiry

Video

Download

This is a self contained unit for studying the series and parallel pump characteristics.

The unit consists of two sets of centrifugal pump and motor, a storage tank, and measuring instruments. Speed control is by two advanced inverters. By manipulating flow control valves, each pump can be operated individually or both pumps connected in series or parallel. The unit is on wheels.

Instruction manual is also included.

  • Flow rate vs head at various speeds for individual pump

  • Flow rate vs head at a fixed speed for two pumps connected in series or parallel

  • Power input, output and true efficiency at various speeds for individual pump and two pumps connected in series or parallel

  • Pump

- Maximum flow rate:  150 LPM
- Maximum head:  30 m water
  • Speed control
:  Advanced inverters
  • Water storage tank
:  1
  • Flow control
:  A set of piping with valves to operate the two pumps individually, in series or parallel
  • Measuring instruments

- Pressures:  Pressure gauges at pump suction and discharge
- Flow rate:  Water meter and stop watch
- Pump speed and motor input power: Advanced inverters
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 75 x 135 x 155 cm
  • Net Weight:  Approx. 175 kg
  • HP309VS
Learning Software
                               to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • HP309-002A
Two sets of motor dynamometer with an inverter, torque and speed digital display instead of two advanced inverters.
  • HP309-050
Computer Interface (Two pumps) (computer not included)
 This includes HP309VS and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • Pump of different characteristic curve can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])
HP309VSLearning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
