HP 115V COMPACT CENTRIFUGAL PUMP TEST SET, Variable Speed

Enquiry

Video

Download

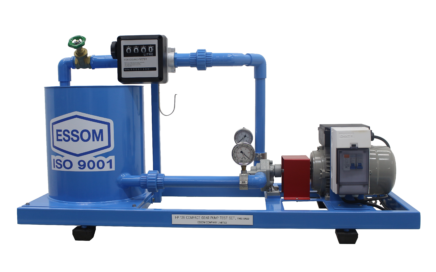

This is a self-contained bench top unit for studying the centrifugal pump flow rate vs head at various speeds.

The unit consists of a storage tank and a centrifugal pump with motor on a steel base, advanced inverter and measuring instruments.

Instruction manual is also included.

  • Flow rate vs head at various speeds

  • Pump input, output and overall efficiency at various speeds

  • Pump

-  Maximum flow rate:  80 LPM
-  Maximum head:  18 m water
  • Water storage tank
:  1
  • Speed control
:  Advanced inverter.
  • Measuring instruments

-  Pressure:  Pressure gauges at pump suction and discharge
-  Flow rate:  Water meter and stop watch

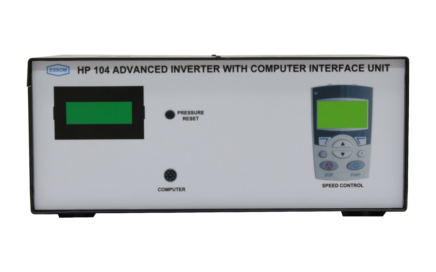

-  Speed and motor input power display:  Advanced inverter
  • Power supply
:  220 V, 1 Ph, 50Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: :  50 x 108 x 70 cm
  • Net Weight:  Approx. 30 kg
  • HP115VS
Learning Software
 to support both online/offline training with data calculation   and analysis by manual data entry from analog measuring instruments.
HP115VS          Learning Software
 to support both online/offline training with data calculation   and analysis by manual data entry from analog measuring instruments.
