FLUID MECHANICS > Pump test set

HP 121 TURBINE PUMP DEMONSTRATION UNIT, Computer Interface

Enquiry

Video

Download

This is a bench top unit for studying the turbine (regenerative) pump characteristics with data display and analysis by computer.

The unit consists of an industrial turbine pump with a motor, a PVC storage tank on a steel base, software and sensor.

HP 104 Advanced inverter with computer interface unit is required but separately supplied.

Instruction manual is also included.

  • Flow rate vs head at various speeds

  • Pump input, output and overall efficiency at various speeds

  • Pump

-  Maximum flow rate:  35 LPM
-  Maximum head:  30 m water
  • Water storage tank
:  1
  • Speed control
: HP104 (separately supplied)
  • Sensors with digital display
:  Pressures for pump suction and discharge
 :  Speed and motor input power
 :  Flow rate

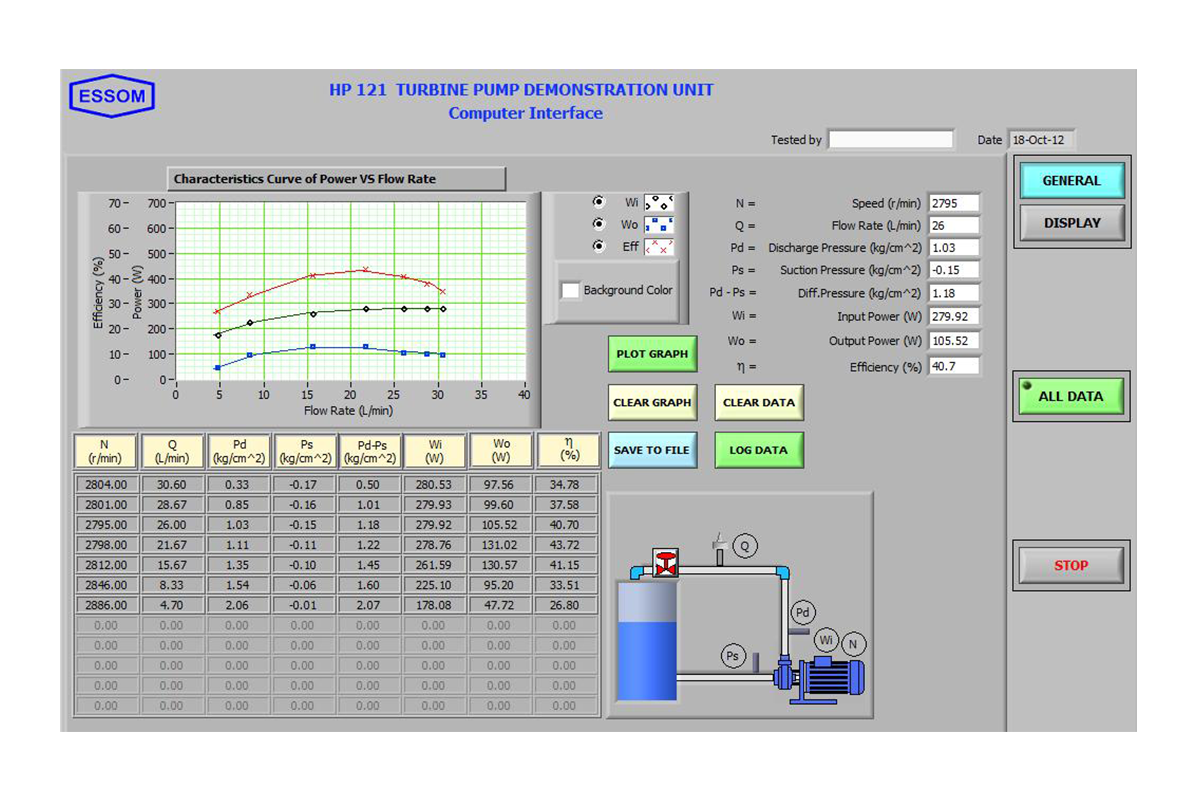

  • Software for data display and analysis by computer (separately supplied)

  • WiFi feature for data logging and/or real-time display remotely on smartphone (iOS and Android).

  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 108 x 75 cm
  • Net Weight:  Approx. 38 kg
  • Net Weight: Approx. 40 kg with HP 121-060
  • HP016
Water temperature digital display
  • HP104
Advanced inverter with computer interface unit (required accessory)
  • HP121-060
Computer Control (computer not included)
 This includes HP 121-050 with the additional accessories for control function and additional software function for equipment controls by computer
