Fluid Mechanic

Turbine test set - HT Series

    HT-Series

Several sizes of turbine test sets are available for mini, compact and large units. The turbine test sets are also offered as self-contained analog sets or
computer interface sets where several types of turbines will be placed on a water supply unit with measuring instruments equipped. These instruments
may be analog or digital. A computer interface is provided for either data display, analysis, or computer control operation.
These units are used to study torque, power output, efficiency under various flow rates and heads including racing characteristics of each turbine.

    MINI TURBINE DEMONSTRATION UNIT

Each turbine unit with maximum output 15-40 W is supplied with speed and torque sensors. It is designed to be used with HT110 Mini Turbine Service unit. Several types of turbines can be alternatively placed on a common water supply with central and measuring instruments.

HT110 Turbine Service Unit
HT151A Mini Axial Flow Propeller Turbine Demonstration Unit, Computer Interface
HT121 Mini Pelton Turbine Demonstration Unit, Computer Interface
HT131 Mini Francis Turbine Demonstration Unit, Computer Interface
HT151AI Mini Axial Flow Impulse Turbine Demonstration Unit, Computer Interface
HT161 Mini Kaplan Turbine Demonstration Unit, Computer Interface

    MINI TURBINE TEST SET, 15-40 W

HT201 Mini Pelton Turbine Test Set

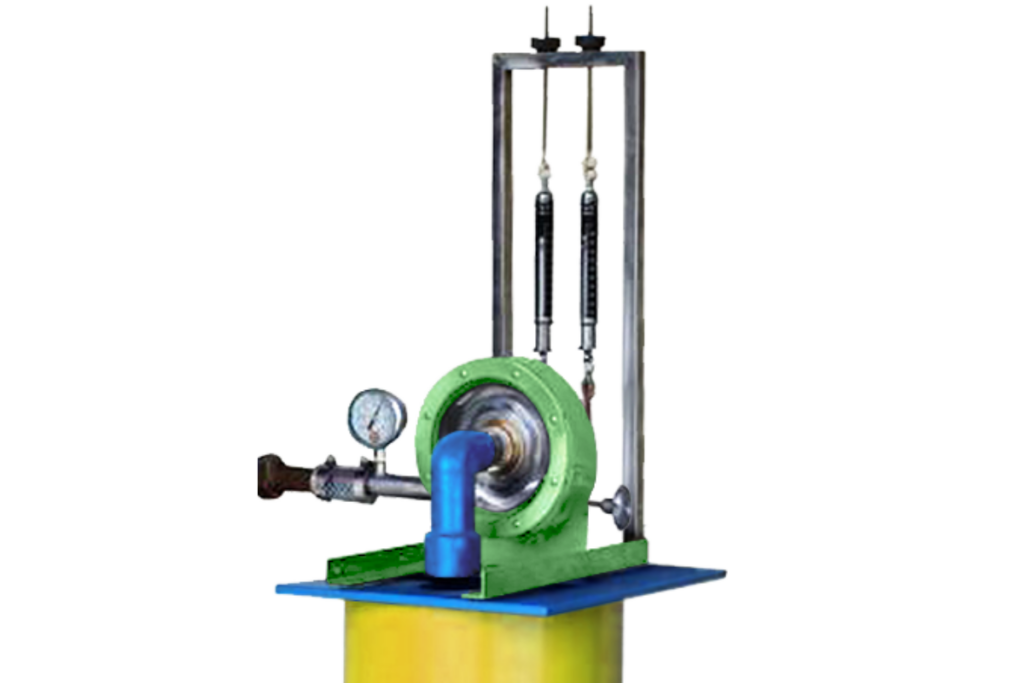

HT301 Mini Francis Turbine Test Set

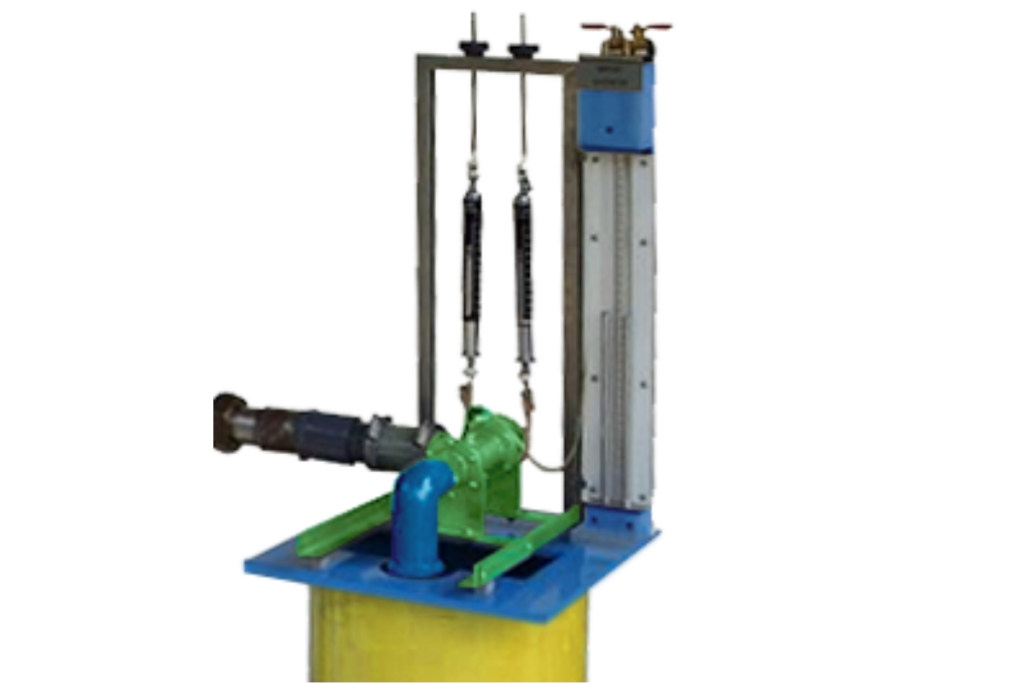

HT501A Mini Axial Flow Propeller Turbine Test Set

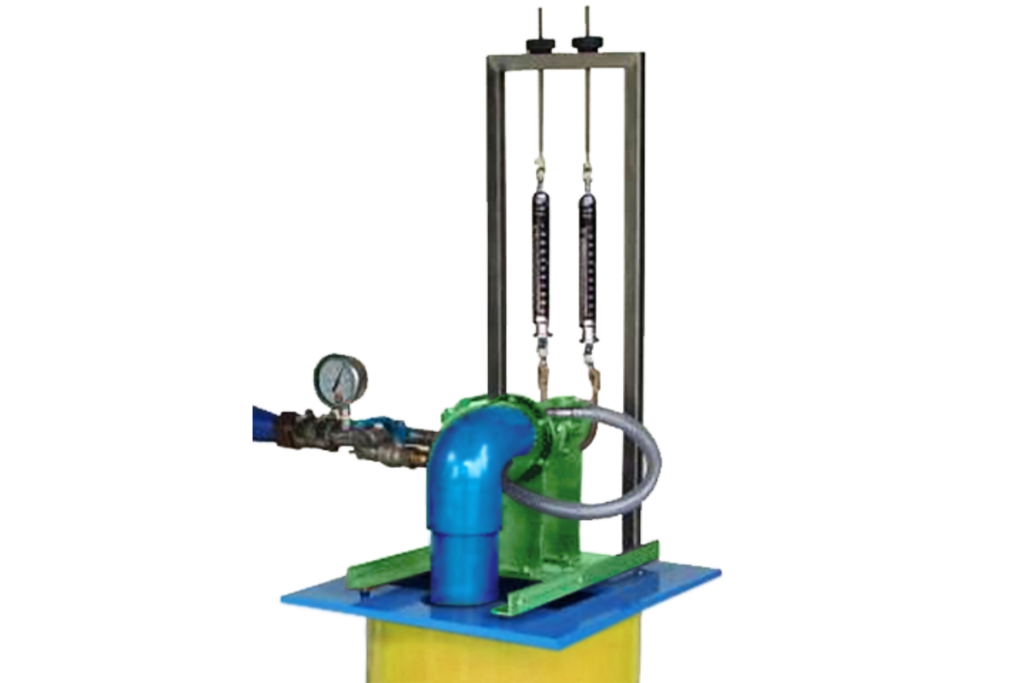

HT501AI Mini Axial Flow Impulse Turbine Test Set

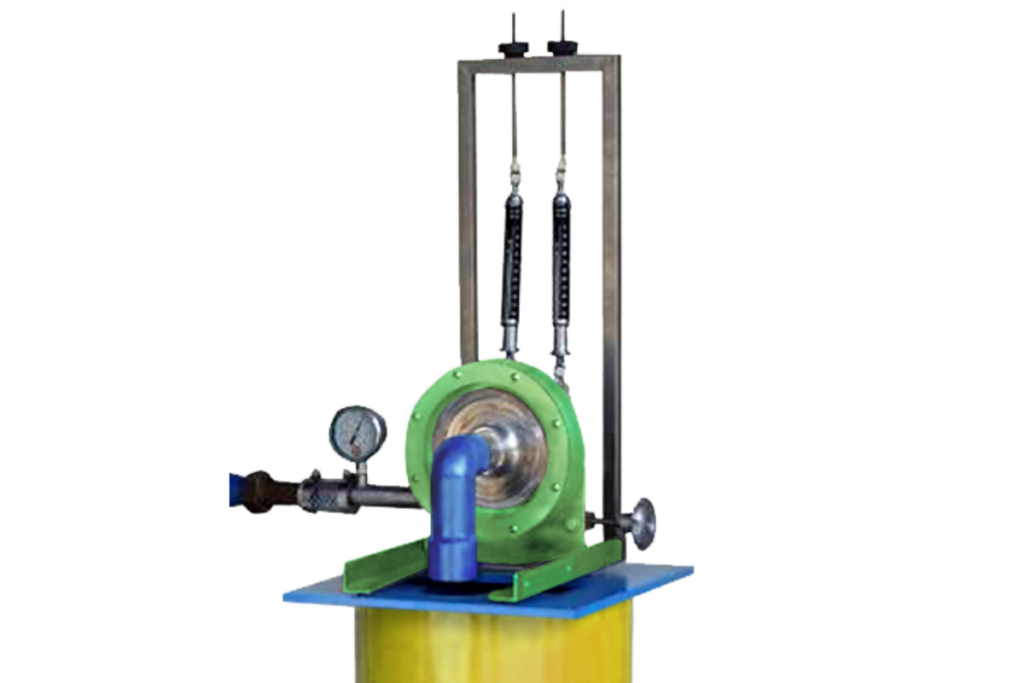

HT601 Mini Kaplan Turbine Test Set

    COMPACT TURBINE TEST SET, 400-450 W

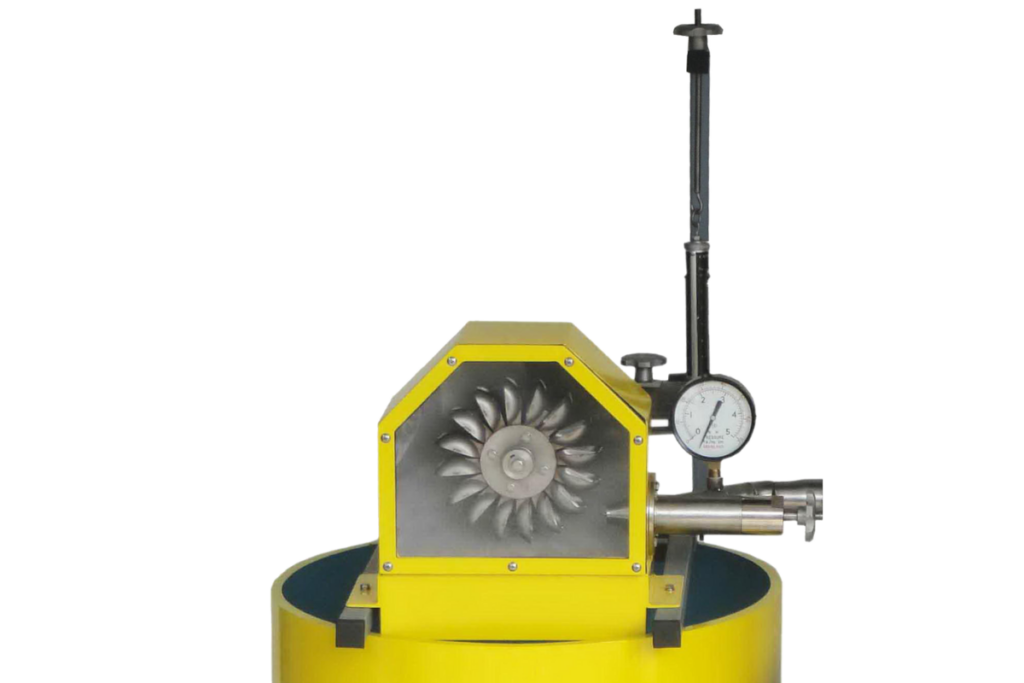

HT203 Compact Pelton Turbine Test Set

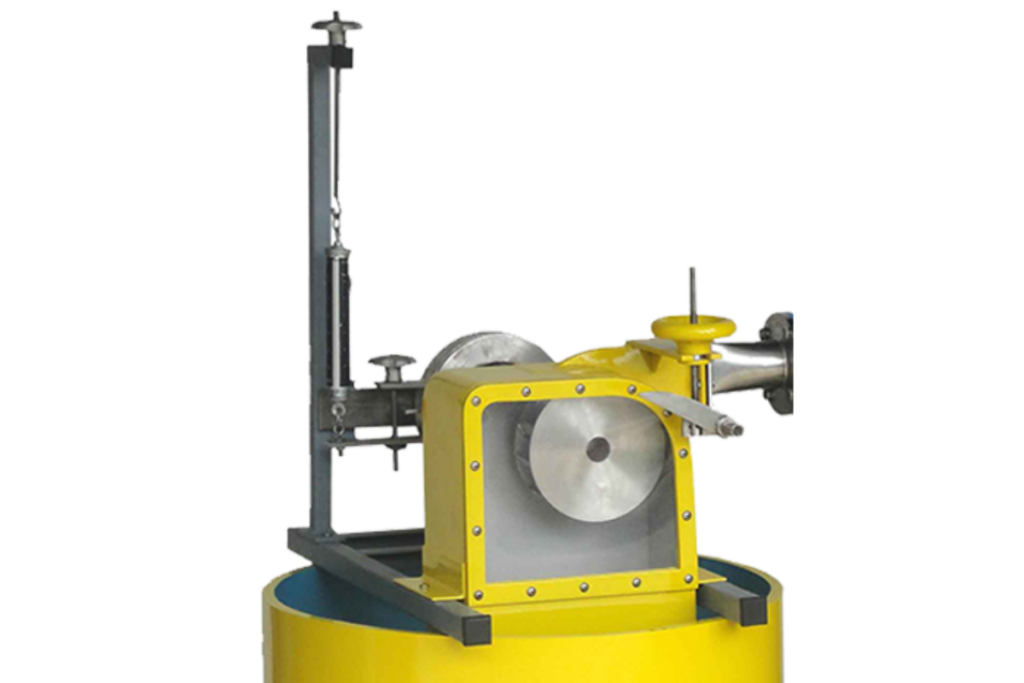

HT403 Compact Cross Flow Turbine Test Set

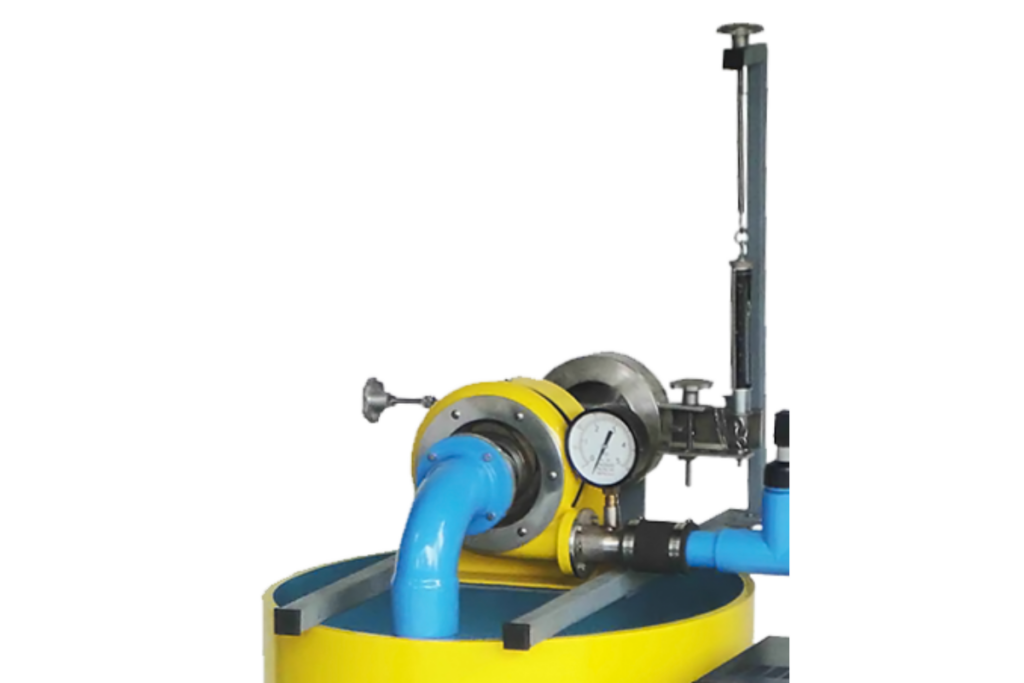

HT603 Compact Kaplan Turbine Test Set
HT303 Compact Francis Turbine Test Set

      LARGE TURBINE TEST SET, 800 – 2,000 W

HT310 Francis Turbine Test Set

Stainless steel runner. Bronze casing with adjustable guide vanes and transparent window to observe runner and guide vane position.

HT210 Pelton Turbine Test Set
HT310 Francis Turbine Test Set
HT410 Cross Flow Turbine Test Set

      MULTI TURBINE TEST SET

HT701 Mini Pelton/ Francis Turbine Test Set
HT702 Compact Pelton/ Francis Turbine Test Set
HT703 Multi Turbine Test Set (3 or 4 Turbines)
