HT 701 MINI PELTON/FRANCIS TURBINE TEST SET

Enquiry

Download

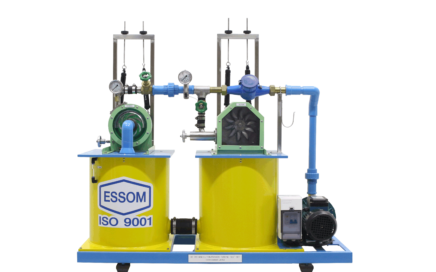

This is a self contained bench top set of Pelton and Francis turbines, designed for studying the turbine characteristics under various flow rates and heads.

The unit consists of a pump, a storage tank on a steel base, a mini Pelton and a mini Francis turbine connected in parallel, a dynamometer for each turbine, and measuring instruments.

Instruction manual is also included.

Each turbine can be tested on the following:

  • Torque vs speed at various heads and flow rates
  • Power output vs speed for various heads and flow rates
  • Efficiency vs speed for a given head and flow rate
  • Racing characteristics.
  • Mini Pelton turbine:

- Construction

:  Stainless steel runner shaft and casing with transparent window

- Ratings:  Maximum power over 40 W
  • Mini Francis turbine:

- Construction:  Bronze runner
 :  Adjustable guide vanes. Non corrosion metal casing with transparent window to observe guide vane position
- Ratings:  Maximum power over 25 W
  • Pump ratings

- Motor   :  0.55 kW
  • Water storage tank
:  1
  • Dynamometer
:  Mechanical brake
  • Measuring instruments

- Torques:  Spring balances
- Speeds:  Portable tachometer
- Flow rate:  Water meter and stop watch
- Pressures:  Pressure gauges at turbine inlets
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 45 x 110 x 110 cm
  • Net Weight:  Approx. 90 kg
  • HT701S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring
  • HP0089
A pressure gauge at pump inlet for pump pressure vs flow rate curve
  • HT010R
Electric generator with voltage and current digital display and resistive load
  • HT701-601
Mini Kaplan turbine unit
 - Maximum power over 15 W
 - Metal runner, adjustable guide vanes
 - Stainless steel shaft
 - Non-corrosion metal casing with transparent window
 - Storage tank, plastics.

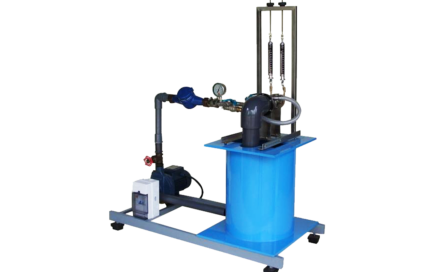

  • HT701-501AI
Mini Axial flow impulse turbine unit
 - Maximum power over 25 W
 - Metal runner
 - Stainless steel twin nozzles
 - Stainless steel shaft
 - Stainless steel casing with transparent discharge window
 - 30 L storage tank, plastics.
  • HT701-050
Computer Interface (computer not included)

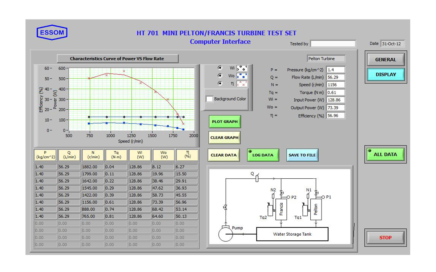

 This includes HT701S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT701-060
Computer Control (computer not included)
                                                This includes HT 701-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT701S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
