HT 203 COMPACT PELTON TURBINE TEST SET

Enquiry

Video

Download

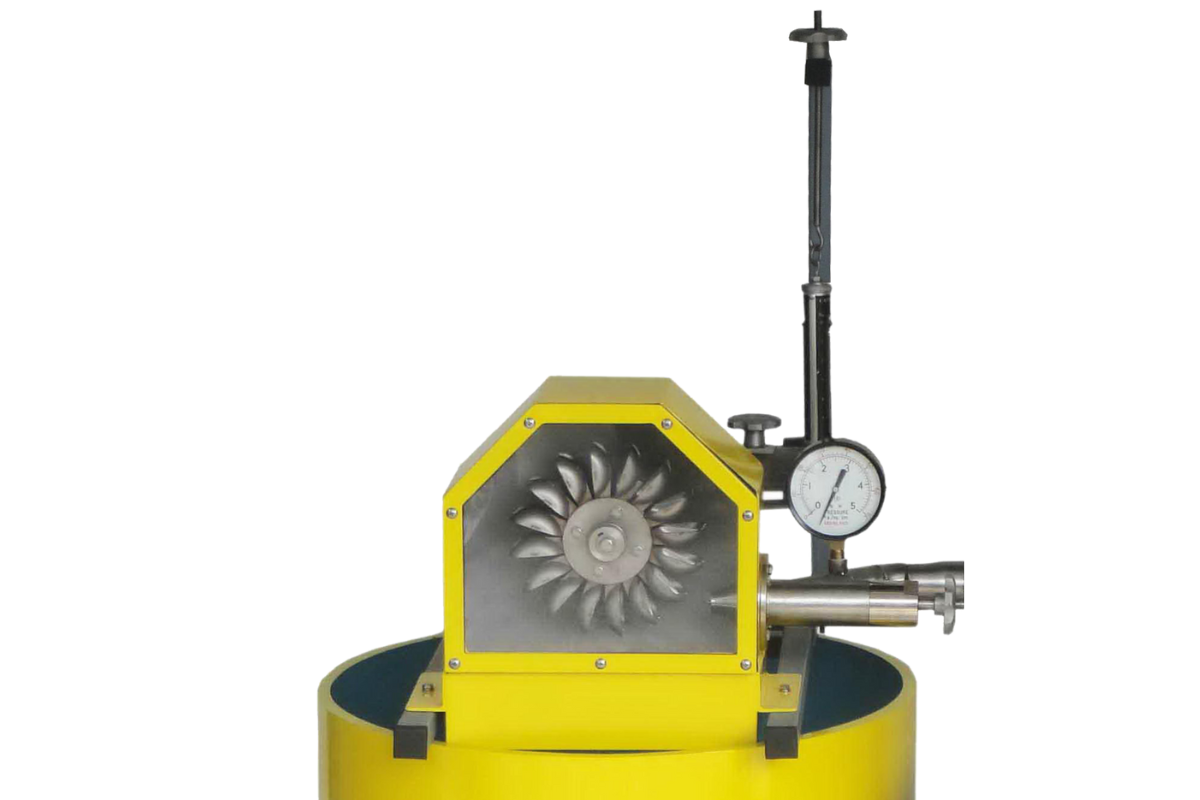

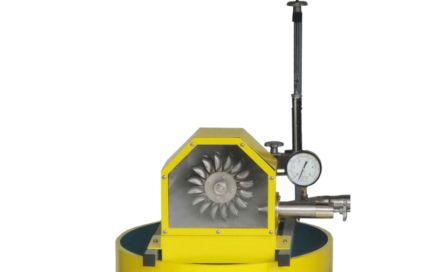

This is a self contained bench top set for studying the   Pelton turbine characteristics under various flow rates     and heads.

The unit consists of a storage tank, a pump, a Pelton turbine, a dynamometer, and measuring instruments.

The adjustable nozzle directs the water jet to the runner buckets.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Racing characteristics

  • Turbine
- Construction :  Stainless steel runner, nozzle, and casing with transparent window
- Ratings :  Over 400 W of brake power
  • Pump ratings
- Motor : 2.2 kW
  • Dynamometer
: Water cooled mechanical brake absorber with anti splashing system
  • Water storage tank
:  1
  • Measuring instruments
- Torque :  Spring balances
- Pressure :  Pressure gauge
- Sensors with digital display :  Flow rate and speeds
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 76 x 140 x 90 cm
  • Net Weight:  Approx. 125 kg
HT203SLearning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • HD160SA
Water brake absorber instead of mechanical brake absorber
  • HP003

Advanced inverter for controlling and indicating motor speed as well as for calculating motor input power.

Hence pump efficiency at various speeds can be determined.

  • HP011A
Pressure digital display instead of pressure gauge
  • HP012A
Torque digital display instead of spring balance
  • HT011R
Electric generator with voltage and current digital display, and resistive loads
  • HT203-050
Computer Interface (computer not included)

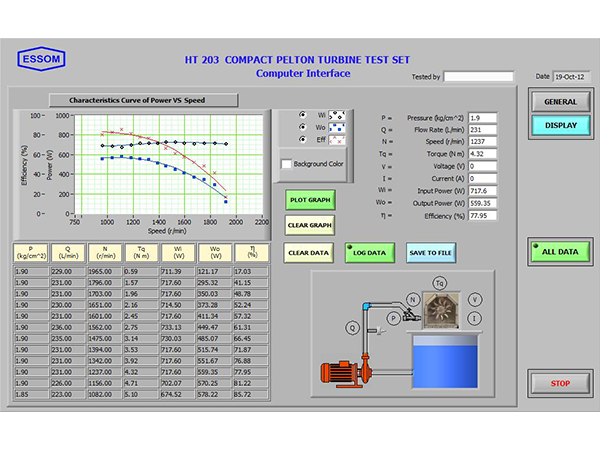

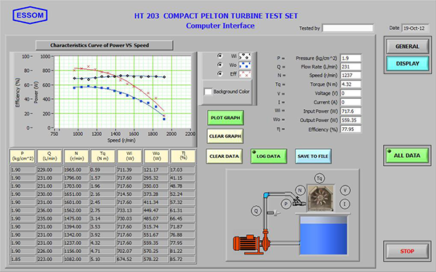

 This includes HT203S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT203-060
Computer Control (computer not included)
                                     This includes HT 203-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT203S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
