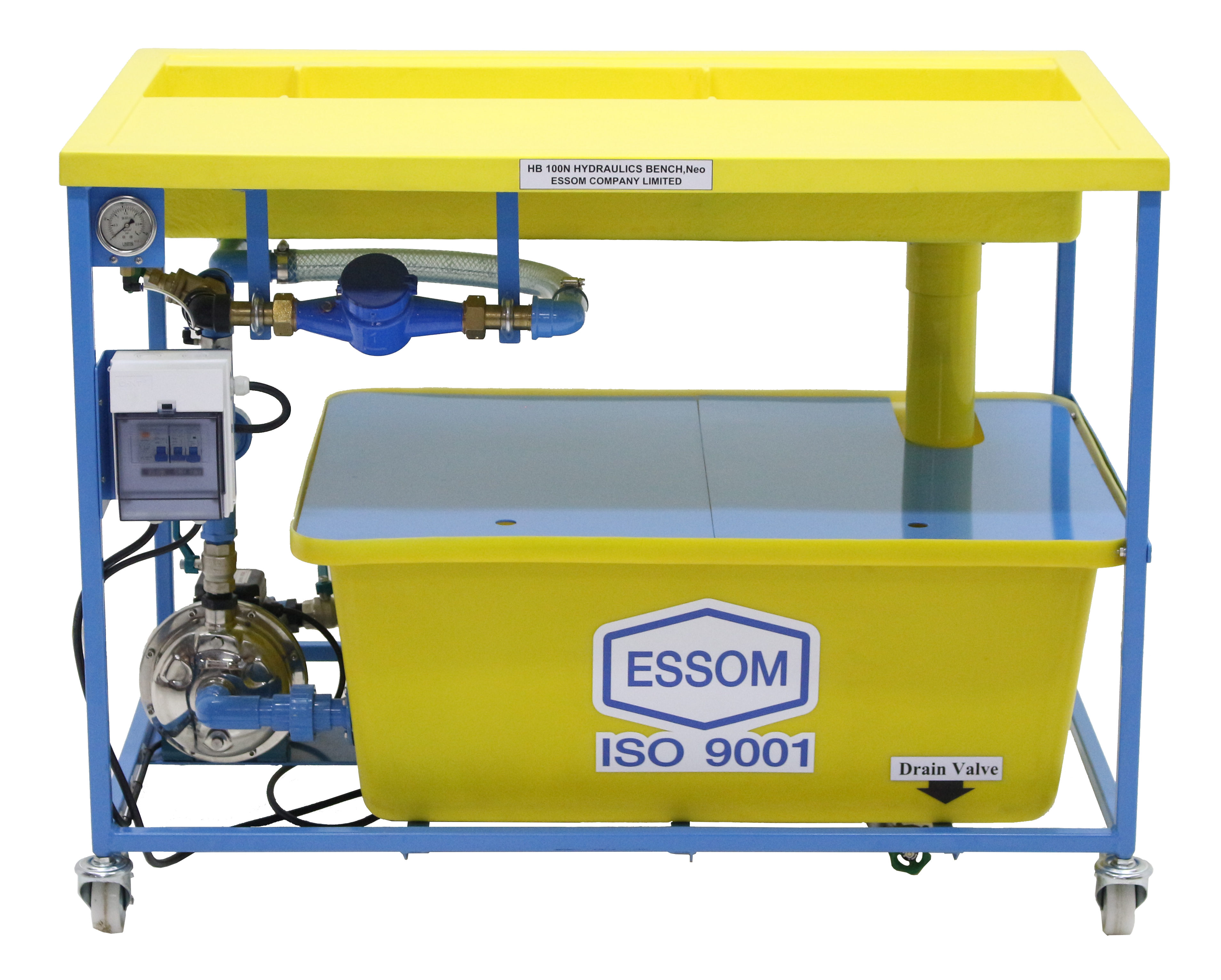

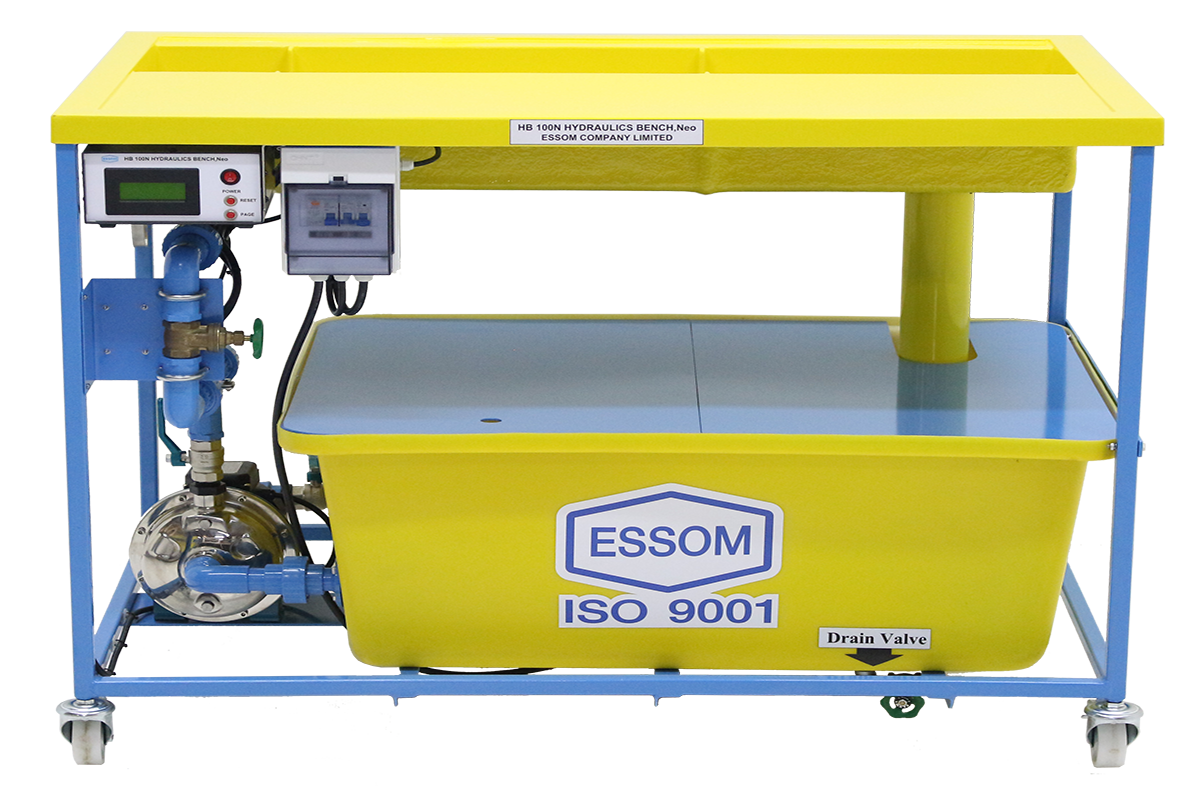

HB 100N HYDRAULICS BENCH, Neo

Enquiry

Download

This is a service basic unit for providing water supply and flow rate measurement to the bench accessories (separately supply) for specific experiments.

The bench top is flat fiber glass with edge and open channel which can act as volumetric tank. The accessory for the experiment is placed across the channel and discharges water via a drain pipe to the storage tank which has a drain valve. A pump draws water from the storage tank and supplies to the quick coupling outlet at the top. A lid for the drain pipe is provided to trap water in the channel for some experiment. The unit is on a steel frame on wheels.

Instruction manual is also included.

  • Pump
:  Centrifugal pump
  • Bench top dimensions
:  Approx. 126 cm long x 78 cm wide
  • Open channel
:  Approx.  25 cm wide x 17 cm deep
  • Water storage tank
:  Approx. 180 L
  • Flow measurement
:  Flow digital display
  • Accessories

:  Outlet hose with fittings for connection to accessory

:  Half union at outlet pipe for connection to external pump

:  Stopwatch


  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request

  • Net (unassembled) Shipping Dimensions WxLxH: 78 x 126 x 95 cm
  • Net Weight:  Approx.70 kg
  • HB003A
Variable speed pump with a control panel instead of fixed speed pump
  • HB007A
Submersible pump instead of standard centrifugal pump
  • HP002
Pressure gauge at bench pump discharge for study of pump or turbine performance
  • HP011
Pressure digital display at bench pump discharge for pressure indication
