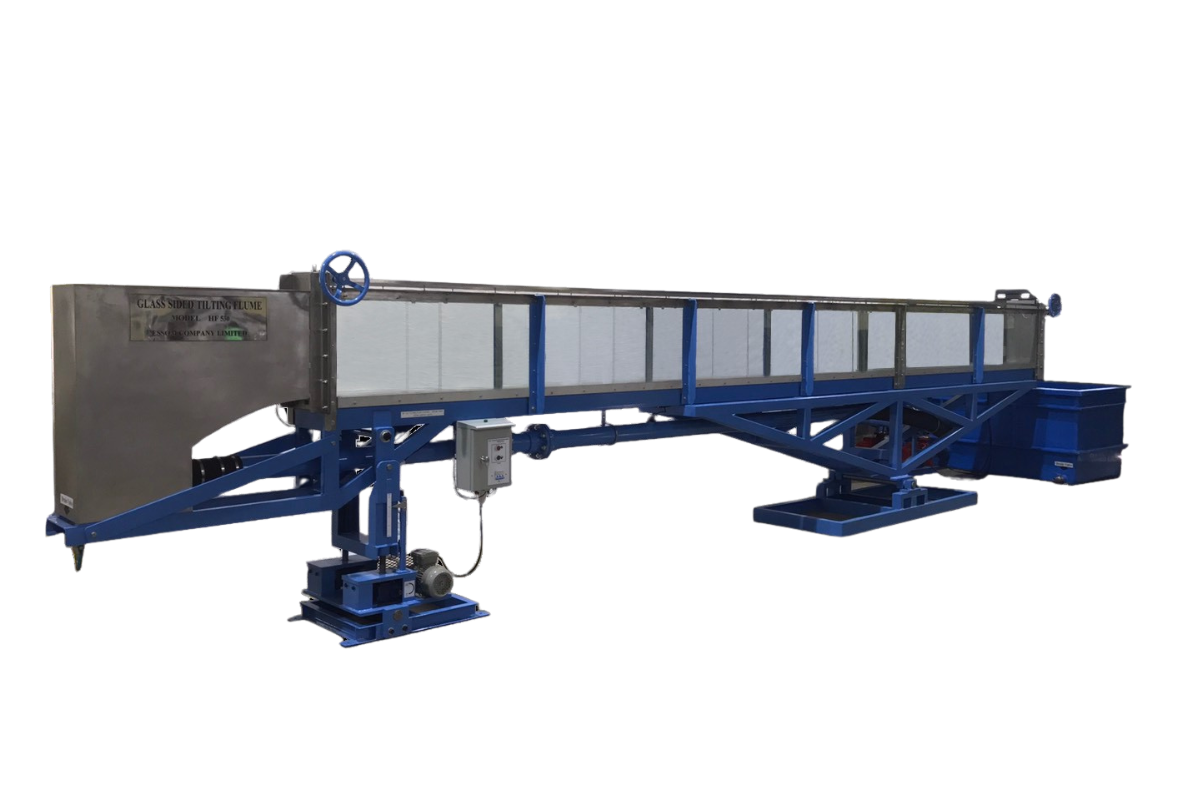

Tilting flow channels - HF Series

    HF-Series

Several sizes of flow channels are available as per standard below. Other test section lengths are available upon requested. Accessories are installed on the channel for studying on various flow phenomena. The flow channel is supplied with necessary systems e.g. water circulating, tilting and flow measurement. Computer control is available as an option.

HF 505 TILTING FLOW CHANNEL, 50 mm wide

HF 507 TILTING FLOW CHANNEL, 75 mm. wide

HF 508 TILTING FLOW CHANNEL, 75 mm. wide

HF 510 TILTING FLOW CHANNEL,100 mm. wide

HF 510A TILTING FLOW CHANNEL,100 mm. wide, Adjustable bed

HF 515 TILTING FLOW CHANNEL, 150 mm wide

HF 515A TILTING FLOW CHANNEL, 150 mm wide, Adjustable bed

HF 530 TILTING FLOW CHANNEL, 300 mm wide

HF 540CM TILTING FLOW CHANNEL, 400 mm wide

HF 560 TILTING FLOW CHANNEL, 600 mm wide

HF 566 SEDIMENT FLOW CHANNEL, 600 mm Wide
