HB 018 BENDS AND FITTINGS FRICTION

Enquiry

Download

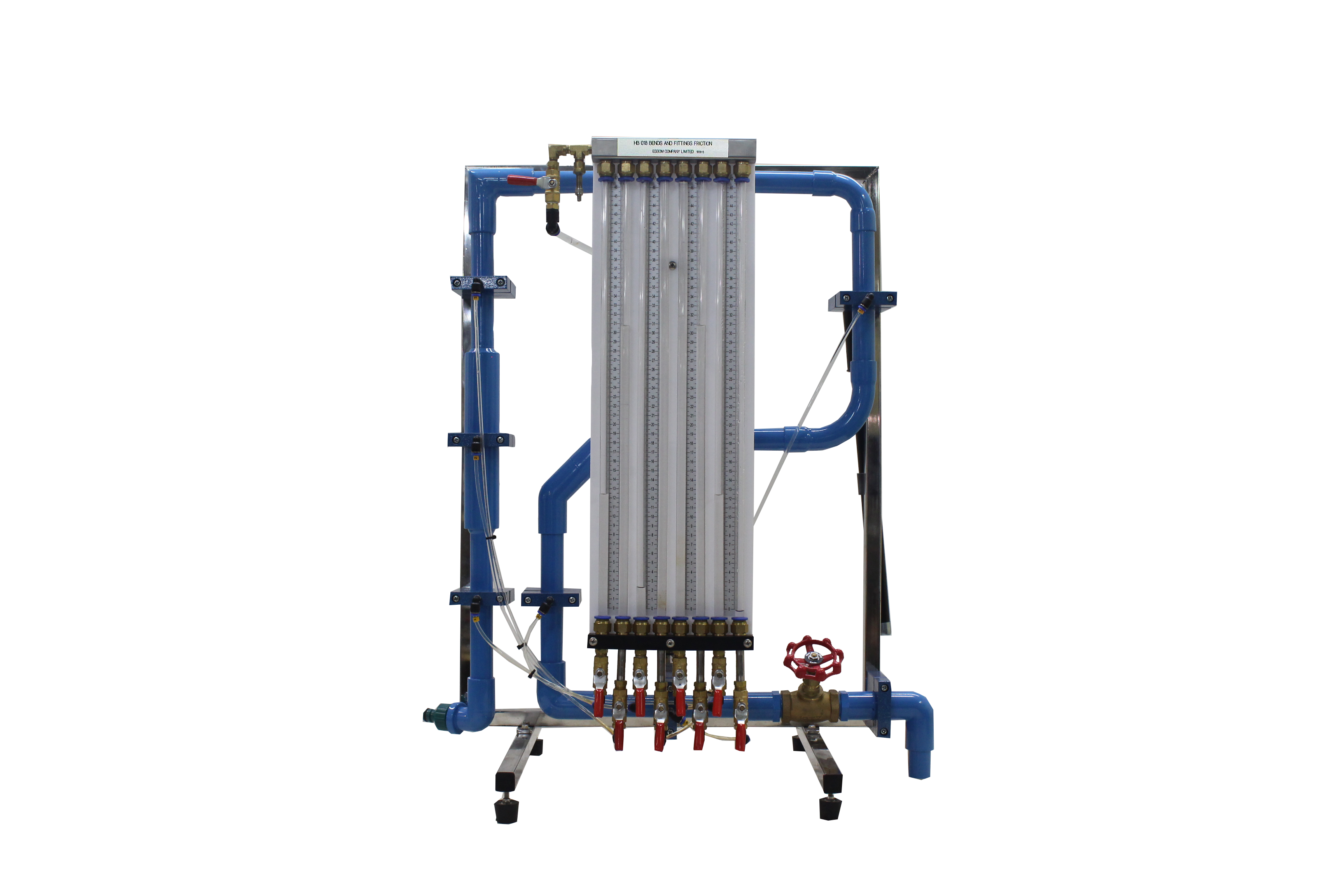

The equipment measures pressure drops at various flow rates when water flow through different pipe bends, and fittings. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

All bends and fittings are connected in series with pressure tappings on both sides of each device. A water manometer with a vent valve and a hand air pump is connected to these tappings. A valve at the outlet is used to control outlet pressure.

Instruction manual is also included.

  • Determination of Pressure Drop across various pipes and fittings at differing flow rates.

  • Estimation of Loss Coefficient (K) on various pipes, pipe fittings and valve settings

  • Pipe diameter (nominal)
:  20 mm
  •   Enlarged pipe diameter (nominal)
:  35 mm
  • Bends
:  90º Miter bend :  90º small radius bend :  90º large radius bend
  • Fittings
:  90º Elbow :  45º elbow :  Sudden expansion :  Sudden contraction
  • Water manometer
:  8 tubes x 450 mm
  • Net (unassembled) Shipping Dimensions WxLxH: 36 x 55 x 80 cm
  • Net Weight:  Approx. 13 kg
  • HB018S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HB018-001

A gate valve with pressure gauges for measuring pressure loss across the valve

  • HF011-035

Variable area flow meter, up to 35 LPM for flow rate indication.

HB018S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
