HB 017 PIPE FRICTION
Enquiry
Video
Download

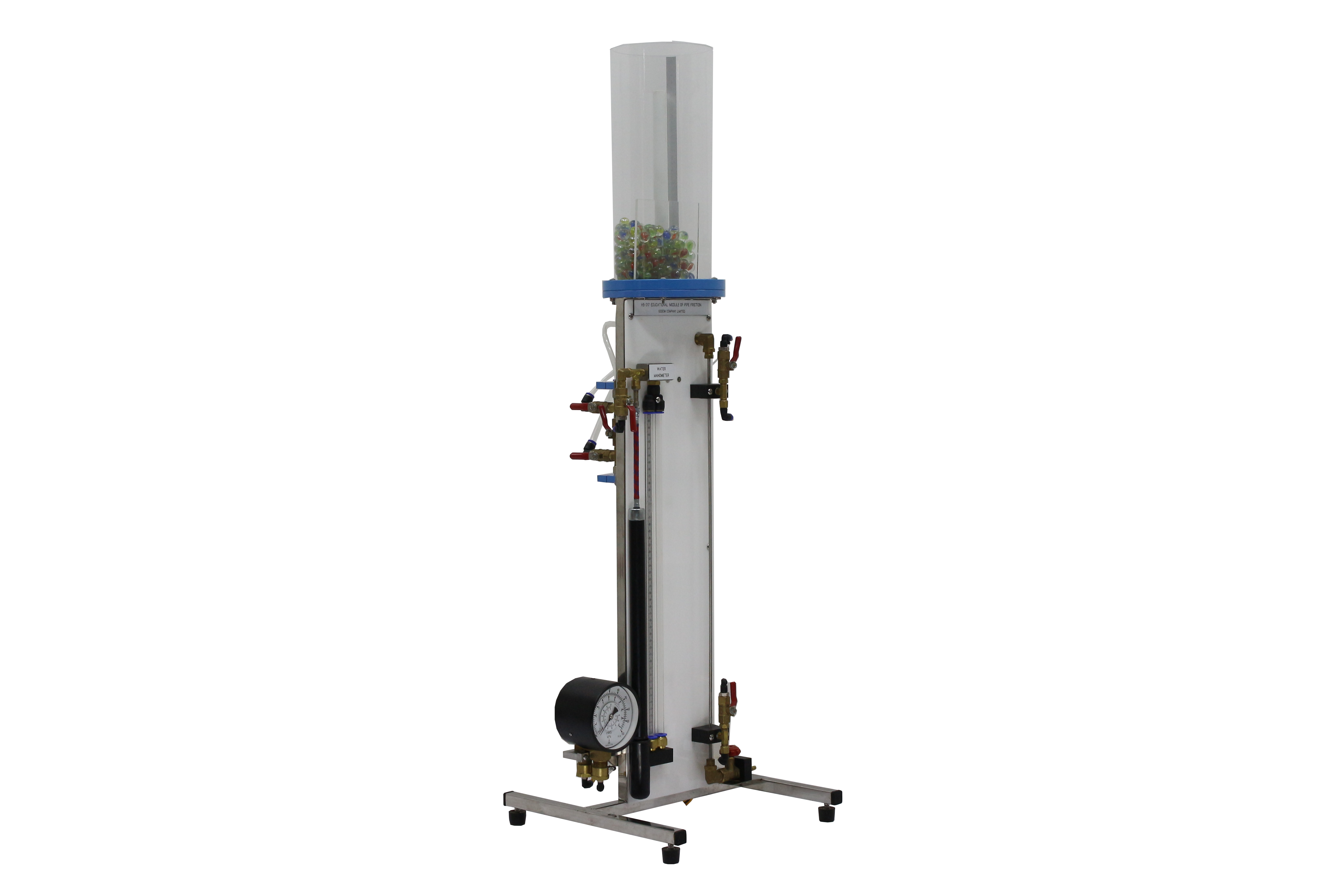

This equipment measures pressure drop when water flows through a vertical pipe at various flow rates both laminar and turbulent. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.
It consists of adjustable constant head water source of removable clear acrylic cylinder for laminar flow. Turbulent flow may be achieved by directly connecting the pipe to the Hydraulics Bench water supply. A water manometer with a vent valve, a hand air pump and a differential pressure gauge are provided for measurement of pressure drop. A valve at the outlet is used to control outlet pressure.
Instruction manual is also included.
Investigations of laminar and turbulent flows
Demonstration and measurement in a change of the laws of resistance (friction factor) from laminar to turbulent flow
| : 1 | |||
| : 450 mm | |||
| : 1 | |||
| : Stainless steel | |||
| : Over 500 mm | |||
| : 1 |
- Net (unassembled) Shipping Dimensions WxLxH: 36 x 36 x 115 cm
- Net Weight: Approx. 10 kg
| Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments. |
| Horizontal test pipe instead standard vertical pipe |
| Differential pressure digital display, 0-500 cm water instead of differential pressure gauge |
| Portable differential pressure meter, 0-2100 mbar, 0.2% accuracy instead of differential pressure gauge |
| U-tube mercury manometer instead of differential pressure gauge |
- Range : 450 mm x 1 mm graduation Note: Due to transport laws, mercury cannot be supplied. Buyer must source it locally. |
- Other optional equipment, please contact manufacturer(essom@essom.com)
| Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments. |
