HB 100G HYDRAULICS BENCH, Gravimetric

Enquiry

Video

Download

This is a service unit which provides water supply and gravimetric measurement for use in conjunction with other accessories for specific experiments (separately supplied).

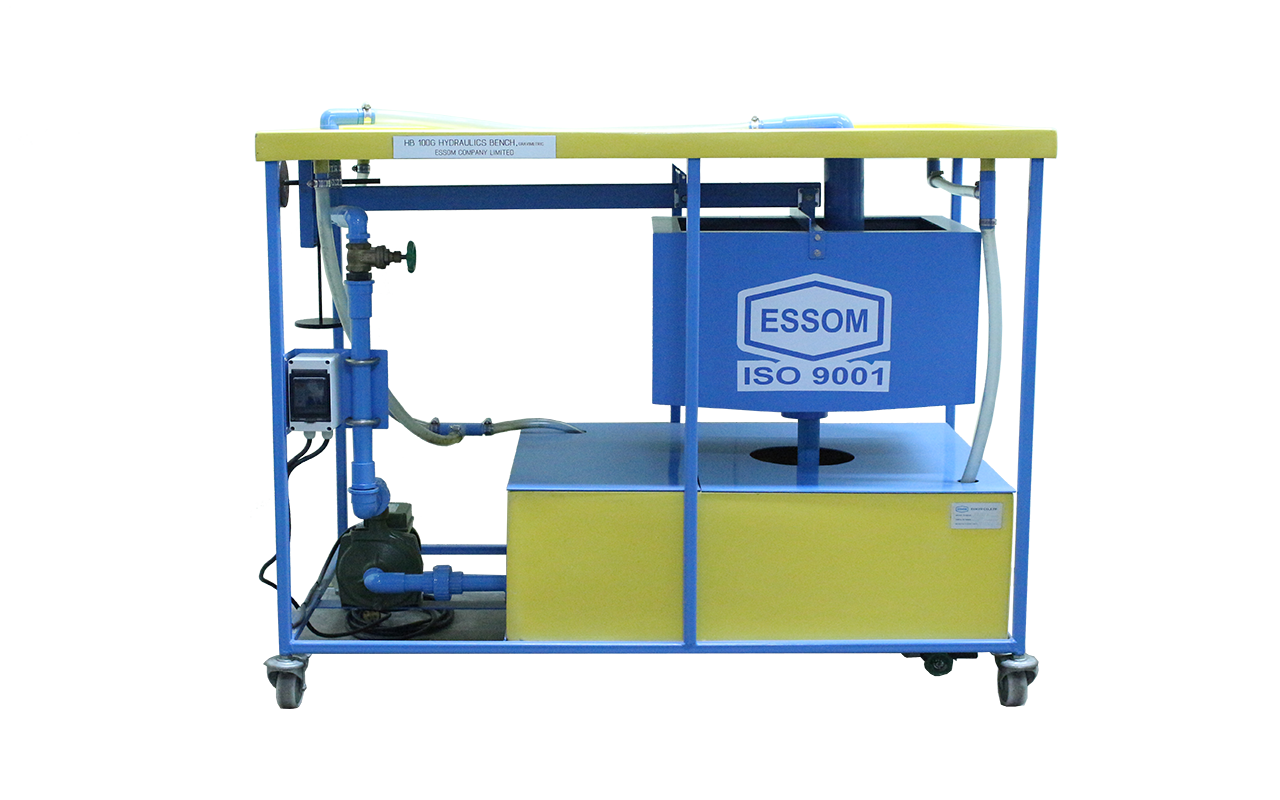

The bench top is flat fiber glass with a raised edge to hold spilled water and has a quick coupling water outlet, water discharge tube as well as 4 drain holes. The experiment accessories on the bench top discharges water to the measuring tank via a tube. A measuring tank is hung on a cantilever beam on ball bearings. An adjustable tare weight and calibrated weights are provided. When the water in the measuring tank exceeds the set weight, the beam will tilt and the measuring tank automatically discharges to the main storage tank which is drained at the bottom. A pump draws water from the storage tank and supplies to the outlet at the top. The unit is on a steel frame on wheels.

Instruction manual is also included.

  • Pump
:  Centrifugal pump
  • Bench top dimensions
:  Approx. 126 cm long x 77 cm wide
  • Measuring weight
:  Over 45 kg
  • Load hanger and equivalent weights for
:  1 Lot
  • Water storage tank
:  Approx. 170 L
  • Accessories
:  Stop watch and outlet hose with fittings for connection to accessory
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.

  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 136 x 105 cm
  • Net Weight:  Approx.117 kg
  • HB001
Bench leveling screws
  • HB003A
Variable speed pump with a control panel instead of fixed speed pump
  • HB007A
Submersible pump instead of centrifugal pump.
  • HF011-070
Variable area flow meter for flow rate indication.
