HB 029 PUMP TEST APPARATUS

Enquiry

Video

Download

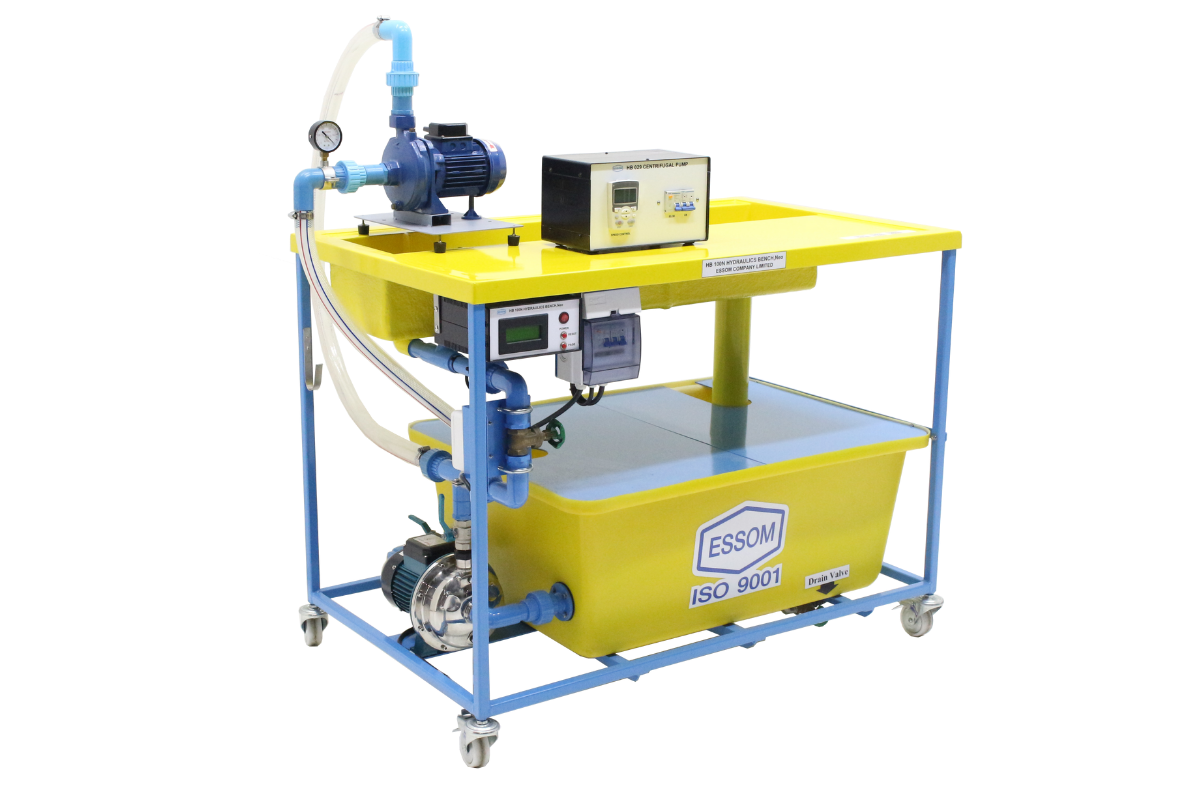

This equipment is designed to study of centrifugal pump characteristics at various speed. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The pump with motor is mounted on the Hydraulics Bench. An advanced inverter controls speed as well as indicating speed and input power. Pump hoses with half unions are used to connect the pump with the Hydraulics Bench. Pressure gauges are installed at pump suction with half union and also at pump discharge (optional). The pump draws water from the Hydraulics Bench storage tank via a suction hose with a strainer and delivers flow to the Hydraulics Bench measuring tank (HB100) or flow digital display (HB100N).

Instruction manual is also included.

  • Flow rate vs head at various speeds

  • Pump input, output and overall efficiency at various speeds

  • Pump


     - Types

     - Maximum flow rate

     - Maximum head

:  Approx. 80 LPM

:   Approx. 18 m water

:  Advanced inverter


  • Pressure gauge
:   Suction
  • Power supply

:   220 V, 1 Ph, 50 Hz. Other power supply is available on request.





  • Net (unassembled) Shipping Dimensions WxLxH: 36 x 75 x 50 cm
  • Net Weight:  Approx. 20 kg
  • HB029S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HP002-2
Pressure gauge (required accessory)
  • HP011
Pressure digital display
  • HB029RA

Reciprocating pump instead of standard pump

HB029S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
