HB 030M SERIES AND PARALLEL PUMP, Multi Speeds

Enquiry

Video

Download

This equipment is designed to study head vs flow rate characteristics of two pumps connected in series or parallel. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

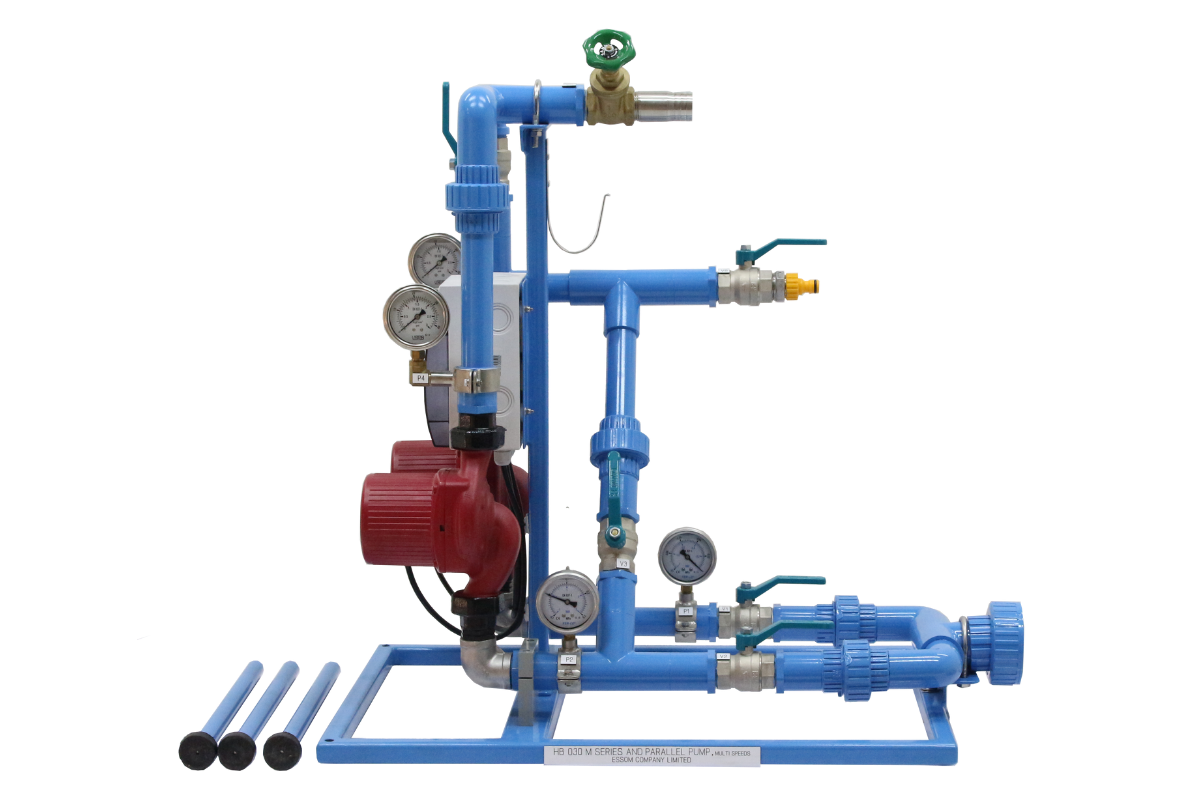

It consists of two identical pumps with 3 different speeds, inter connecting pipings, and control valves. Both pumps are interconnected and mounted on a support next to the Hydraulic Bench. By manipulating flow control valves, the two pumps can be operated individually, or both pumps in series or in parallel. Pressure gauges are installed at pump suction and discharge. The apparatus is equipped with suction hoses and strainers and a discharge hose.

Instruction manual is also included.

  • Characteristics of two pumps connected in series or parallel

  • Flow rate vs head at three different speeds for individual pump.

  • Flow rate vs head at a fixed speed for two pumps connected in series or parallel.

  • Pump


     - Multi speeds

     - Maximum flow

     - Maximum head

: 3 different speeds

: 70 LPM

: Approx. 7 m water


  • Pressure gauge
:   4
  • Power supply

:   220 V, 1 Ph, 50 Hz. Other power supply is available on request.





  • Net (unassembled) Shipping Dimensions WxLxH: 45 x 65 x 65 cm
  • Net Weight:  Approx. 28 kg
  • HB030MS
