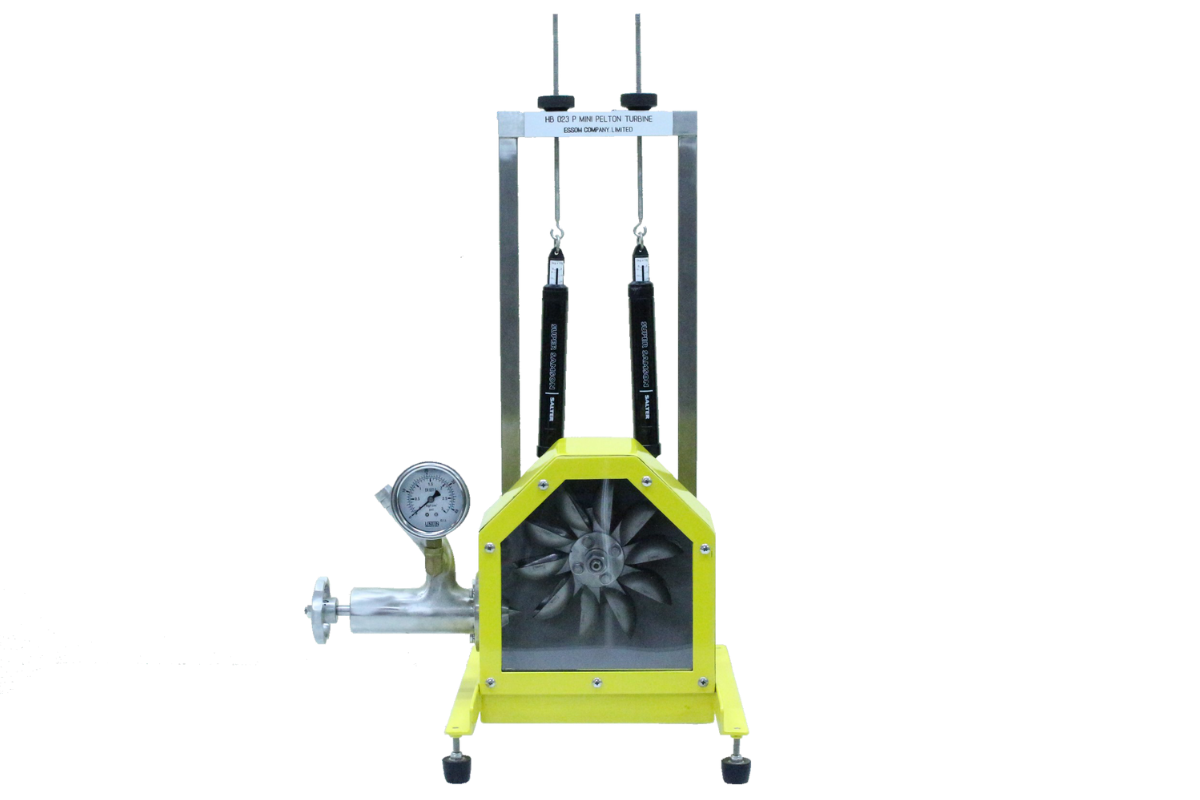

This equipment demonstrates Pelton turbine characteristics i.e. torque, power and efficiency at different speeds for various heads and flow rates of water. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The adjustable turbine nozzle directs water jet to the runner buckets. Inlet pressure is indicated by a pressure gauge (optional). Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench measuring tank.

Instruction manual is also included.
