FLUID MECHANICS > Turbine test set

HT 151AI MINI AXIAL FLOW IMPULSE TURBINE DEMONSTRATION UNIT, Computer Interface

Enquiry

Download

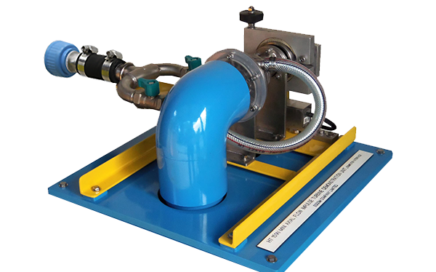

This is a mini axial flow impulse turbine for studying the turbine characteristics with data analysis by computer.

The unit consists of the mini axial flow impulse turbine with a dynamometer, output power sensors and software. The turbine twin nozzles with flow control valves direct water jets to the runner radial blades.

The unit is to be used with HT110 Mini Turbine Service Unit or HB100N Hydraulic Bench (Neo) with optional accessories. Both are separately supplied.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Racing characteristics

  • Construction
:  Metal runner, twin nozzles and casing with transparent discharge section
  • Ratings
:  Maximum power over 25 W
  • Dynamometer
:  Mechanical brake
  • Sensors   with digital display
:  Torque and speed
  • Water storage tank
:  1

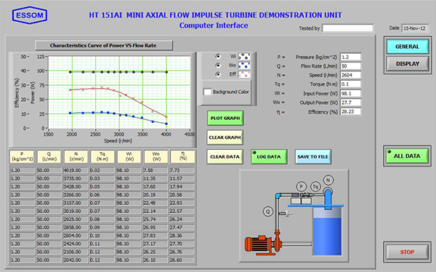

  • Software for data display and analysis by computer (separately supplied)
  • WiFi feature for data logging and/or real-time display remotely on smartphone (iOS and Android).
  • Net (unassembled) Shipping Dimensions WxLxH: 40 x 45 x 24 cm
  • Net Weight:  Approx. 9 kg
HT110Mini turbine service unit. (required accessory)
HB100NHydraulics Bench (Neo) (required accessory)
HT151AI-060Computer Control (computer not included)
                                 This includes HT 151AI-050 with the additional accessories for control function and additional software function for equipment controls by computer
