HT 210 PELTON TURBINE TEST SET

Enquiry

Download

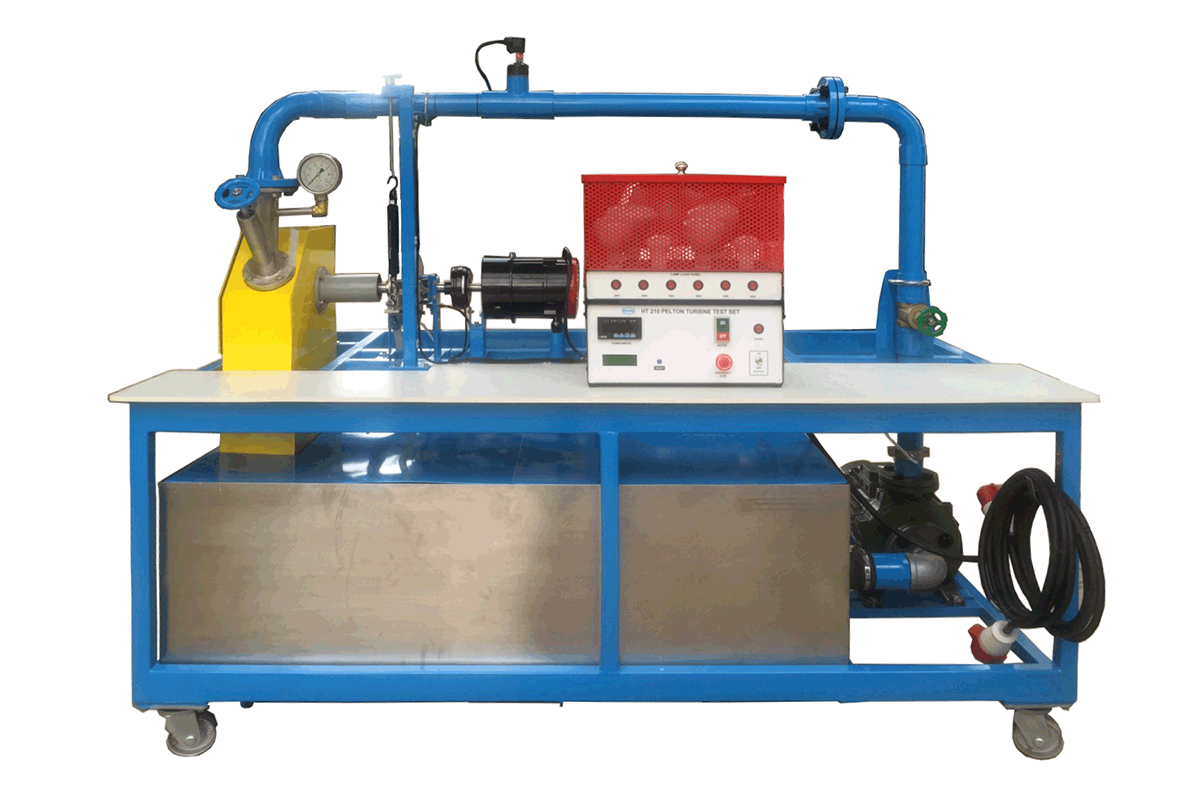

This set is designed for studying the Pelton turbine characteristics under various flow rates and heads.

The unit consists of a storage tank, a pump, a turbine, a dynamometer, a generator, and measuring instruments. The adjustable nozzle directs the water jet to the runner buckets. Power output can be measured by either dynamometer or generator.

The unit is on wheels.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Overall turbine generator efficiency

  • Racing characteristics

  • Turbine

- Construction: Stainless steel runner, nozzle and casing with transparent window to observe hydraulic action
- Ratings: Over 2000 W of brake power or over 1200 W of electrical power
  • Pump ratings

- Motor: 7.5 kW
  • Generator
:  1.5 kW, 220 V, 1 Ph, 50 Hz.
  • Electrical load
:  Lamp bank
  • Water storage tank
:  1
  • Dynamometer
:  Water cooled stainless steel mechanical brake with anti splashing system
  • Measuring instruments:

-  Torque:  Spring balance
-  Pressure:  Pressure gauge
-  Sensors with digital display:  Voltage and current for electrical power output
 :  Flow rate and speed
  • Power supply
:  380 V, 3 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 105 x 190 x 170 cm
  • Net Weight:  Approx. 412 kg
  • HT210S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • HP008
Advanced inverter for controlling and indicating motor speed as well as for calculating motor input power. Hence pump efficiency at various speeds can be determined.
  • HD200DA
Water brake absorber dynamometer instead of mechanical brake dynamometer. In this case, connection to the turbine with generator is by pulleys or direct coupling to the turbine without the generator.
  • HT210-050

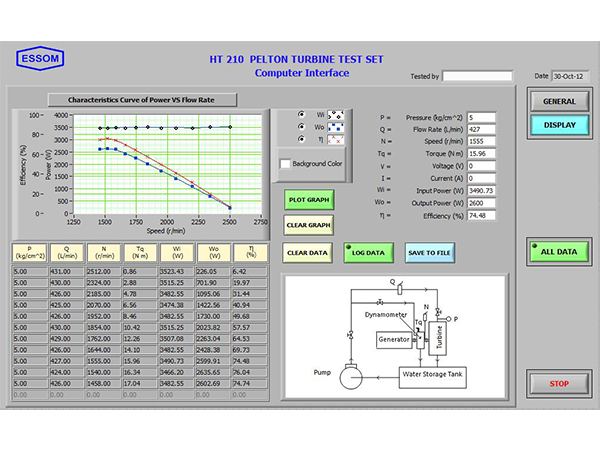

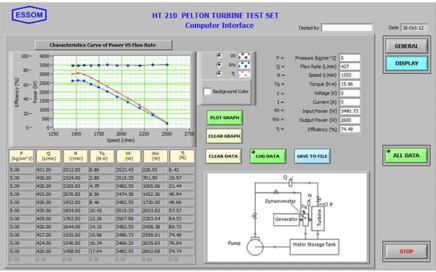

Computer Interface (computer not included)
 This includes HT210S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT210-060
Computer Control (computer not included)
                                    This includes HT 210-050 with the additional accessories for control function and additional software function for equipment controls by computer
 -  Flow and load control motors
 - Additional software function for equipment controls by computer
  • HT210S
Learning Software
                                          to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
