HT 131 MINI FRANCIS TURBINE DEMONSTRATION UNIT, Computer Interface

Enquiry

Download

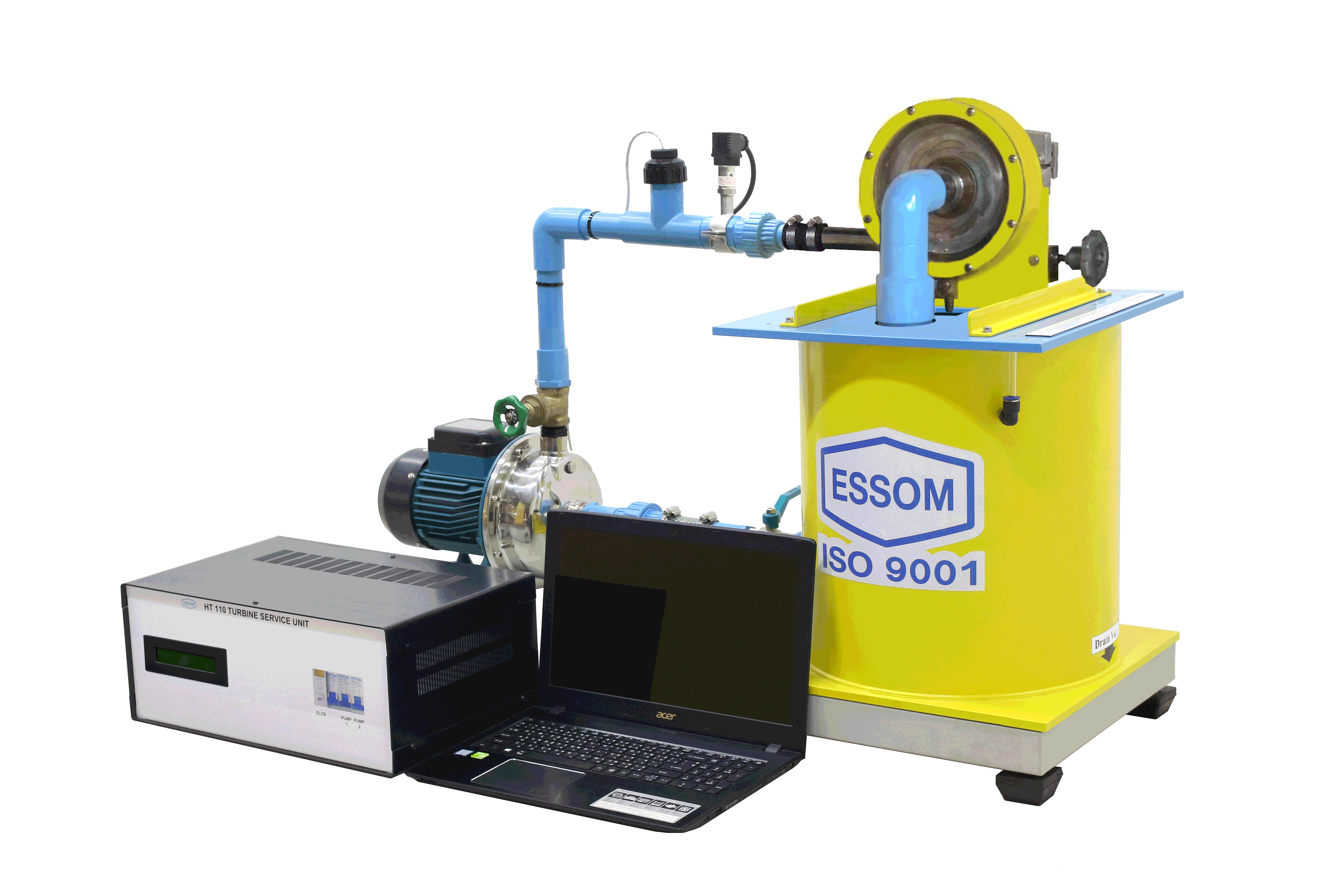

This is a mini Francis turbine for studying the turbine characteristics with data analysis by computer.

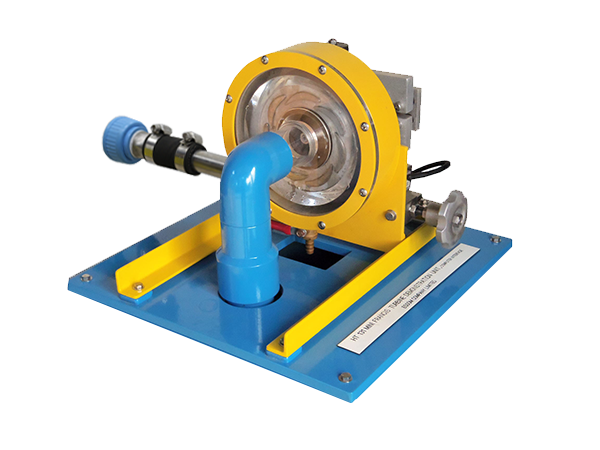

The unit consists of the mini Francis turbine with a dynamometer, output power sensors, and software. The turbine adjustable guide vanes direct water spirally to the runner.

The unit is to be used with HT110 Mini Turbine Service Unit or HB100N Hydraulic Bench (Neo) with optional accessories. All are separately supplied.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Racing characteristics

  • Construction
: Mechanical seal
: Non-corrosion metal casing with transparent window
  • Ratings
:  Maximum power over 25 W
  • Dynamometer
:  Mechanical brake
  • Sensors with digital display
:  Torque and speed
  • Software for data display and analysis by computer (separately supplied)
  • WiFi feature for data logging and/or real-time display remotely on smartphone (iOS and Android).
  • Net (unassembled) Shipping Dimensions WxLxH: 40 x 45 x 27 cm
  • Net Weight:  Approx. 11 kg
HT110Mini turbine service unit (required accessory)
HB100NHydraulics Bench (Neo) (required accessory)
HT131-060Computer Control (computer not included)
 This includes HT 131-050 with the additional accessories for control function and additional software function for equipment controls by computer.
 - Flow and load control motors. (required HT 110 Mini turbine service unit or HB100N Hydraulics Bench with HP011 pressure digital display)
 - Additional software function for equipment controls by computer
