HT 301 MINI FRANCIS TURBINE TEST SET

Enquiry

Video

Download

This is a self contained bench top set for studying the Francis turbine characteristics under various flow rates and heads.

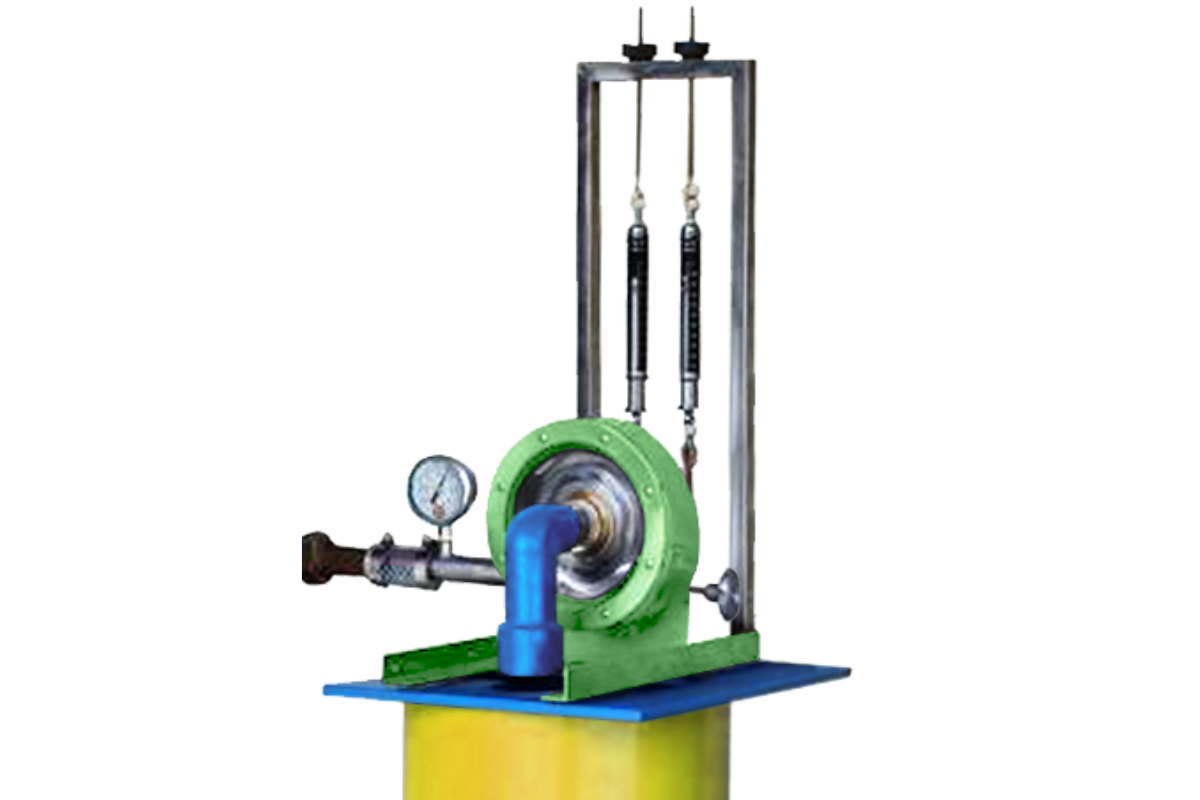

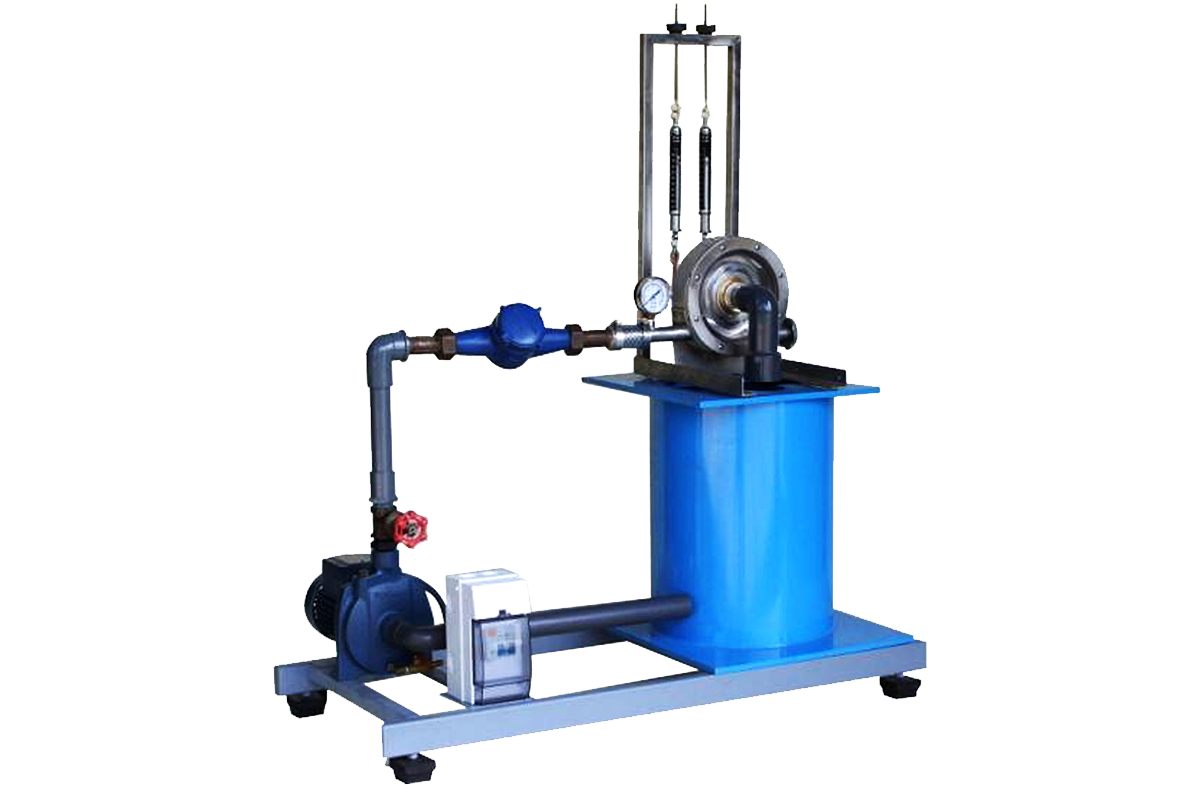

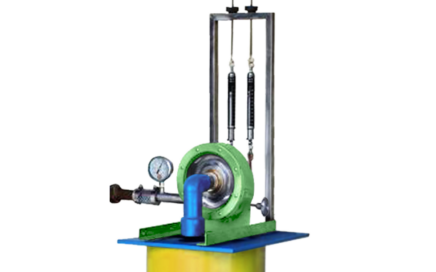

The unit consists of a storage tank on a steel base, a pump, a mini Francis turbine, a dynamometer, and measuring instruments.

The adjustable guide vanes direct water spirally to the runner.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Racing characteristics

  • Turbine
- Construction :  Bronze runner with adjustable guide vanes
:  Non-corrosion metal casing with transparent window
- Ratings :  Maximum power over 25 W
  • Pump ratings
- Motor : 0.55 kW
  • Water storage tank
:  1
  • Dynamometer
:  Mechanical brake
  • Measuring instruments:
-  Torque :  Spring balance
-  Speed :  Portable tachometer
-  Flow rate :  Water meter and stop watch
-  Pressure :  Pressure gauge
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 40 x 110 x 85 cm
  • Net Weight:  Approx. 70 kg
  • HT301S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • HP009
Pressure gauge at pump inlet for pump pressure vs flow rate curve.
  • HT010R
Electric generator with voltage and current digital display and resistive load.
  • HT301-050

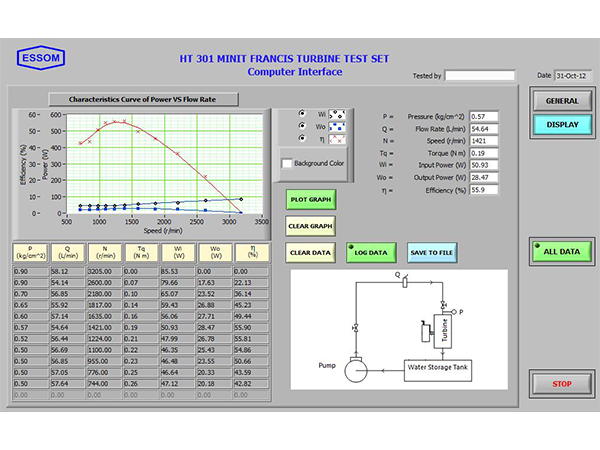

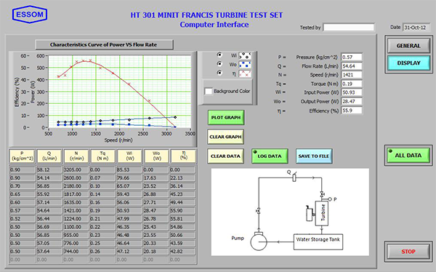

Computer Interface (computer not included)
 This includes HT301S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT301-060
Computer Control (computer not included)
                                 This includes HT 301-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT301S
Learning Software
                                          to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
