Fluid Mechanic > HYDROSTATIC TEST ACCESSORIES AND EQUIPMENT

HB 014 METACENTRIC HEIGHT

Enquiry

Download

This equipment is designed to determine the metacentric height of a floating body and the height variation with the tilt angle. It is to be used with Hydraulics Bench i.e. HB100 or HB100N or a bowl (separately supplied).

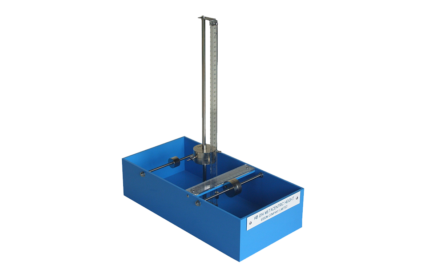

The equipment consists of a rectangular pontoon. The center of gravity of the pontoon can be moved sideways by moving horizontal jockey weight.

The angle of tilt of the pontoon is indicated by a plumb-bob on a scale attached. The center of gravity of the pontoon can also be moved vertically by means of adjustable vertical weights on the mast.

Instruction manual is also included.

  • Experiment to illustrate the floatation characteristics

  • Determination of the metacentric height

  • Comparison of different shapes of pontoon (optional)

  • Pontoon

:  400 mm long x 200 mm wide x 100 mm high


  • Horizontal scale
:  1 mm graduation.
  • Maximum angle of tilt
:  ± 13º x 0.5º graduation
  • Vertical sliding weight
:  1
  • Jockey weight
:  1
  • Net (unassembled) Shipping Dimensions WxLxH: 22 x 40 x 48 cm
  • Net Weight:  Approx. 3 kg
  • HB014S
Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • HB014-001
Different shape of pontoon i.e., hard chine and round bilge
HB014S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
