HF 111 PARTICLE DRAG COEFFICIENTS

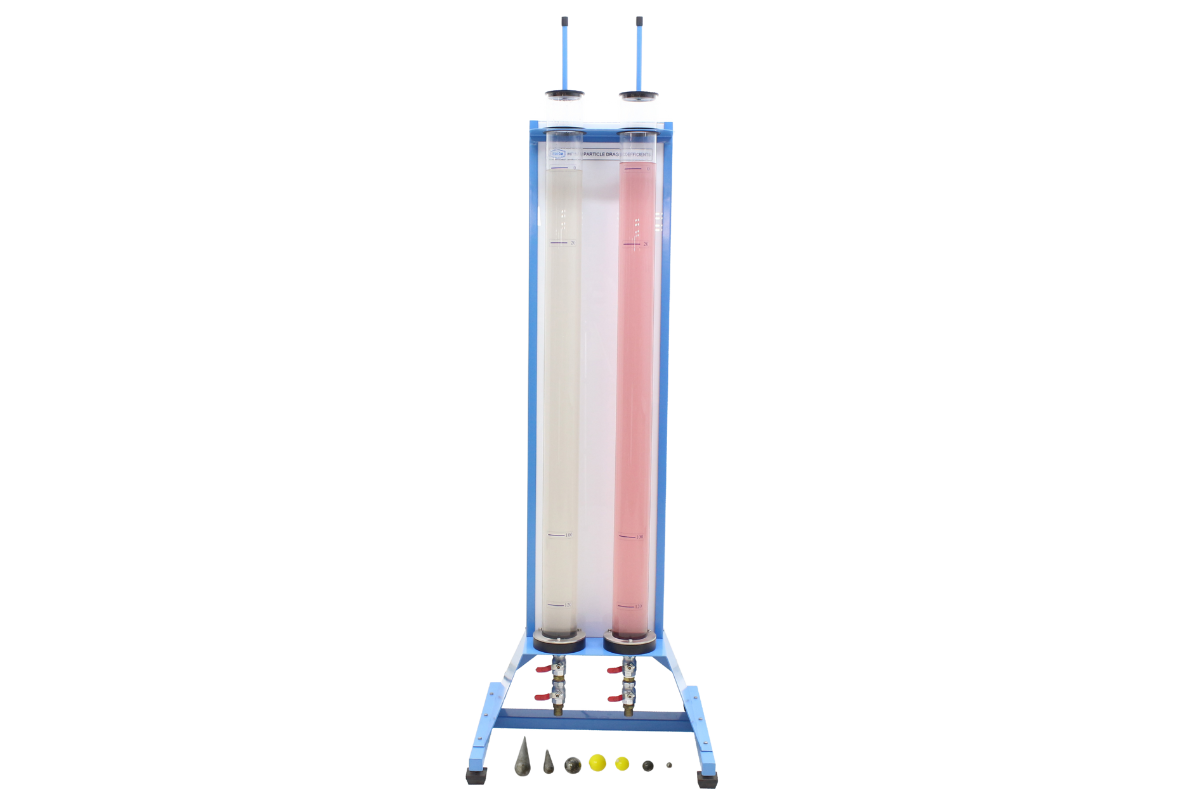

The apparatus is designed to study the drag of a particle in a liquid under various Reynold numbers.
This is done by dropping a particle into a vertical liquid column and timing its fall between two points. Particle cross section is no more than 1% of the tube cross section. Various sizes and density of particles are supplied including streamlined shaped objects.
A guide at the top of the tube is provided to minimize disturbance to the liquid. Valves at the bottom of the tubes provide a mean for particle removal with minimum loss of the liquid. The rear panel is translucent with back lighting. This allows clear observation of the particle fall.
Instruction manual is also included.
Measurement of drag coefficients of sphere under various Reynold numbers
Effect of particle shape on rate of fall and drag coefficient
Effect of boundary layer separation on motion of sphere
Exploration of dynamic similarity
Determination of viscosity
| : 2 ea. | |||
| : 2 | |||
| : 5 different diameters and materials | |||
| : 2 x stainless steel | |||
| : 2 | |||
| : 1 | |||
| : 220V, 1 Ph, 50 Hz. Other power supply is available on request. |
- Net (unassembled) Shipping Dimensions WxLxH: 41 x 50 x 172 cm
- Net Weight: Approx. 45 kg
HF111S | : Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments. |
