Fluid Mechanic > HYDROSTATIC TEST ACCESSORIES AND EQUIPMENT

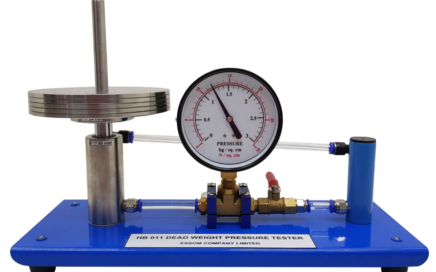

HB 011 DEAD WEIGHT PRESSURE TESTER

Enquiry

Download

The tester is designed to calibrate pressure gauge.
It consists of a precision machined stainless steel piston and cylinder with calibrated weights. The weights are applied on the upper end of the piston rod to generate pressure. The assembly is mounted on adjusting screws with a bull’s eye level. The pressure gauge is connected to the cylinder, thus subject to known pressure and comparison with the gauge reading can be made. Leaking liquid from the cylinder is returned to a reservoir. The cylinder can be simply refilled with liquid from the reservoir without removing the piston.
Instruction manual is also included.

  • Calibration of a pressure gauge
  • Determination of gauge errors as a function of true pressure

Pressure gauge

: 1







Weights

: 1 lot







  • Net (unassembled) Shipping Dimensions WxLxH:  14 x 38 x 25 cm
  • Net Weight:  Approx. 10 kg

HB011S

: Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.

HP 011

:  Pressure digital display

HB 011-002

:  Additional calibration pressure gauge Class 1 with connection.

HB 011-003A

:  Weights in “N” instead of standard weight
Other optional equipment, please contact manufacturer

HB011S : Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
