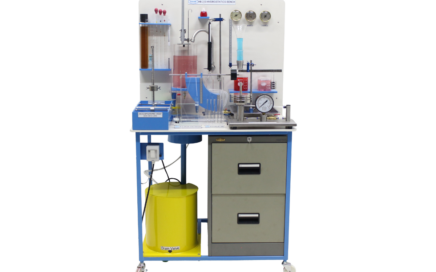

HB 200 HYDROSTATICS BENCH

Enquiry

Download

The equipment is a self-contained unit for the study of basic properties of fluids in hydrostatic conditions.  Water is provided in a storage tank of the bench with a pump to deliver water for the experiments. Accessories for individual experiments are placed on the bench panel and can also be stored in the bench cabinet. The unit is on steel frame on wheels.

Instruction manual is also included.

  • Measurement of level, pressure, temperature, specific gravity, viscosity, humidity.

  • Demonstration of Pascal’s law, Archimedes principles, capillary effect

  • Determination of metacentric height and hydrostatic pressure

  • Calibration of pressure gauge

The accessories for a bench include:
  • Inclined water manometer
  • Barometer
  • Hygrometer

  • Thermometer
:               1
  • Hydrometer
:               1
  • Stainless steel Vernier hook and point gauge
:               1
  • Capillary viscometer
:               1
  • Falling sphere viscometer
:               1
  • Specific gravity bottle
:               1
  • Beaker
:               1
  • Graduated cylinder
:               1
  • Hand pipette
:               1
  • HB011 Dead weight pressure tester



     - Pressure gauge

     - Weights

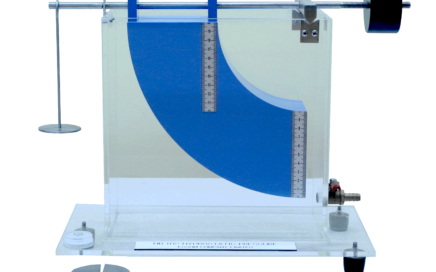

  • HB012 Hydrostatic pressure

         - Weights

  • HB014 Metacentric height

  • SP111 Archimedes apparatus

  • SP112 Pascal’s apparatus

  • SP121 Capillary tubes


  • SP122 Capillary attraction plates
:               1 pair
  • SP126 Triple beam balance

  • Water storage tank with pump
:               1 set
  • Bowl

  • Power supply
:               220 V, 1Ph, 50 Hz. Other power supply is available on request.




  • Net (unassembled) Shipping Dimensions WxLxH: 73 x 91 x 169 cm
  • Net Weight:  Approx. 980 kg
  • HB200S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • SP113
Boyle’s law apparatus
  • SP114
Surface tension apparatus
  • MW102M-450

U-tube mercury manometer

- Range :  0-450 mm x 1 mm graduation

- Accessory :  Hand air pump

Note: Due to transport laws, mercury cannot be supplied. Buyer must source it locally.

          Approximately 25 mL or 350g is required. Filling kit is provided.

  • HP002B-1
Bourdon gauge
  • HF033C
Portable differential pressure meter, 0-2100 mbar, 0.2% accuracy
  • HB200S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
