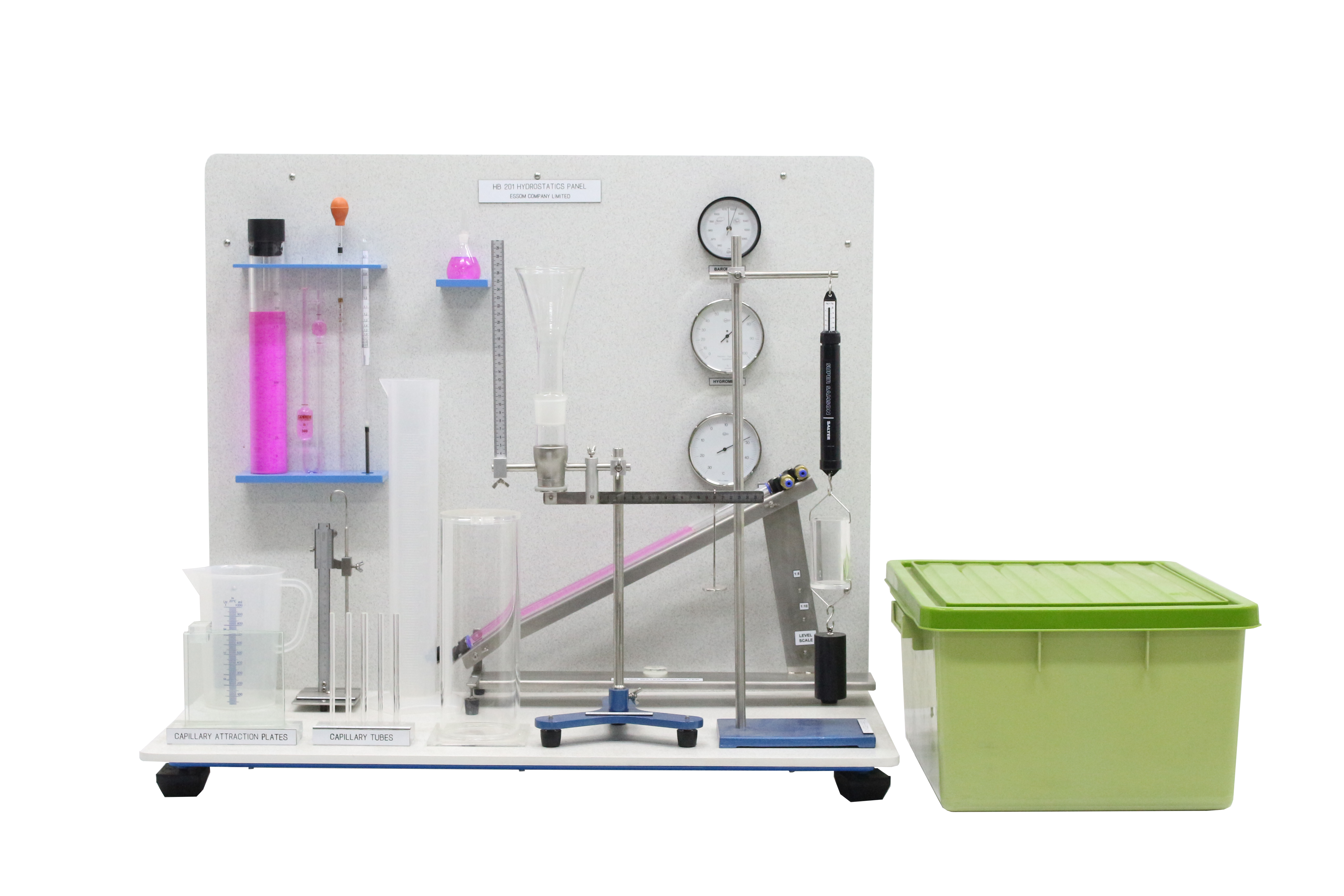

HB 201 HYDROSTATICS PANEL

Enquiry

Video

Download

The equipment is a bench top unit for the study of basic properties of fluids in hydrostatic conditions. Components are placed on the panel. The unit can be placed on a suitable bench top and requires outside water supply.

Instruction manual is also included.

  • Measurement of level, pressure, temperature, specific gravity, viscosity, humidity

  • Demonstration of Pascal’s law, Archimedes principles, capillary effect

  • Determination of metacentric height (optional), center of pressure (optional)

  • Calibration of pressure gauge (optional)

The accessories for the panel include:
  •  Inclined water manometer
  • Barometer
  • Hygrometer
  • Thermometer
  • Hydrometer
  • Stainless steel vernier hook gauge
  • Capillary viscometer
  • Falling sphere viscometer
  • Specific gravity bottle
  • Beaker
  • Graduated cylinder
  • Hand pipette
  • SP111 Archimedes apparatus
  • SP112 Pascal’s apparatus
  • SP121 Capillary tubes
  • SP122 Capillary attraction plates
  • SP126 Triple beam balance
  • Plastic box
  • Net (unassembled) Shipping Dimensions WxLxH: 54 x 91 x 80 cm
  • Net Weight:  Approx. 31 kg
  • HB201S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.


  • HB201-001
Steel cabinet for panel support and accessories storage
  • MW102M-450

U-tube mercury manometer

   - Range :  0-450 mm x 1 mm graduation

   - Accessory :  Hand air pump

Note: Due to transport laws, mercury cannot be supplied. Buyer must source it locally.

          Approximately 25 mL or 350g is required. Filling kit is provided.


  • HP002B-1
Bourdon gauge
  • HF033C
Portable differential pressure meter, 0-2100 mbar, 0.2% accuracy
  • HB011
Dead weight pressure tester
  • HB012
Hydrostatic pressure
  • HB014
Metacentric height
  • SP113
Boyle’s law apparatus
  • SP114
Surface tension apparatus
  • HB201S
Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
