HT 702 COMPACT PELTON/FRANCIS TURBINE TEST SET

Enquiry

Video

Download

This is a self contained set of Pelton and Francis turbines, designed for studying the turbine characteristics under various flow rates and heads.

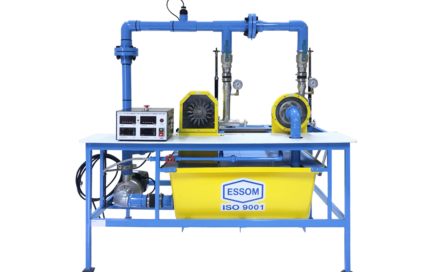

The unit consists of a pump, a storage tank, a Pelton and a Francis turbine connected in parallel, a dynamometer for each turbine, and measuring instruments. The unit is on adjustable footings.

Instruction manual is also included.

Each turbine can be tested on the following:

  • Torque vs speed at various heads and flow rates
  • Power output vs speed for various heads and flow rates
  • Efficiency vs speed for a given head and flow rate
  • Racing characteristics.
  • Pelton turbine

- Construction:  Stainless steel runner
 :  Stainless steel casing with transparent window
- Ratings:  Maximum power 400 W
  • Francis turbine

- Construction:  Bronze runner
 :  Non-corrosion metal casing with adjustable guide vanes and transparent window
- Ratings:  Maximum power over 400 W
  • Pump ratings

- Motor:  2.2 kW
  • Water storage tank
:  1
  • Dynamometer
:  Water cooled mechanical brake absorber with anti splashing system
  • Measuring instruments

- Torque:  Spring balance
- Pressure:  Pressure gauges at turbine inlets
- Sensors with digital display:  Flow rate and speeds
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 45 x 110 x 110 cm
  • Net Weight:  Approx. 90 kg
  • HT702S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring
  • HD160SA
Water brake absorber instead of mechanical brake absorber
  • HP003
Advanced inverter for controlling and indicating motor speed as well as for calculating motor input power. Hence pump efficiency at various speeds can be determined.
  • HP011-3
Additional pressure digital display
  • HT010L
Electric generator with voltage and current digital display and lamp loads
  • HT702-050
Computer Interface (computer not included)

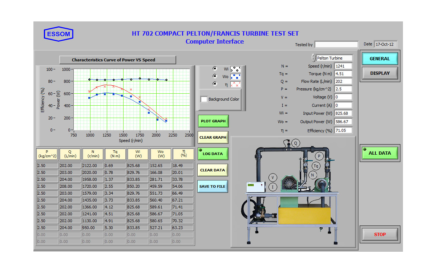

 This includes HT702S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT702-060
Computer Control (computer not included)
                                        This includes HT 702-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT702S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
