HT 161 MINI KAPLAN TURBINE DEMONSTRATION UNIT, Computer Interface
This is a mini Kaplan turbine for studying the turbine characteristics with data analysis by computer.

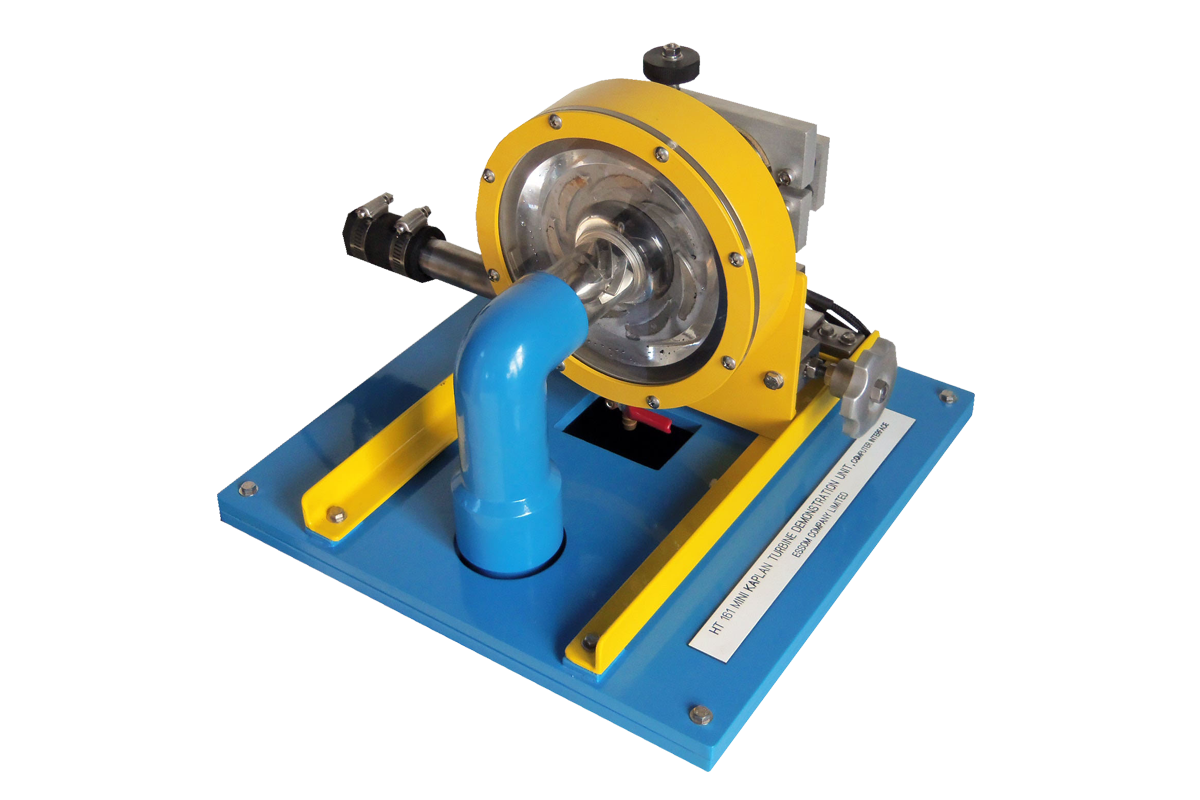

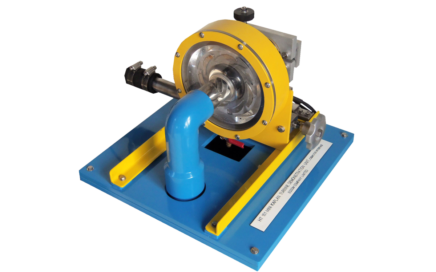

The unit consists of a mini Kaplan turbine with a dynamometer, output power sensors and software. The turbine adjustable guide vanes direct water helically to the runner.

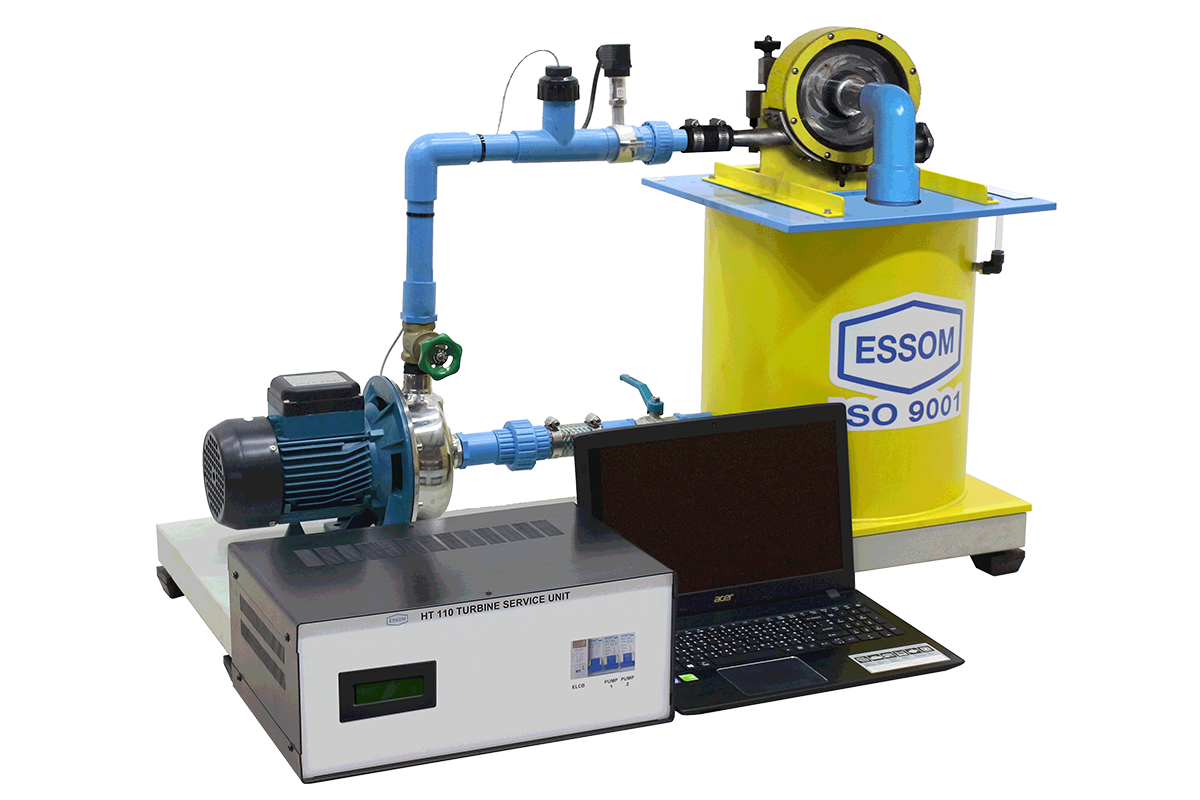

The unit is to be used with HT110 Mini Turbine Service Unit or HB100N Hydraulic Bench (Neo) with optional accessories. Both are separately supplied.
Instruction manual is also included.
Torque vs speed at various heads and flow rates
Power output vs speed for various heads and flow rates
Efficiency vs speed for a given head and flow rate
Racing characteristics
| : Metal runner with adjustable guide vanes |
| : Non corrosion metal casing with transparent window and runner section |
| : Maximum power over 15 W |
| : Mechanical brake |
| : Torque and speed |
| : 1 |

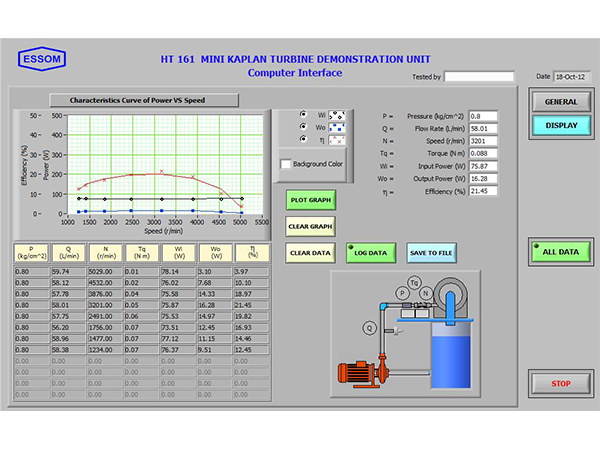

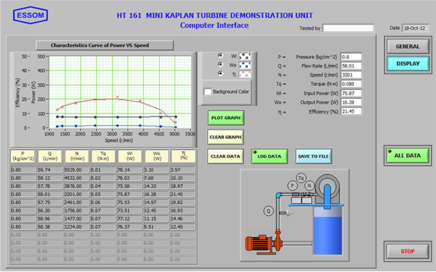

- Software for data display and analysis by computer (separately supplied)
- WiFi feature for data logging and/or real-time display remotely on smartphone (iOS and Android).
- Net (unassembled) Shipping Dimensions WxLxH: 40 x 45 x 27 cm
- Net Weight: Approx. 11 kg
HT110 | Mini turbine service unit. (required accessory) |
HB100N | Hydraulics Bench (Neo) (required accessory) |
HT161-060 | Computer Control (computer not included) |
This includes HT 161-050 with the additional accessories for control function and additional software function for equipment controls by computer |
- Other optional equipment, please contact manufacturer ([email protected])
