FLUID MECHANICS > Turbine test set

HT 151A MINI AXIAL FLOW PROPELLER TURBINE DEMONSTRATION UNIT, Computer Interface

Enquiry

Video

Download

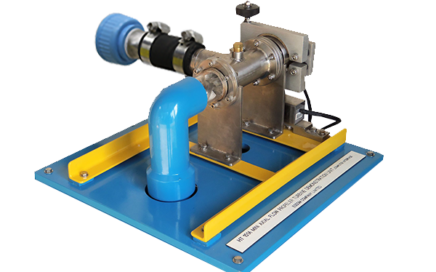

This is a self contained mini axial flow propeller turbine for studying the turbine characteristics with data analysis by computer.

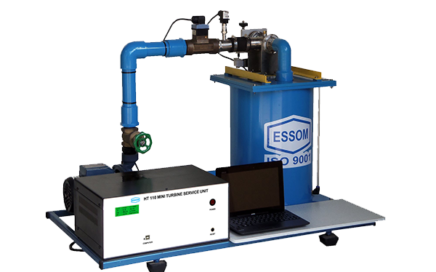

The unit consists of axial flow propeller turbine with a dynamometer, a water storage tank, a low head high flow centrifugal pump, an interface box and input power sensors and software.

The turbine fixed guide vanes direct water to the runner. The interface box includes power supply to the sensors and motor, and a computer interface unit.  It also provides interface ports to sensors and computer.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Racing characteristics

  • Turbine

- Construction:  Metal runner and guide vanes
 :  Stainless steel casing with transparent section for observation of guide vane and runner
- Ratings:  Maximum power over 20 W
  • Dynamometer
:  Mechanical brake
  • Pump

- Motor:  0.37 kW
  • Water storage tank
:  1
  • Sensors with digital display
:  Torque and speed
 :  Flow rate and pressure
  • Computer interface unit

  • Software for data display and analysis by computer (separately supplied)

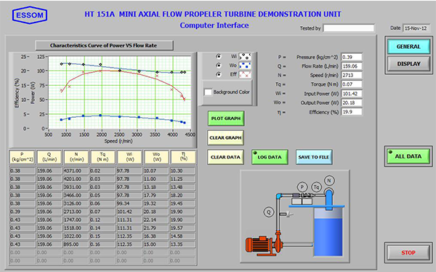

  • WiFi feature for data logging and/or real-time display remotely on smartphone (iOS and Android).
  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 120 x 76 cm
  • Net Weight:  Approx. 7 kg
HT151A-060 Computer Control (computer not included)
This includes HT 151A-050 with the additional accessories for control function and additional software function for equipment controls by computer.
