HT 303 COMPACT FRANCIS TURBINE TEST SET

Enquiry

Video

Download

This is a self contained bench top set for studying the Francis turbine characteristics under various flow rates and heads.

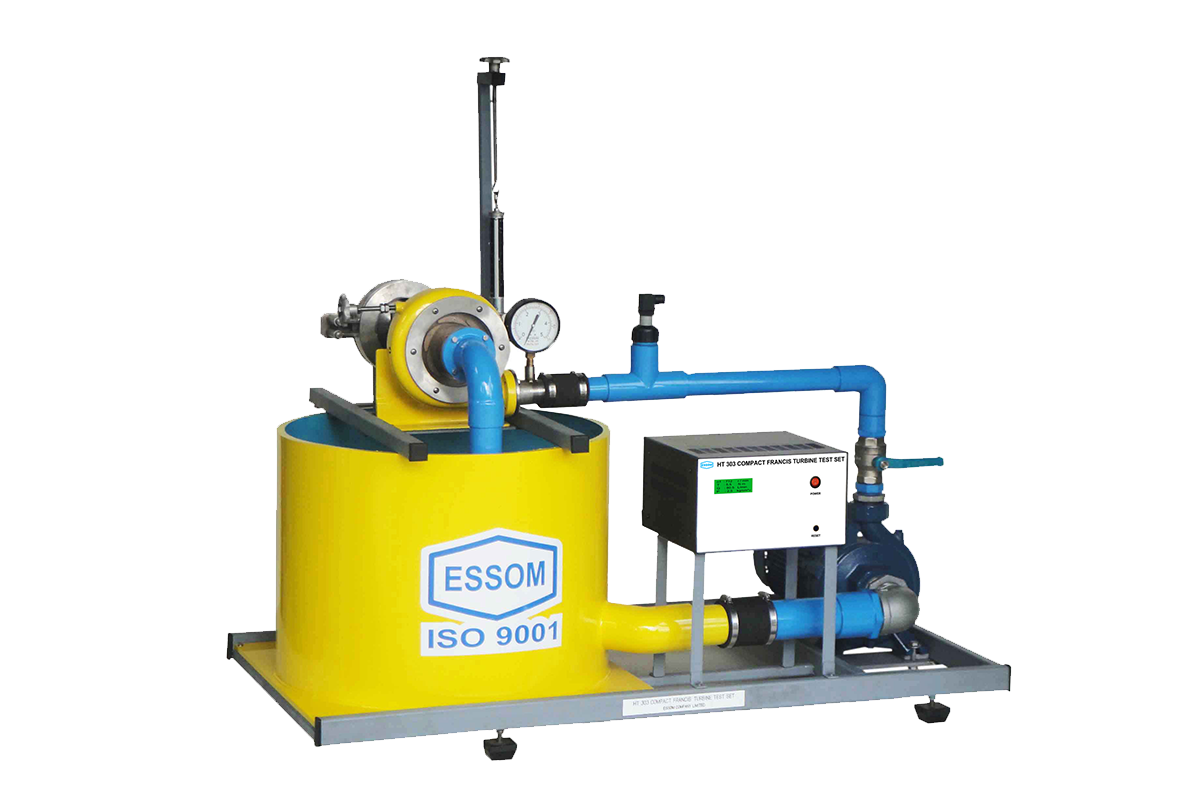

The unit consists of a storage tank, a pump, a turbine, a dynamometer, and measuring instruments.

The adjustable guide vanes direct water spirally to the runner.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Racing characteristics

  • Turbine

- Construction:  Bronze runner with adjustable guide vanes
 :  Non corrosion metal casing with transparent window to observe guide vane position
- Ratings: Over 400 W of brake power
  • Pump ratings

- Motor: 2.2 kW
  • Water storage tank
:  1
  • Dynamometer
: Water cooled mechanical brake absorber with anti splashing system
  • Measuring instruments:

-  Torque:  Spring balance
-  Pressure:  Pressure gauge
-  Sensors with digital display:  Flow rate and speed
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.

  • Net (unassembled) Shipping Dimensions WxLxH: 76 x 140 x 90 cm
  • Net Weight:  Approx. 125 kg
  • HT303S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • HD160SA
Water brake absorber instead of mechanical brake absorber.
  • HP003

Aadvanced inverter for controlling and indicating motor speed as well as for calculating motor input power.

Hence pump efficiency at various speeds can be determined.

  • HT010R

Electric generator with voltage and current digital display, and resistive loads

  • HT303-050
Computer Interface (computer not included)

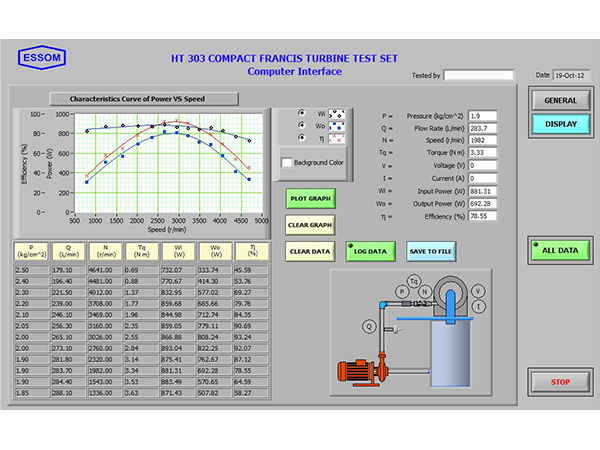

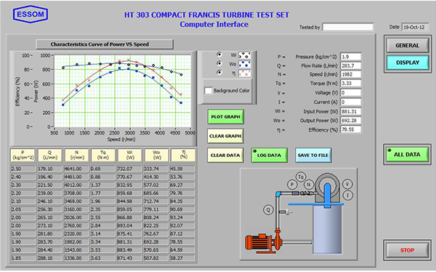

 This includes HT303S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT303-060
Computer Control (computer not included)
                                 This includes HT 303-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT303S
Learning Software
                                          to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
