HT 403 COMPACT CROSS FLOW TURBINE TEST SET

Enquiry

Video

Download

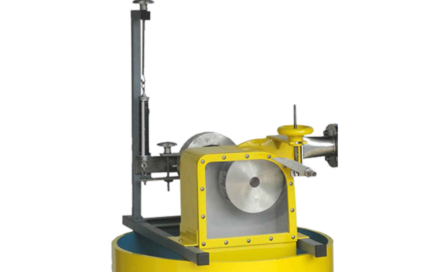

This is a self contained bench top set for studying the Cross Flow turbine characteristics under various flow rates and heads.

The unit consists of a storage tank, a pump, a turbine, a dynamometer, and measuring instruments.

The adjustable nozzle directs the water jet tangentially to the runner.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Racing characteristics

  • Turbine

- Construction:  Stainless steel runner and nozzle
 :  Stainless steel casing with transparent window
- Ratings:  Over 400 W of brake power
 :  Maximum speed approx. 1500 rpm
  • Pump ratings:

- Motor   :  2.2 kW
  • Water storage tank
:  1
  • Dynamometer
:  Water cooled mechanical brake absorber with anti splashing system
  • Measuring instruments

- Torque:  Spring balance
- Pressure:  Pressure gauge
- Sensors with digital display:  Flow rate and speeds
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.

  • Net (unassembled) Shipping Dimensions WxLxH: 76 x 140 x 90 cm
  • Net Weight:  Approx. 125 kg
  • HT403S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • HD160SA
Water brake absorber instead of mechanical brake absorber
  • HP003
Advanced inverter for controlling and indicating motor speed as well as for calculating motor input power. Hence pump efficiency at various speeds can be determined.
  • HT010R
Electric generator with voltage and current digital display, and resistive loads.
  • HT403-050

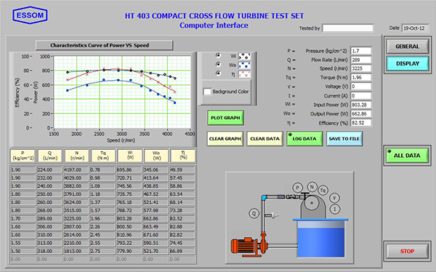

Computer Interface (computer not included)
 This includes HT403S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT403-060
Computer Control (computer not included)
 This includes HT 403-050 with the additional accessories for control function and additional software function for equipment controls by computer
 -  Flow and load control motors
 - Additional software function for equipment controls by computer
  • HT403S
Learning Software
                                          to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
