HT 201 MINI PELTON TURBINE TEST SET

Enquiry

Download

This is a self contained bench top set for studying the Pelton turbine characteristics under various flow rates and heads.

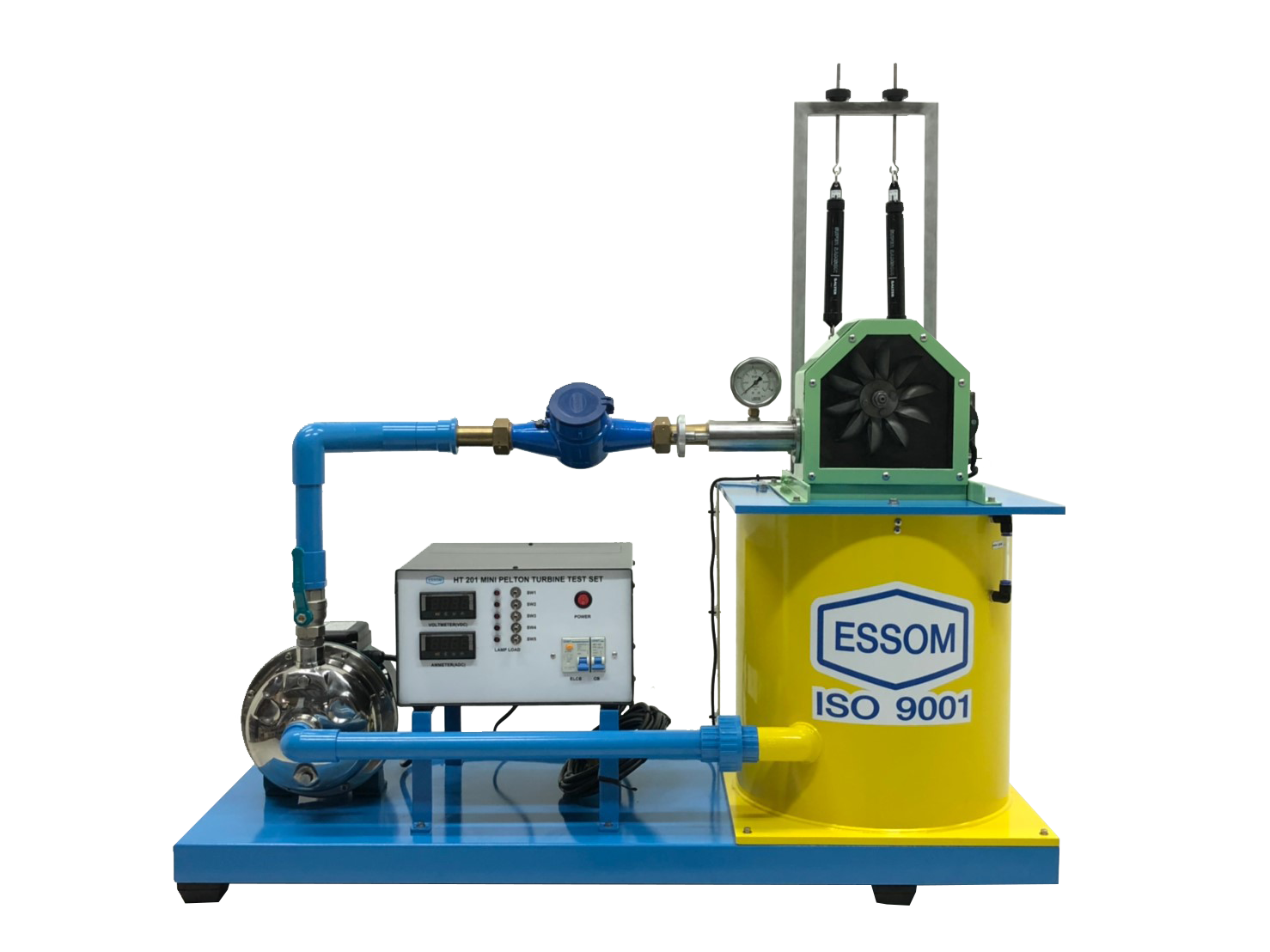

The unit consists of a storage tank on a steel base, a pump, a mini Pelton turbine, a dynamometer, and measuring instruments. The adjustable nozzle directs the water jet to the runner buckets.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Racing characteristics

  • Turbine

- Construction:  Stainless steel runner, nozzle, and casing with transparent window
- Ratings:  Maximum power over 40 W
  • Pump ratings

- Motor:  0.55 kW
  • Dynamometer
:  Mechanical brake
  • Water storage tank
:  1
  • Measuring instruments

- Torque:  Spring balances
- Speed:  Portable tachometer
- Flow rate:  Water meter and stop watch
- Pressure:  Pressure gauge
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.



  • Net (unassembled) Shipping Dimensions WxLxH: 40 x 110 x 80 cm
  • Net Weight:  Approx. 60 kg
HT201SLearning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • HP009
Pressure gauge at pump inlet for pump pressure vs flow rate curve
  • HT010R
Electric generator with voltage and current display and resistive load
  • HT201-050
Computer Interface (computer not included)
 This includes HT201S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT201-060
Computer Control (computer not included)
                                 This includes HT 201-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT201S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
