HP 131 GEAR PUMP DEMONSTRATION UNIT, Computer Interface

Enquiry

Video

Download

This is a bench top unit for studying the gear pump characteristics with data display and analysis by computer.



The unit consists of an industrial gear pump with a motor, a PVC storage tank on a steel base, sensors and software.

It is to be used with oil or glycol. HP 104 Advanced inverter with computer interface unit is required but separately supplied.

Instruction manual is also included.

  • Flow rate vs head at various speeds

  • Pump input, output and overall efficiency at various speeds

  • Pump

-  Maximum flow rate:  20 LPM
-  Maximum head:  30 m water
  • Water storage tank
:  1
  • Accessory

- Pressure relief valve.:  Built-in
  • Speed control
:  HP104 (separately supplied)
  • Sensors with digital display

:  Pressures for pump suction and discharge

 :  Speed and motor input power
 :  Flow rate

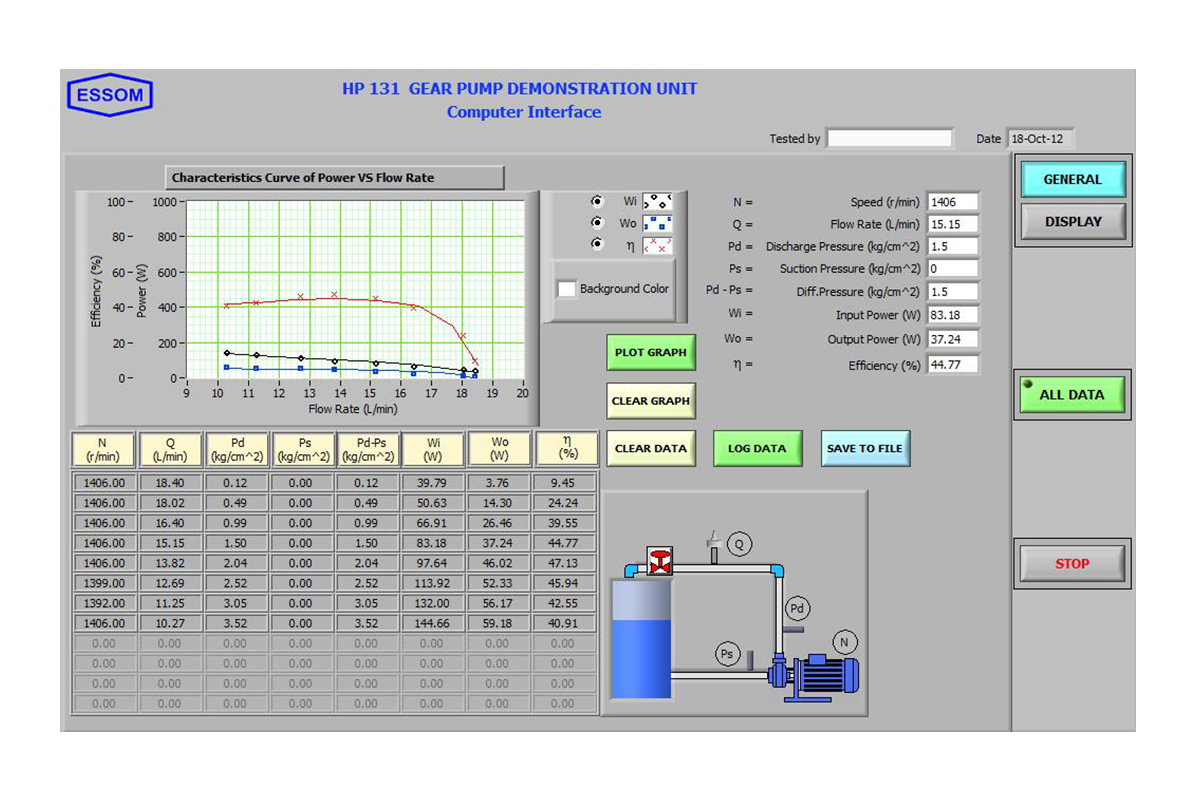

  • Software for data display and analysis by computer (separately supplied)
  • WiFi feature for data logging and/or real-time display remotely on smartphone (iOS and Android).
  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 108 x 75 cm
  • Net Weight:  Approx. 40 kg
  • Pump with different head and flow rate instead of standard pump

  • HP017
Liquid (oil) temperature digital display
  • HP104
Advanced inverter with computer interface unit (required accessory)
  • HP131-060

Computer control (computer not included)



This includes HP 131-050 with the additional accessories for control function and additional software function for equipment   controls by computer

- Flow control motor

- Additional software function for equipment controls by computer
