FLUID MECHANICS > Pump test set

HP 113 COMPACT CENTRIFUGAL PUMP TEST SET, Motor Dynamometer

Enquiry

Video

Download

This is a self-contained bench top unit for studying the centrifugal pump characteristics.

The unit consists of a storage tank and a centrifugal pump with a motor dynamometer on a steel base for measurement of TRUE pump input power and measuring instruments.

Instruction manual is also included.

  • Flow rate vs head at various speeds

  • Pump input, output and overall efficiency at various speeds

  • Pump

-  Maximum flow rate:  80 LPM
-  Maximum head:  18 m water
  • Water storage tank
:  1
  • Speed control
:  Inverter
  • Measuring instruments

- Pressure:  Pressure gauges at pump suction and discharge
- Flow rate:  Water meter and stop watch
- Sensors with digital display:  Speed and torque
  • Power supply
:  220V, 1 Ph, 50 Hz. Other power supply is available on request.



  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 108 x 80 cm
  • Net Weight:  Approx. 62 kg

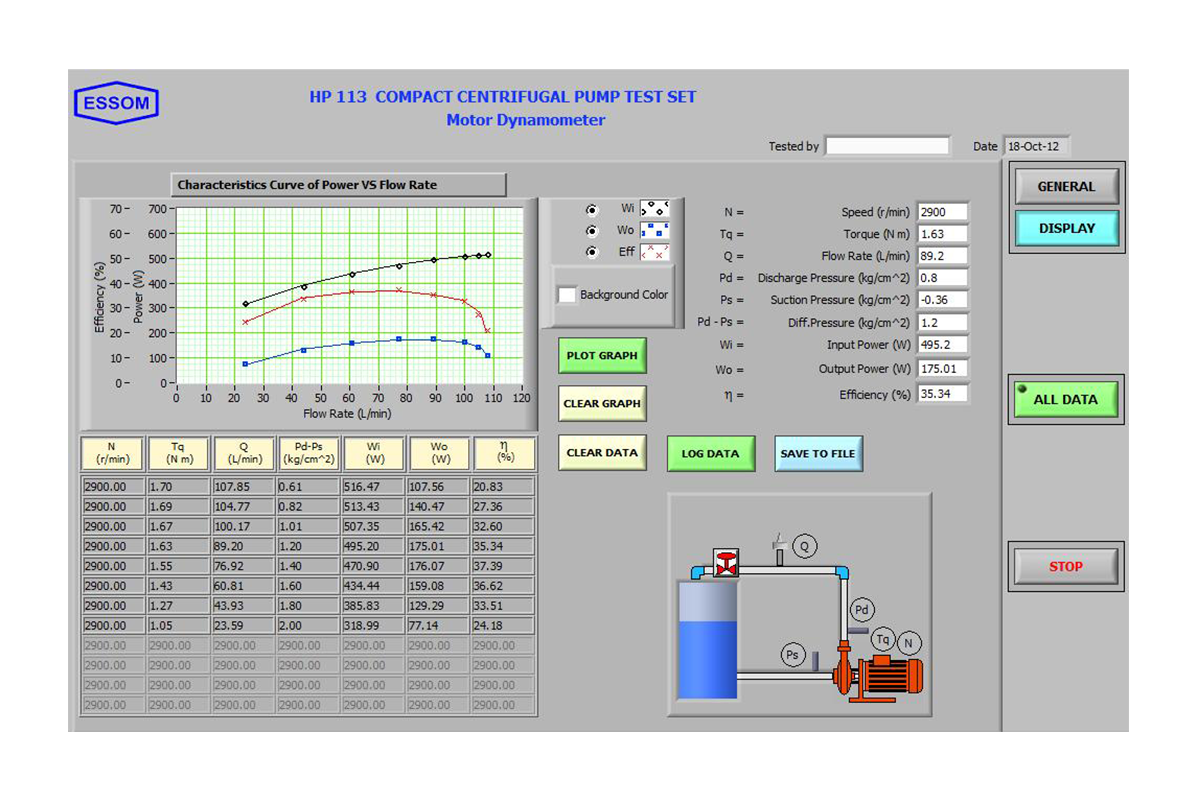

  • HP113S
Learning Software
 to support both online/offline training with data calculation   and analysis by manual data entry from analog measuring instruments.
HP113-050Computer Interface (computer not included)
                                        This includes HP113S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
HP113-060Computer Control (computer not included)
 This includes HP 113-050 with the additional accessories for control function and additional software function for equipment controls by computer
HP113SLearning Software
 to support both online/offline training with data calculation   and analysis by manual data entry from analog measuring instruments.
