HP 111 CENTRIFUGAL PUMP DEMONSTRATION UNIT, Computer Interface

Enquiry

Video

Download

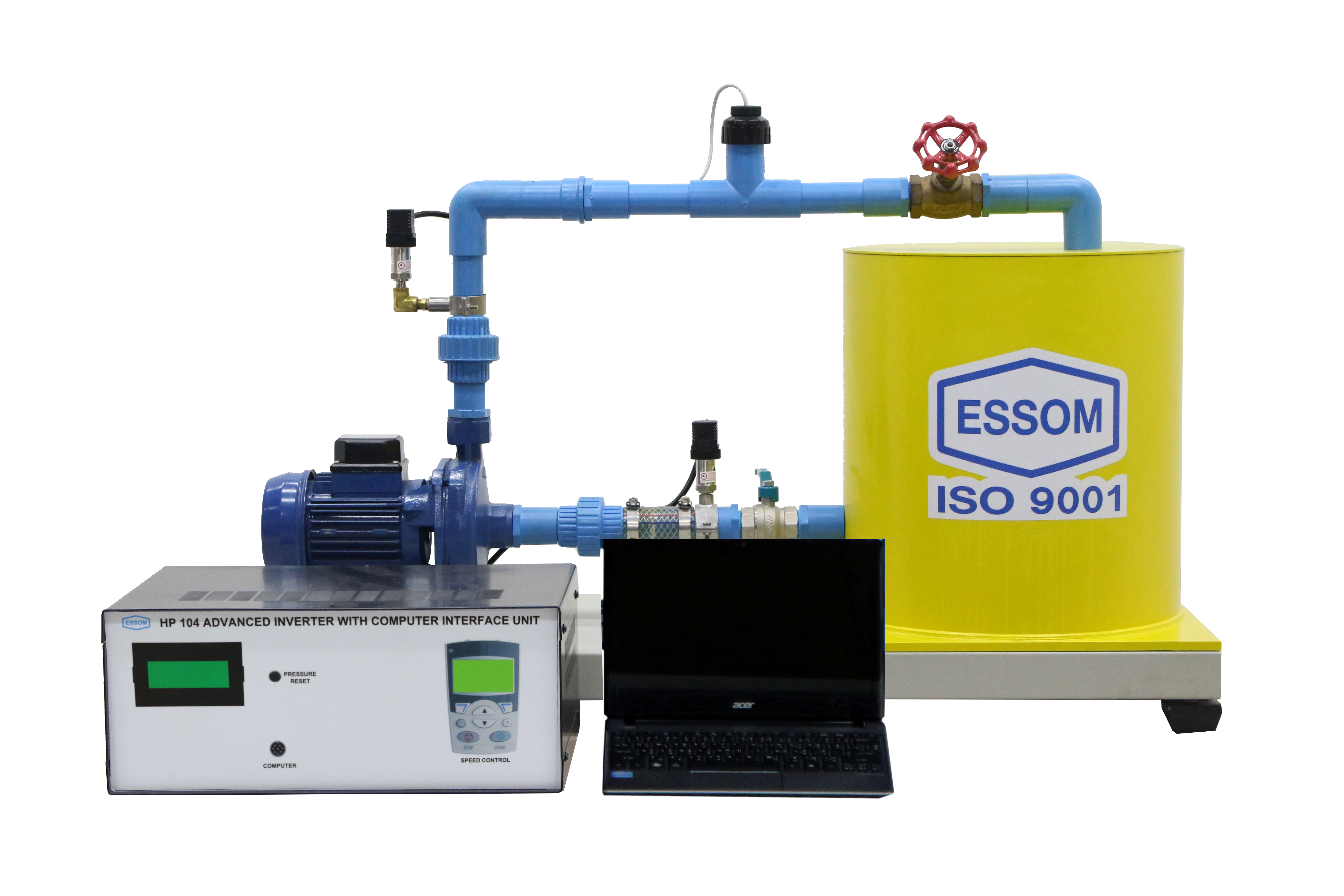

This is a bench top unit for studying the centrifugal pump characteristics with data display and analysis by computer.

The unit consists of an industrial centrifugal pump with a motor, a PVC storage tank on a steel base, software and sensor.

HP 104 Advanced inverter with computer interface unit is required but separately supplied.

Instruction manual is also included.

  • Flow rate vs head at various speeds

  • Pump input, output and overall efficiency at various speeds

  • Pump
-  Maximum flow rate :  80 LPM
-  Maximum head :  18 m water
  • Water storage tank
:  18 m water
  • Speed control
:  HP104 (separately supplied)
  • Measuring instruments
-  Sensors with digital display :  Pressures for pump suction and discharge
:  Speed and motor input power
:  Flow rate
  • Software for data display and analysis by computer (separately supplied)
  • WiFi feature for data logging and/or real-time display remotely on smartphone (iOS and Android)
  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 108 x 75 cm
  • Net Weight:  Approx. 40 kg
  • HP016
Water temperature digital display
  • HP104
Advanced inverter with computer interface unit (required accessory)
  • HP111-060
Computer control (computer not included)
                                     This includes Computer Interface (required HP104), with the additional accessories for control function and additional software function for equipment controls by computer
