HP 145V COMPACT RECIPROCATING PUMP TEST SET, Variable Speed

Enquiry

Video

Download

This is a self-contained bench top unit for studying the reciprocating pump flow rate vs head at various speeds.

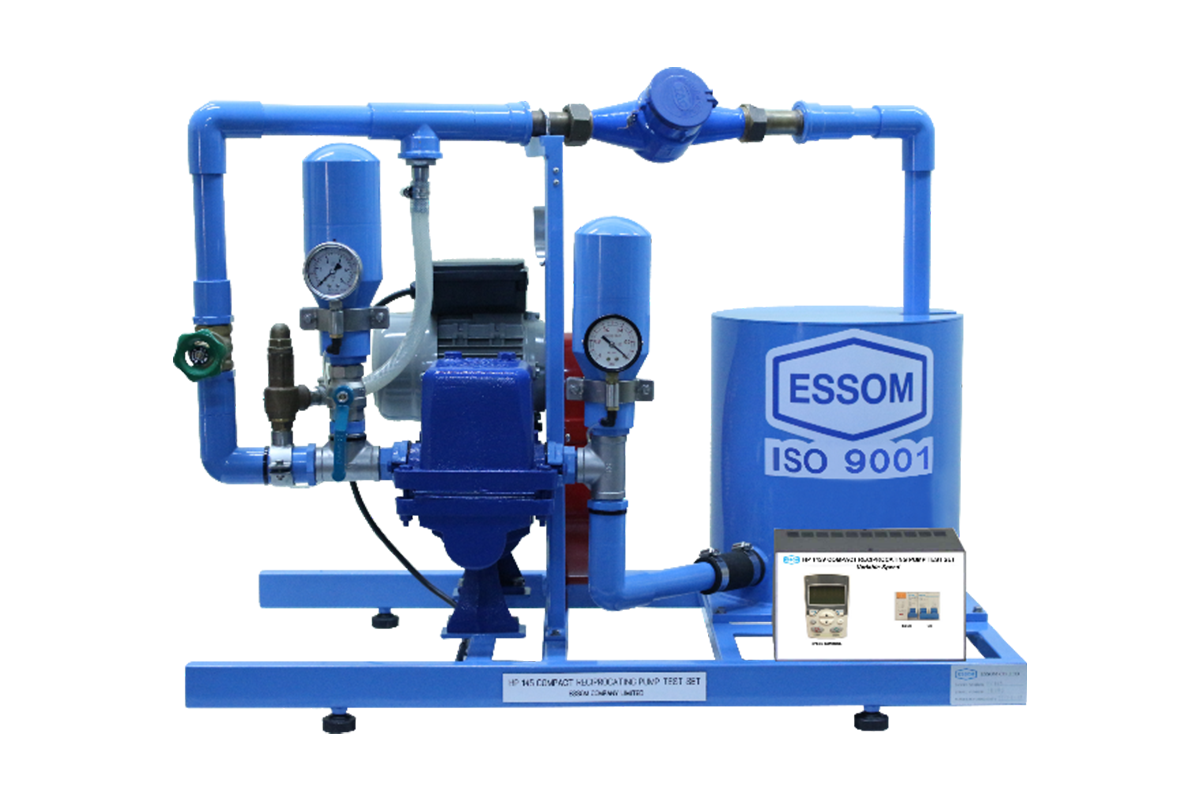

The unit consists of a storage tank and a reciprocating pump with a belt and pulley drive and motor on a steel base, and measuring instruments.

Instruction manual is also included.

  • Flow rate vs head characteristics

  • Pump input, output and overall efficiency at various speeds

  • Effect of pulse chamber

  • Volumetric efficiency

  • Pump

-  Maximum flow rate:  15 LPM
-  Maximum head:  30 m water
  • Speed control
:  Advanced inverter
  • Accessories

-  Pressure relief valve at pump discharge
-  Pulse chambers for pump suction and discharge
-  Isolating valve for discharge pulse chamber
  • Water storage tank
:  1
  • Measuring instruments

-  Pressure:  Pressure gauges at pump suction and discharge
-  Flow rate:  Water meter and stop watch

- Speed and motor input power display

:  Advanced inverter
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.

  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 105 x 80 cm
  • Net Weight:  Approx. 50 kg
  • HP145VS
Learning Software
                                   to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  •       HP145VS
Learning Software
                             to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments
