HP 125V COMPACT TURBINE PUMP TEST SET, Variable Speed

Enquiry

Video

Download

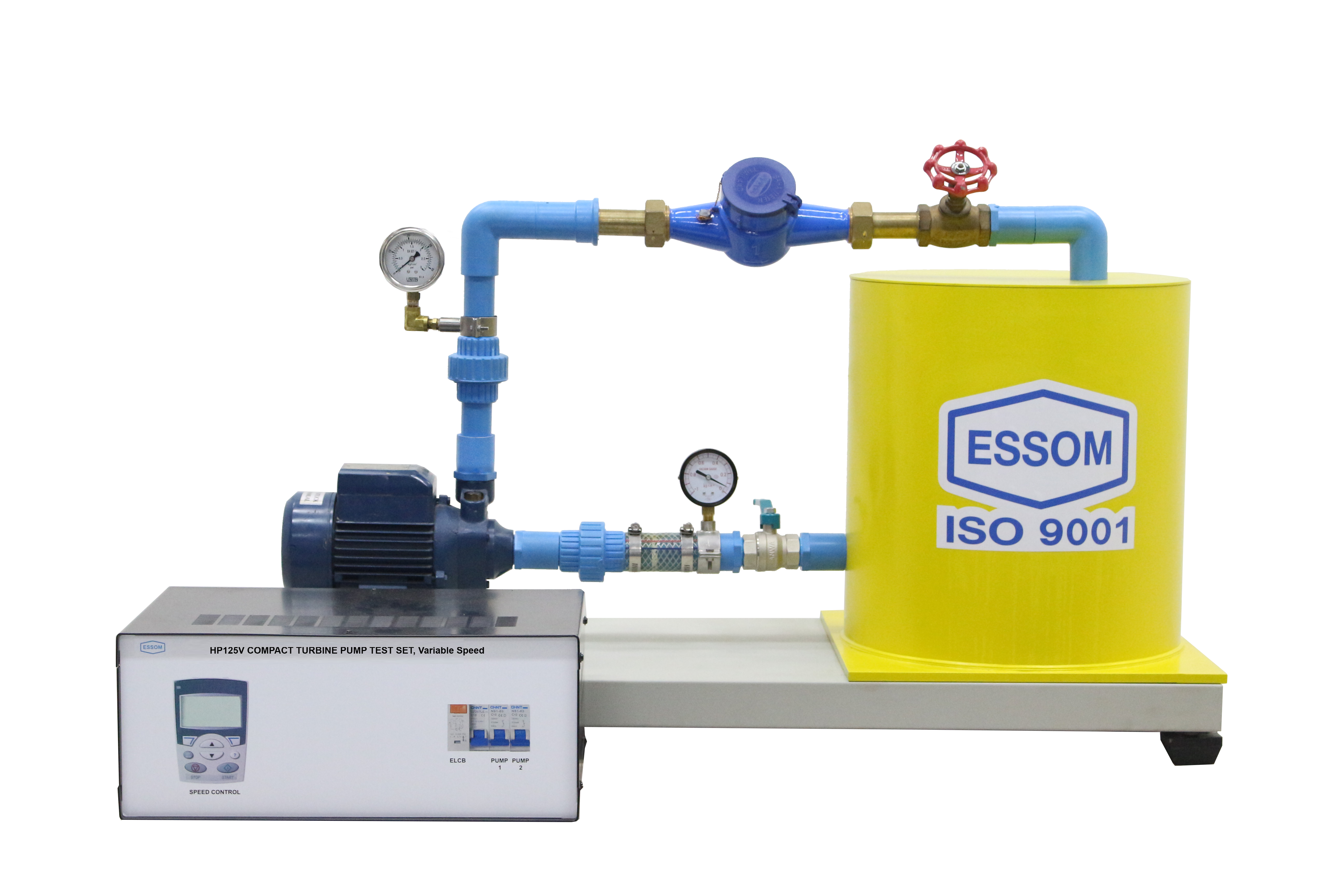

his is a self-contained bench top unit for studying the turbine pump flow rate vs head at various speeds.

The unit consists of a storage tank and a turbine pump with motor on a steel base, advanced inverter and measuring instruments.

Instruction manual is also included.

  • Flow rate vs head at various speeds

  • Pump input, output and overall efficiency at various speed

  • Pump

-  Maximum flow rate:  35 LPM
-  Maximum head:  30 m water
  • Water storage tank
:  1
  • Speed control
:  Advanced inverter
  • Water storage tank
:  1
  • Measuring instruments

-  Pressure:  Pressure gauges at pump suction and discharge
-  Flow rate:  Water meter and stop watch
-  Speed and motor input power display:  Advanced inverter
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 108 x 70 cm
  • Net Weight:  Approx. 25 kg
  • HP125VS
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.


  • HP125VS
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
