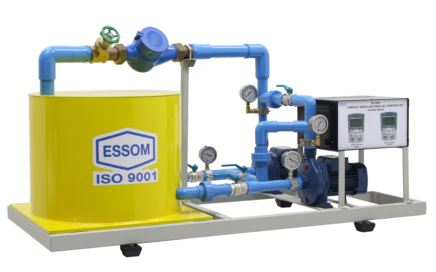

HP 305V COMPACT SERIES AND PARALLEL PUMP TEST SET, Variable Speed

Enquiry

Video

Download

This is simple self-contained bench top unit for studying the series and parallel pump characteristics at various speeds.

The unit consists of two sets of centrifugal pump with motor and a storage tank on a steel base, advanced inverters, and measuring instruments. By manipulating flow control valves, each pump can be operated individually or both pumps connected in series or parallel.

Instruction manual is also included.

  • Flow rate vs head at various speed for individual pump

  • Flow rate vs head for two pumps connected in series or parallel

  • Pump input, output and overall efficiency at various speed

  • Pump

- Maximum flow rate:  80 LPM
- Maximum head:  18 m water
  • Speed control
:  Advanced inverters
  • Water storage tank
:  1
  • Flow control
:  A set of piping with valves to operate the two pumps individually, in series or parallel
  • Measuring instruments

- Pressures:  Pressure gauges at pump suction and discharge
- Flow rate:  Water meter and stop watch
- Speed and motor input power display:  2 advanced inverters
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 60 x 110 x 70 cm
  • Net Weight:  Approx. 40 kg
  • HP305VS
Learning Software
                            to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.




HP305VSLearning Software
                             to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
