HP 119V CENTRIFUGAL PUMP TEST SET

Enquiry

Video

Download

This is a self-contained set for studying the centrifugal pump characteristics at various speeds.

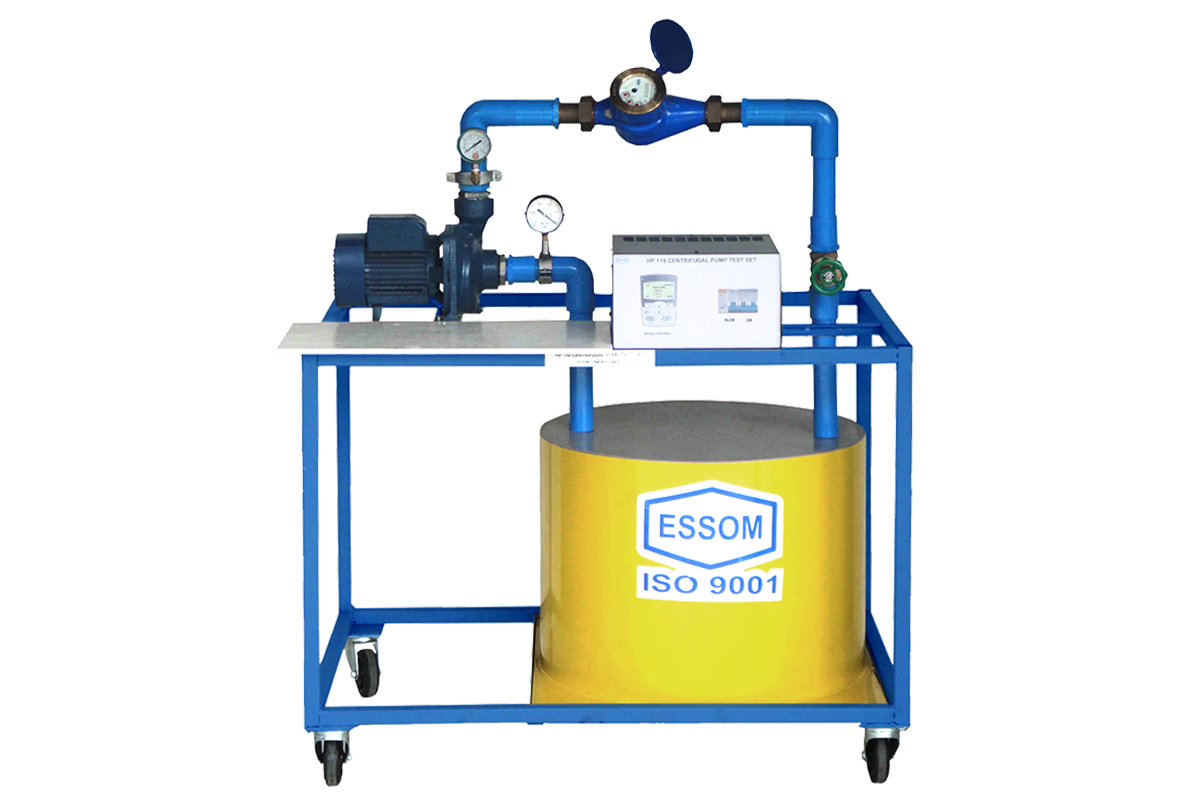

The unit consists of a storage tank, a centrifugal pump with a motor, an advanced inverter, and other measuring instruments. The unit is on wheels

Instruction manual is also included.

  • Flow rate vs head at various speeds

  • Pump input, output and overall efficiency at various speeds

  • Pump

-  Maximum flow rate:  150 LPM
-  Maximum head:  30 m water
  • Water storage tank
:  Approx. 100 L, PVC
  • Speed control
:  Advanced inverter.
  • Measuring instruments

-  Pressure:  Pressure gauges at pump suction and discharge
-  Flow rate:  Water meter and stop watch
-  Speed and motor input power display:  Advanced inverter
  • Power supply
:  220 V, 1 Ph, 50Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 75 x 110 x 130 cm
  • Net Weight:  Approx. 110 kg
  • HP115VS
Learning Software
 to support both online/offline training with data calculation   and analysis by manual data entry from analog measuring instruments.
  • HP015
Measuring tank
  • HP119-002A
Motor dynamometer with an inverter, torque and speed digital display instead of advanced inverter.
HP119-050Computer Interface (computer not included)
 This includes HP119VS and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • Pump of different size or characteristic curve can be supplied on request.

  • Other optional equipment, please contact manufacturer ([email protected])

HP119VS          Learning Software
 to support both online/offline training with data calculation   and analysis by manual data entry from analog measuring instruments.
