MM 571 BAR LINKAGES SET

Enquiry

Video

Download

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

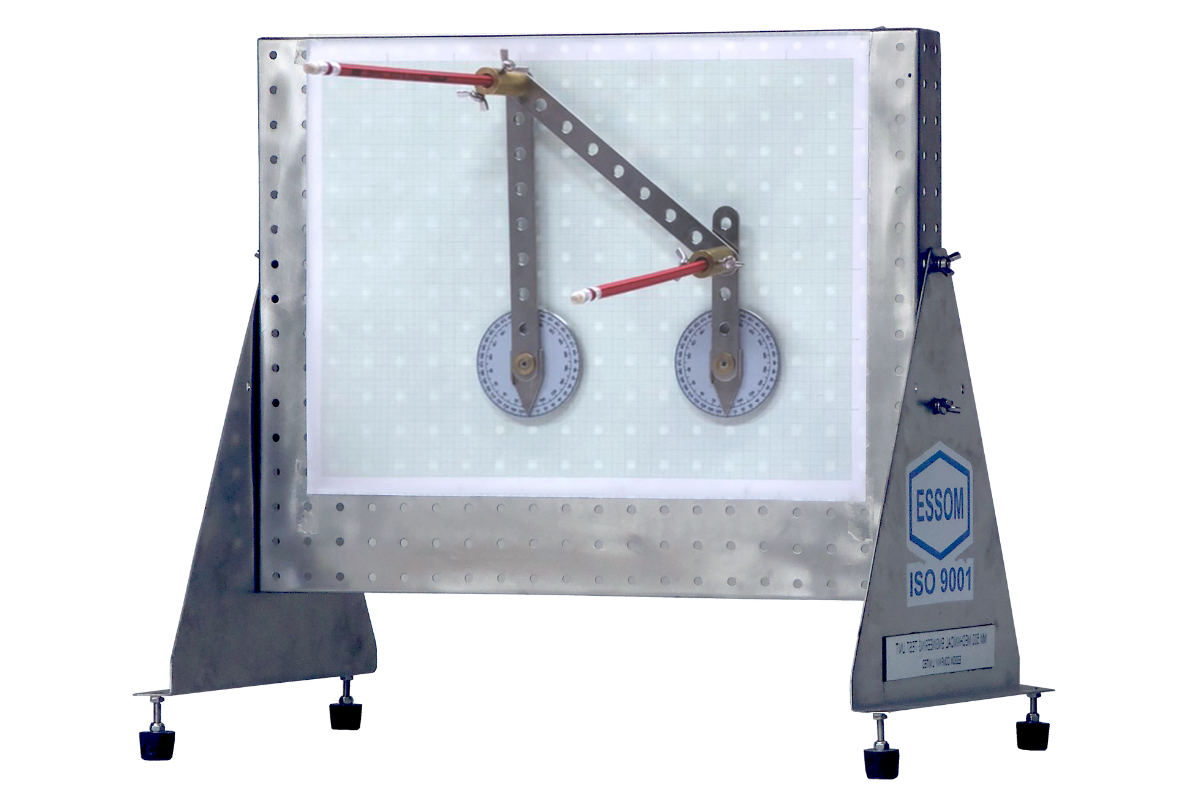

Over 20 perforated bars of different lengths and joints are used for assembly to form different linkages. The bar can accommodate a pencil to trace the movement of the linkages on paper.

Instruction manual is also included.

  • Four bar linkages.
  • Straight line linkages.
  • Pantograph
  • Ackermann steering
  • Bars with holes of different lengths
  • Pencil holder
  • Graph paper
  • Fixed joint attachments
  • Movable joint attachments
  • Plastic box
  • Net (unassembled) Shipping Dimensions WxLxH:  45 x 36 x 14 cm
  • Net Weight:  Approx. 5 kg
  • MM571S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
