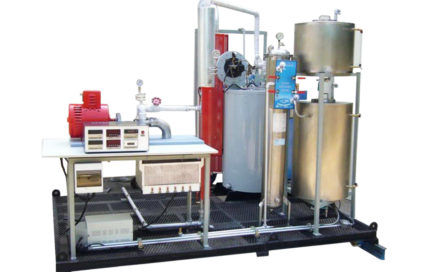

TH 135 COMPACT STEAM TURBINE POWER PLANT, 0.5 kW

Enquiry

Video

Download

The unit is designed to simulate modern steam turbine power plant. Main components consist of a feed water system, a small industrial boiler, steam turbine, alternator and inverter with lamp load, condenser with condensate tank and pump, and cooling tower. Accessories include fuel tank, fuel flow meter, feed water meter, and stack.

The boiler uses diesel fuel to generate saturated steam at a set pressure to run the steam turbine. Exhaust from the turbine is saturated vapor at atmospheric pressure. The vapor is condensed in a condenser and condensate is returned to the feed tank for reuse. Public water is treated and stored in the feed tank. A pump draws water from the feed tank to the boiler.

The saturated steam from the boiler may be superheated by a super heater (optional). In this case the turbine is also modified to superheated steam run.

An alternator is connected to the turbine through a synchronous belt-gear system. An inverter converts alternator DC output to AC for lamp load.

Safety features include those for boiler, turbine over speed, guard and safety switch.

Instruments are provided for measurement of pressures, temperatures, speed, voltage and current. A color touch screen monitor are provided for data display, simple data analysis and control (optional).

Instruction manual is also included.

  • Measurement of feed water and fuel flow rates.

  • Boiler efficiency, turbine generator efficiency, and overall power plant efficiency.

  • Condenser heat transfer efficiency.

  • Cooling tower efficiency.

The plant set consists of:
Boiler Unit
- Type: Vertical, water tube
- Rated heat output: Approx. 63 kW (53,900 kcal/h)
- Equivalent evaporation: Approx. 100 kg/h steam
- Maximum working pressure: 10 kg/cm2 (0.98 MPa)
- Measuring instruments: Pressure gauge for steam outlet
 : Temperature sensors for feed water, boiler outlet and exhaust stack.
- Safety devices: Safety valve
 : Level gauge and switch at boiler
 : Low level alarm
- Boiler accessories: Steam separator
 : Steam pressure regulator
 : Feed water pump
 : Stack, 2 x 2.4 m with 2 elbows
  • Burner:

- Type: Forced draft, pressure atomized
- Control: On-Off
- Fuel: Diesel or kerosene
  • Fuel system
: Fuel tank, fuel strainer and fuel meter
  • Feed water system
: Resin filter for public water.
 : Soft water tank
 : Water meter
 : Stopwatch
  • De-ionized chemical
: Automatic feed system
  • Power supply
:380 V, 3 Ph, 50Hz. Other power supply is available on request.
Steam Turbine
  • Technical data:

- Type: Single stage, twin nozzle impulse turbine
- Construction: Vacuum cast inconel wheel
 : Stainless steel casing, shaft and nozzle
 : Ceramics and steel bearing
- Maximum mechanical output: Approx. 0.5 kW (required TH136-016)
- Maximum electrical output: Approx. 0.3 kW
- Maximum speed: Approx. 33,000 rpm
- Exhaust pressure: Atmospheric
  • Measuring instruments

- Pressure: Pressure gauge for steam inlet
 : Water manometer for turbine outlet
- Sensor with digital display: Speed for turbine
 : Temperature for steam inlet and outlet
Electrical output system
 This consists of Alternator, Inverter and Lamp Load.
  • Technical data:

- Alternator: 1.5 kW power
- Inverter: 220V, 1 ph, 50Hz
- Lamp load: 400W with individual switch
  • Measuring instruments:

- Sensor with digital display: Alternator speeds
 : Inverter voltage and current
Condenser (TH 101-013)
  • Description:
The unit allows a study of heat transfer in a heat exchanger as well as recover condensate for reuse. The unit consists of a counter flow steam tube heat exchanger and instruments for measurement of temperatures, cooling water flow rate.
  • Technical data:

- Type: Steam tube
- Accessories: Cooling water pump
 : Condensate transfer pump
 : Condensate tank
 : Strainer
  • Measuring instruments:

- Flow rate: Water meter
- Sensor with digital display: Temperature for condensate, cooling
 water inlet and outlet
Cooling Tower (TH 135-014)
  • Description:

 This is an educational unit for recovering of condenser cooling water as well as studying of cooling tower efficiency. A cooling tower is recommended to recycle cooling water in the case TH101-013 condenser is used. The unit consists of a cooling tower unit, a storage tank, a circulating pump and temperature gauges.
  • Technical data:

- Cooling tower capacity: Up to 15 RT
- Circulating pump: 1
  • Measuring instruments:

- Sensor with digital display: Temperature (1) for wet bulb

Shipping dimension and weight          : One 20 ft. container

  • TH135S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH101-021
Sand filter for water with suspended materials
  • TH100-022
Portable pH and TDS meter
  • TH100-023
Hardness water tester
  • TH101-021
Sand filter for water with suspended materials
  • TH101-022
Carbon filter for water with odour or rust
  • TH135-005EBA
Electric boiler instead of diesel boiler.


Capacity:

 - Equivalent evaporation          :  Approx. 100 kg/h steam
 - Maximum working pressure         :  10 kg/cm2 (0.98 MPa)

  • Other type of fuel is available (i.e. LPG) on request.
  • TH135-020
Electric Super Heater


Description



The unit provides superheated steam for other use such as for a stream turbine. Saturated steam from the boiler is further heated in the electric super heater. Instruments are provided for Measurement of temperature and pressure. The test is to be carried out at low steam rate and compare thermal efficiency for saturated and superheated steam.



Typical experiment

 - Effect of superheated steam on prime mover efficiency


Technical data

 - Capacity     : 4.5 kW
 - Measuring instruments     : Temperature sensor for superheat steam outlet
 - Temperature control unit to limit temperature of superheat steam to not more than 250°C
 - Power supply         : 380 V, 3 Ph, 50Hz.
  • TH135-050
Computer Interface (computer not included)
 This includes TH135S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH135-060
Computer Control (computer not included)
 This includes TH 135-050 with the additional accessories for control function and additional software function for equipment controls by computer





TH135SLearning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
