TH 260 BOILING HEAT TRANSFER UNIT

Enquiry

Video

Download

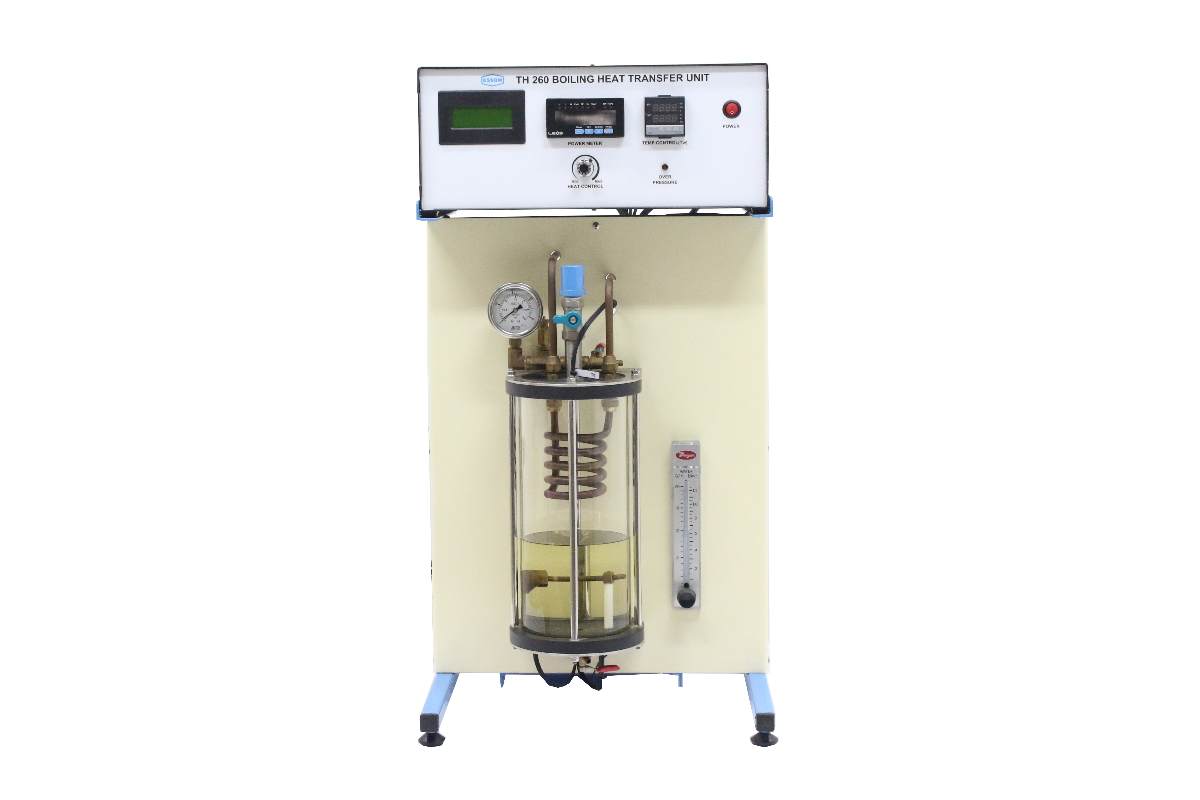

This is a table top unit for observation of evaporation process in a heated tank.

The unit consists of a transparent tank, enclosed at top and bottom. At the bottom of the tank is a small heating cylinder and a special liquid simulating a fire tube heating water in a boiler. The vapor is condensed by a water cooled condenser at the top of the tank and the condensed liquid returns to the bottom for reboiling.

Instruments are provided for measurement of temperatures, pressure, cooling water flow rate, and input power.

  • Observation of evaporation forms.



  • Determination of heat transfer efficient.



  • Effect of pressure and temperatures on evaporation.

  • Tank
- Borosilicate glass : 130 mm inside diameter
- Height : 300 mm
  • Heater
- Power : 320 W with dimmer switch.
  • Heater surface temperature control unit
: 1
  • Condenser
- Size : 80 mm diameter copper coil
  • Safety features
- Pressure relief valve : 1 adjustable
- Pressure switch : 1 adjustable
  • Boiling liquid
: Low boiling point liquid
  • Measuring instruments
- Pressure : Pressure gauge 0-3 kg/cm2
- Flow rate (cooling water) : Maximum approx. 1.2 Lpm rotameter or equal
- Input power : Watt meter
- Sensors with digital display : : Temperature for heater surface, boiling liquid, vapor, and cooling water inlet and outlet
- Temperature control unit to limit temperature of heater surface.
  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.


Net (unpacked) shipping dimensions WxLxH  : 47 x 77 x 87 cm

Net weight  : Approx. 34 kg

  • TH260S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH260-001
Cooling pail for ice water for operation at high room temperature.
  • TH260-050
Computer Interface (computer not included)
 This includes TH260S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display
 remotely on smartphone (iOS and Android)

  • TH260S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
