CF 102 FLUID MIXING TANK

Enquiry

Video

Download

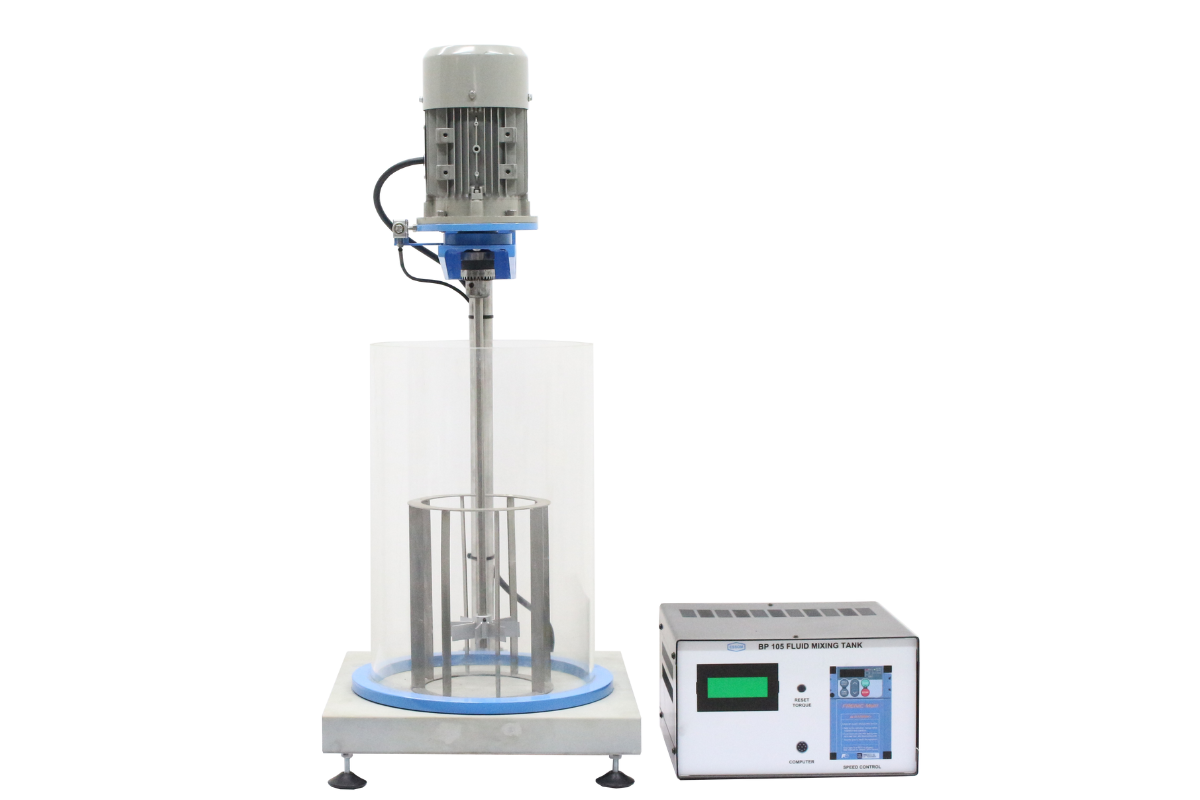

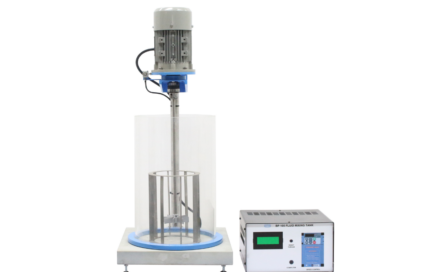

The fluid mixing tank is a bench top unit for a study of mixing two materials.

The unit consists of a mixing tank with removable baffles and a drain valve. A variable speed agitator is mounted on a column with base and can be moved vertically to facilitate impeller installation or removal. Various types of impellers are provided.

Instruction manual is also included.

  • Mixing/flow visualization.

  • Power/speed of different impellers.

  • Mixing of solid/liquid suspensions.

  • Mixing of two immiscible liquids.

  • Mixing quality vs mixing time.

  • Prediction of power for large scale mixers.

  • Mixing tank

- Materials:  Acrylic
- Capacity:  Approx. 30 L
  • Agitator speed
:  Upto 900 rpm
  • Speed control
:  Inverter
  • Digital display
:  Speed
 :  Torque
 :  Power
  • Impellers

- Turbine blade:  1 ea.
- Propeller blade:  1 ea.
- Flat blade paddles:  1 ea.
- Flat blade paddles with holes: 2 ea.
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 45 x 45 x 90 cm
  • Net Weight:  Approx. 30 kg
  • CF101-001
Additional impellers
  • CF102-003
Removable heat transfer coil using outside water supply for cooling or heating the mixture.
  • CF102-005
Air supply
  • CF102S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
