HB 015 BERNOULLI’S THEOREM APPARATUS

Enquiry

Download

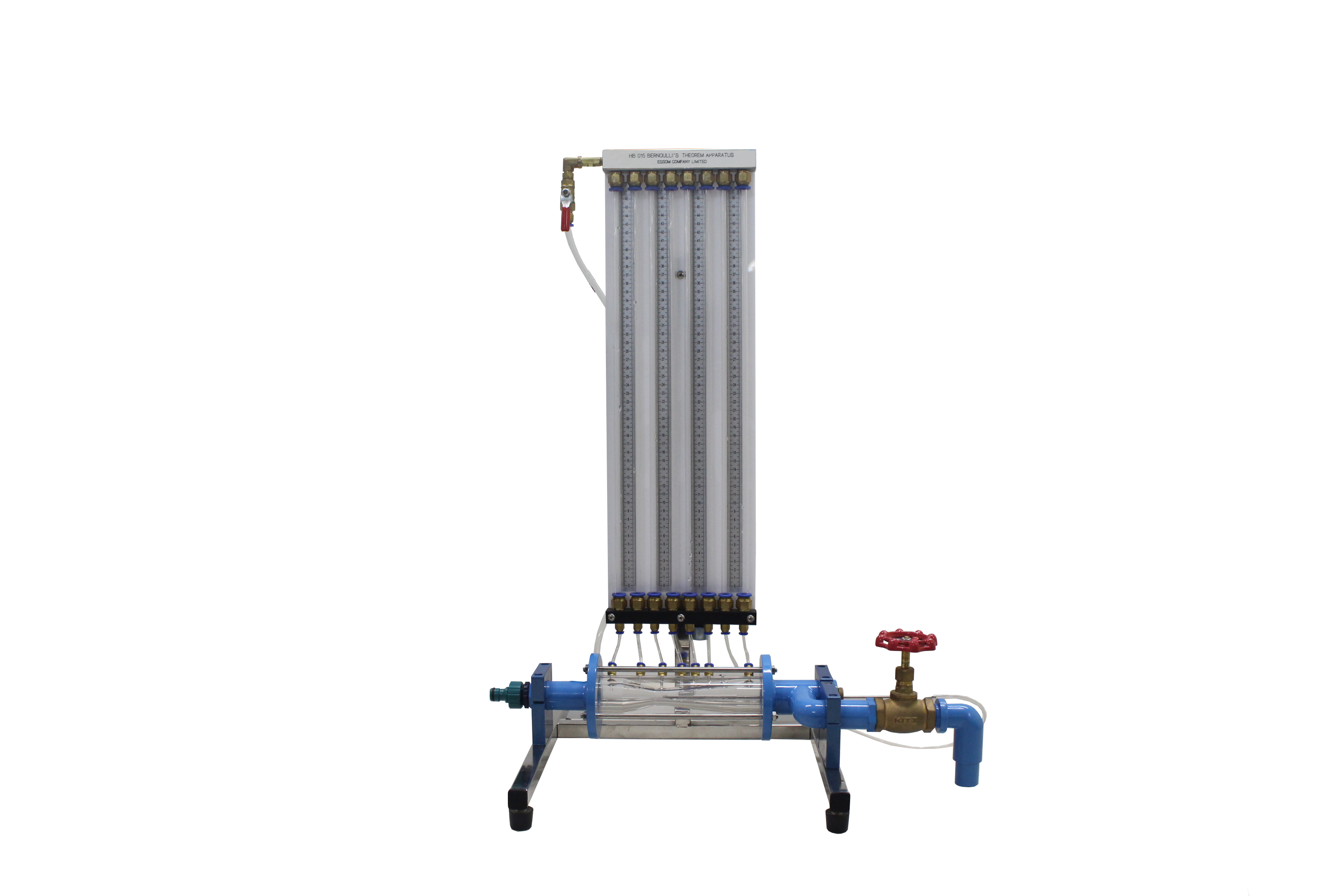

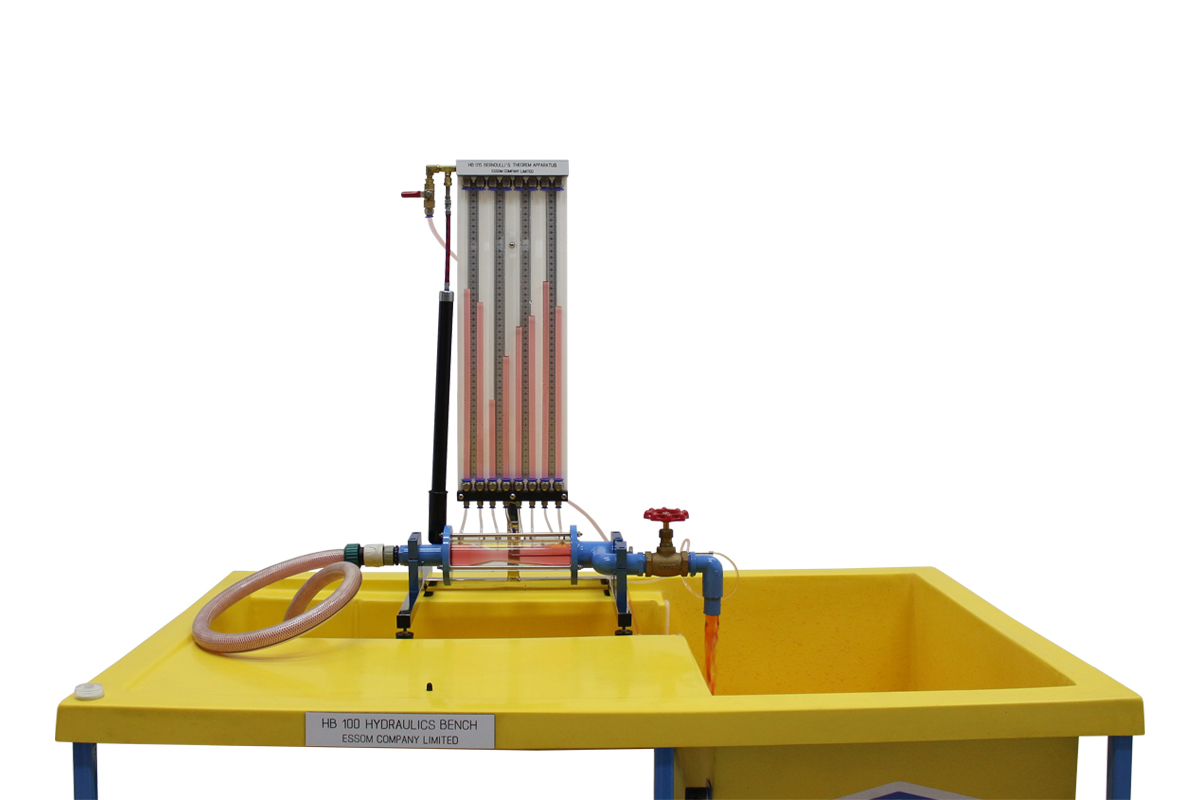

Bernoulli’s theorem is applied on flow through a clear acrylic Venturi tube. The apparatus is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

Static pressures at various points along the wall of a transparent Venturi tube are directly measured on a manometer equipped with a vent valve. A movable stainless steel total head probe is also provided. Flow through the Venturi tube is controlled by a valve at the outlet. As a primary flow measuring device, coefficient of discharge for the Venturi tube can also be determined.

Instruction manual is also included.

  • Application of the Bernoulli equation

  • Measurement of the meter coefficient of discharge at various flow rates

  • Comparison of experimental results with theoretical predictions

  • Diameters
:  28 mm inlet with 14 mm throat
  • Water manometer
:  8 tubes
  • Total head probe
:  1
  • Net (unassembled) Shipping Dimensions WxLxH: 36 x 60 x 83 cm
  • Net Weight:  Approx. 6 kg
  • HB015S
Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • HF011-035
Variable area flow meter, up to 35 LPM for flow rate indication
HB015S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
