HB 019 ORIFICE AND JET FLOW

Enquiry

Download

This equipment allows determination of coefficient of velocity and coefficient of discharge under various constant heads for two different orifice diameters. Comparison of jet trajectory with that by theory of mechanics can also be made. The equipment is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

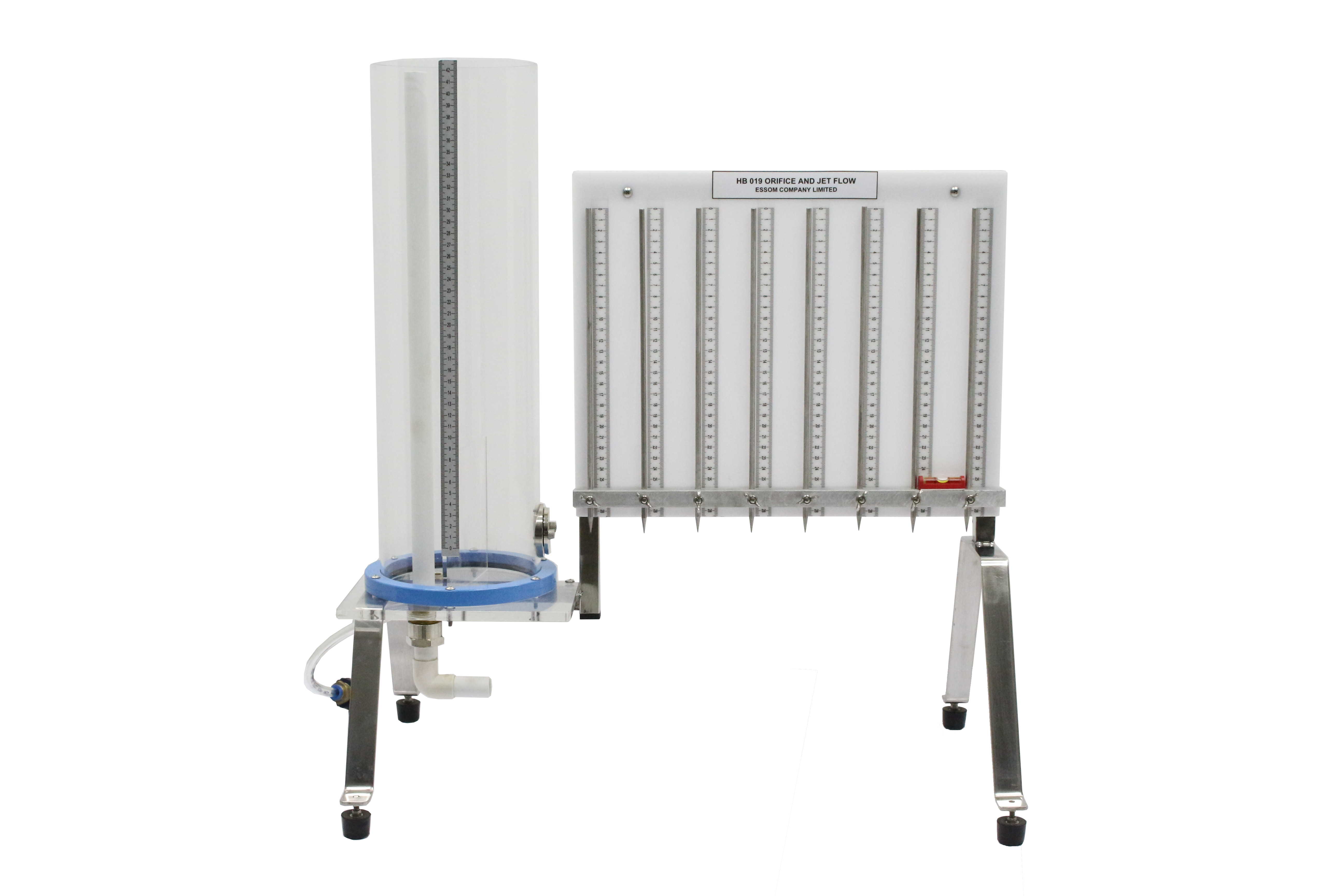

The equipment consists of a removable clear acrylic cylinder with sharp edge orifice installed at the lower inside wall of the cylinder. An adjustable overflow allows various constant heads for the test and trajectory of the jet is indicated by probes on the jet path. Heights of the probes are indicated by scales. The apparatus rests on adjustable footings and a level gauge is provided

Instruction manual is also included.

  • Comparison of the actual and theoretical outlet velocity

  • Calculation of discharge coefficient

  • Determination of the contraction and velocity coefficients

  • Determination of discharge characteristics (jet trajectory) for an orifice mounted in the side of a vertical tank and comparison with simple theory

  • Orifice diameter
:  2 different sizes
  • Trajectory probes
:  8, stainless steel
  • Acrylic
:  1
  • Measuring cup
:  1 L
  • Net (unassembled) Shipping Dimensions WxLxH:  36 x 68 x 70 cm
  • Net Weight:  Approx. 10 kg
  • HB019S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HB019-001
Bottom discharge with traverse mechanism 0.01 mm division and wire for measurement of jet diameter, pitot tube to measure jet velocity and three orifices.
HB019S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
