HB 022 FREE AND FORCED VORTEX, Rotating Paddle

Enquiry

Video

Download

This equipment is designed to produce and measure free and forced vortices. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

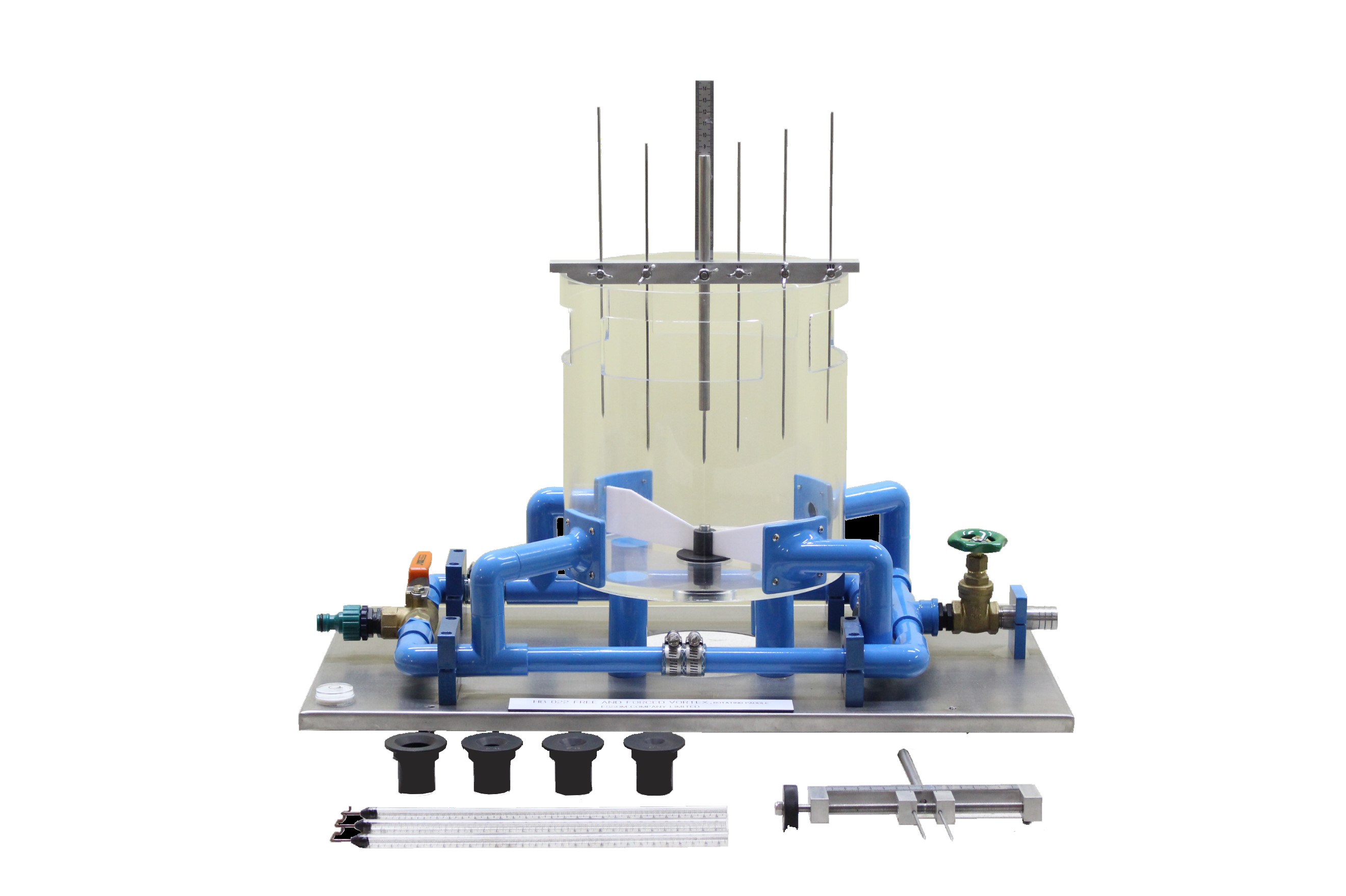

The equipment consists of a clear acrylic cylinder on a plinth. The free vortex is generated by water discharging through an interchangeable orifice at the base of the cylinder and the resulting profile is measured by a combined caliper and depth scale. The forced vortex is generated by a paddle at the base of the cylinder which is rotated by jets of water, and the profile is measured by a series of depth gauges. The velocity at any point in the free and forced vortices may be measured using a pitot tube.

Instruction manual is also included.

  • Determination of the surface profile of a free and forced vortices

  • Determination of velocity

  • Acrylic cylinder
:  1
  • Orifice diameters
:  4 different sizes
  • Distance from center of depth probes

:  0 to 110 mm


  • Pitot tube measuring points
:  3 different radiuses

  • Net (unassembled) Shipping Dimensions WxLxH: 36 x 68 x 40 cm
  • Net Weight:  Approx. 8 kg
  • HB022S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

HB022S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
