HB 016 FLOW METERS

Enquiry

Download

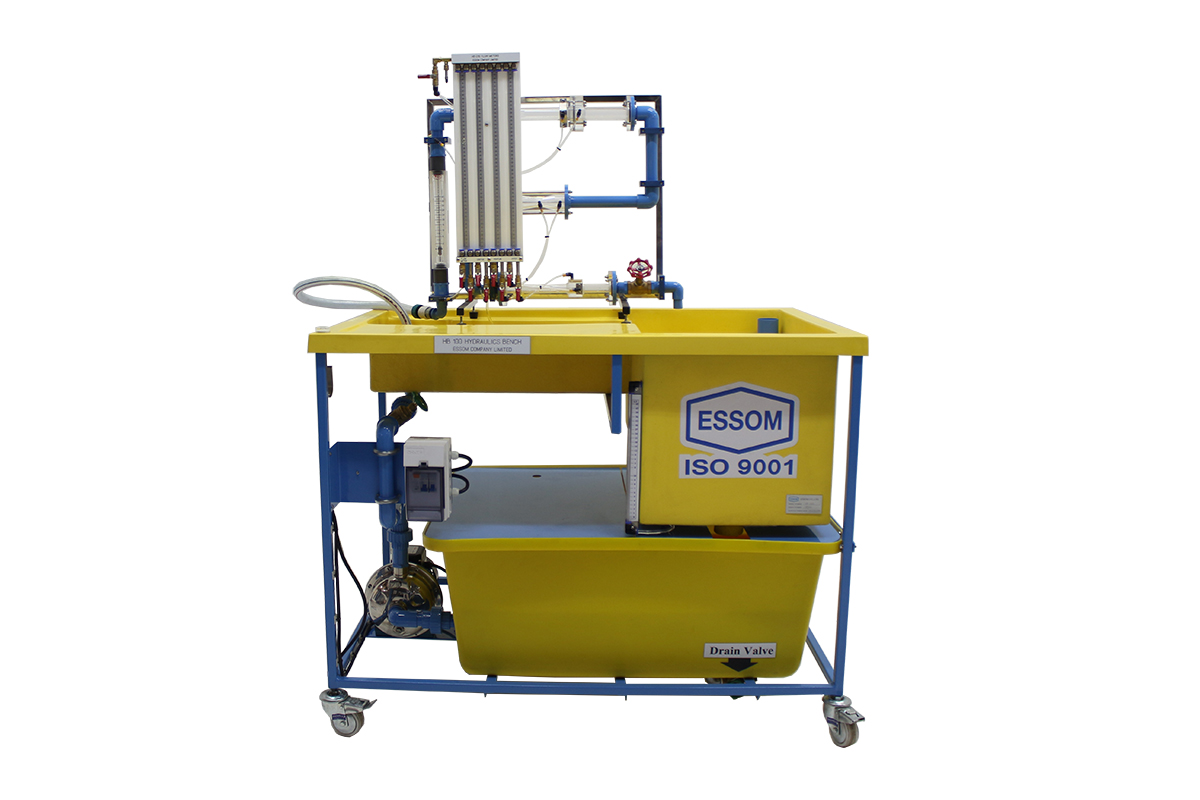

This equipment determines the coefficients of discharge for different flow measuring devices. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

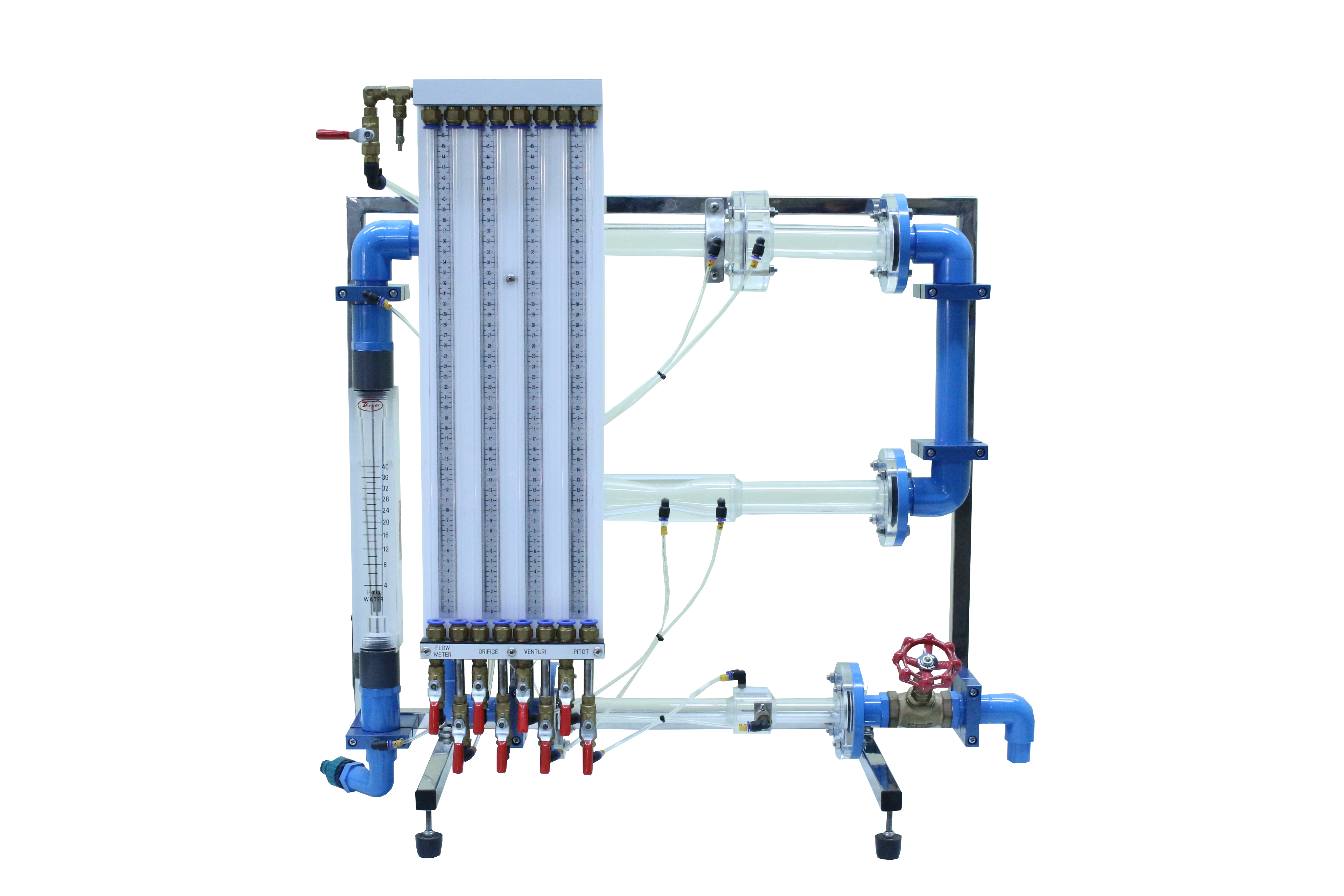

The equipment consists of a Venturi tube, an orifice plate, and a Pitot tube, made from a clear acrylic, connected in series. Pressure drop across each device is connected to a water manometer bank with a vent valve and a hand air pump.

Instruction manual is also included.

  • Accuracy of different flow meters

  • Losses and k value

  • Calculation of the coefficient of discharge

  • Variable area flow meter

:  1


  • Venturi tube
:  1
  • Orifice plate
:  1
  • Pitot tube
:  1
  • Water manometer
: 8 tubes
  • Net (unassembled) Shipping Dimensions WxLxH: 36 x 72 x 78 cm
  • Net Weight:  Approx. 16 kg
  • HB016S
Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • HB013A
ISA nozzle on 29 mm diameter tube instead of orifice plate or Pitot tube
HB016S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
