CF 510 BATCH DISTILLATION UNIT

Enquiry

Video

Download

This equipment demonstrates a process for separation of a mixture (one soluble in another) of two liquids of different boiling points.

The unit consists of reboiler, two distillation columns, condenser, reflux tank, top product tank, vacuum pump, measuring instruments, and other accessories.

The liquid mixture is added to the reboiler where the mixed vapor with higher concentration of the lower boiling point component rises in the distillation column. The vapor leaves the top and is condensed in the condenser and the reflux tank. Part of the condensate in the reflux tank is fed back to the top of the column where heat exchange is taken place with the rising vapor. This results in vapor phase being richer in lower boiling point component, and the liquid phase being richer in higher boiling point component. The liquid phase moves down to the reboiler. Thus, the mixture in the reboiler is richer in the higher boiling point component with time.

Two columns, sieve plate column and packed column with Rasching rings, can be interchanged simply by valve control. Lagging is provided for reboiler, sieve plate column, and condenser.

The unit is installed on a stainless steel frame.

Instruction manual is also included.

  • Comparison of plate column and packed column performance.

  • Pressure drop across column vs boil up rate.

  • Column efficiency vs boil up rate at total reflux.

  • Top product composition vs time at constant reflux ratio.

  • Manual control of reflux ratio.

  • Plate to plate temperature profiles.

  • Mass balance across the system.

  • Plate column
:  Stainless steel with a view port
 :  8 sieve plates
  • Packed column
:  Borosilicate glass with Raschig rings
  • Reboiler

  • Heater
:  Adjustable
  • Maximum temperature
:  130oC
  • Condenser
:  Shell and tube, stainless steel, water cooled
  • Reflux tank
:  Stainless steel
  • Top product tank
:  Stainless steel
  • Reagents
:  Water/Methanol solution
  • Vacuum pump
:  1
  • Measuring instrument

- Pressure drop across column:  Water manometer
- Cooling water flow rate:  Flow meter
- Reflux ratio:  0 - 100%
- System pressure:  Pressure/vacuum gauge
- Sensors with digital display:  Temperatures
 :  Watt meter
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request
  • Net (unassembled) Shipping Dimensions WxLxH: 95 x 60 x 250 cm.
  • Net Weight:  Approx. 80 kg
  • CF510-011A    Borosilicate glass with stainless steel sieve plates instead of stainless steel sieve plate column.
  • Other optional equipment, please contact manufacturer ([email protected])
  • CF510S

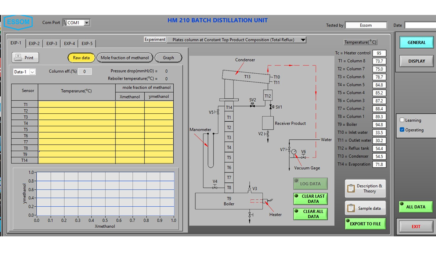

Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
