HB 027 MINI FLOW CHANNEL

Enquiry

Download

This equipment demonstrates primary characteristics of flow in an open channel including flow patterns over or around immersed objects. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The channel in made of clear acrylic with an undershot weir at inlet and an overshot weir at discharge. Water is admitted to the channel through a cylinder with a stilling baffle to reduce turbulence. A dye injection system is installed at the channel inlet to observe flow patterns around models.

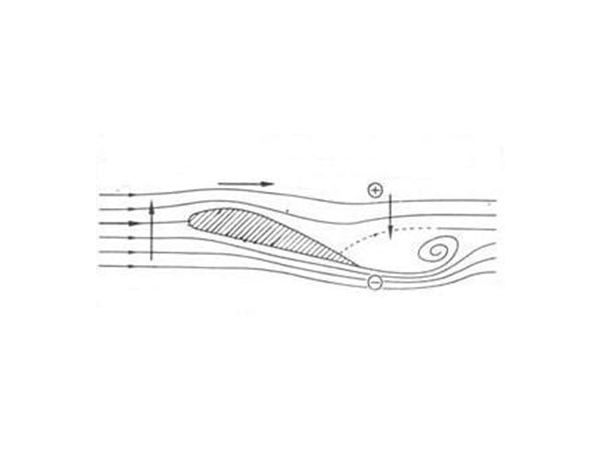

A grid is provided for easy observation of the streamlines.

Instruction manual is also included.

  • Flow patterns over or around immersed objects

  • Channel
:  Length 620 mm, depth 180 mm
  • Models

:  Small cylinder

:  Large cylinder narrow crested weir

:  Broad crested weir

:  Crump weir

:  Symmetrical aerofoil

:  Asymmetrical aerofoil


  • Dye injection system
:  Needles with dye reservoir


  • Net (unassembled) Shipping Dimensions WxLxH: 36 x 93 x 68 cm
  • Net Weight:  Approx. 12 kg
