HB 041 CAVITATION PANEL

Enquiry

Video

Download

This apparatus is for demonstrating the liquid vaporization under low pressure due to high flow velocity such as when water flows through a restriction in a pipe or a water passage. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

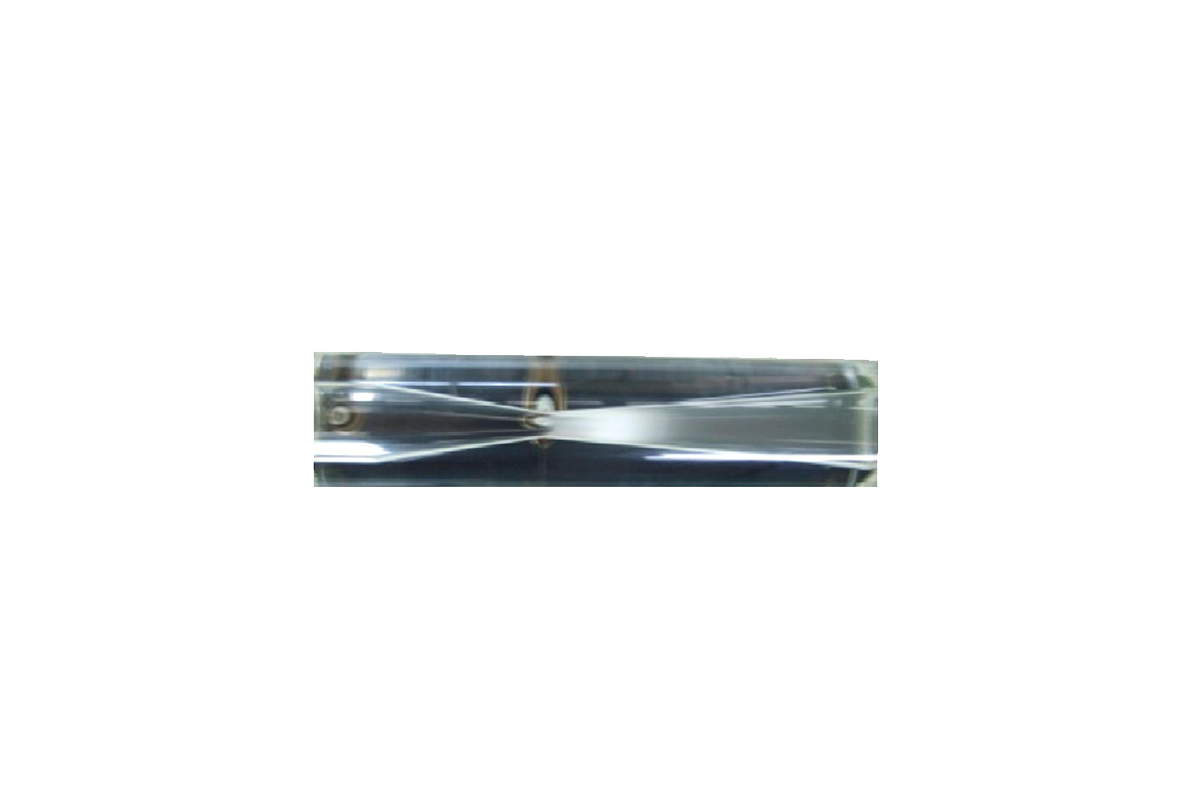

The test section is a transparent Venturi for vapor observation. Pressure and vacuum gauges are connected to pressure tappings at the upstream end and throat respectively of the test section. The test section and the gauges are mounted on a panel. The panel is intended for use with a Hydraulics bench (separately supplied) or an outside water supply with sufficient pressure and flow rate.

Instruction manual is also included.

  • Demonstrations of cavitation

  • Cavitation processes at different flow rates and pressures

  •  Transparent Venturi
:  1
  • Gauges

:  Pressure at inlet

:  Vacuum throat







  • Net (unassembled) Shipping Dimensions WxLxH: 35 x 77 x 42 cm
  • Net Weight:  Approx.7 kg
  • HB041S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HP002-1

Pressure gauge at outlet

  • HF011-035

Variable area flow meter for flow rate indication.

HB041S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
