MM 515 SHEAR FORCE AND BENDING MOMENT SET

Enquiry

Video

Download

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

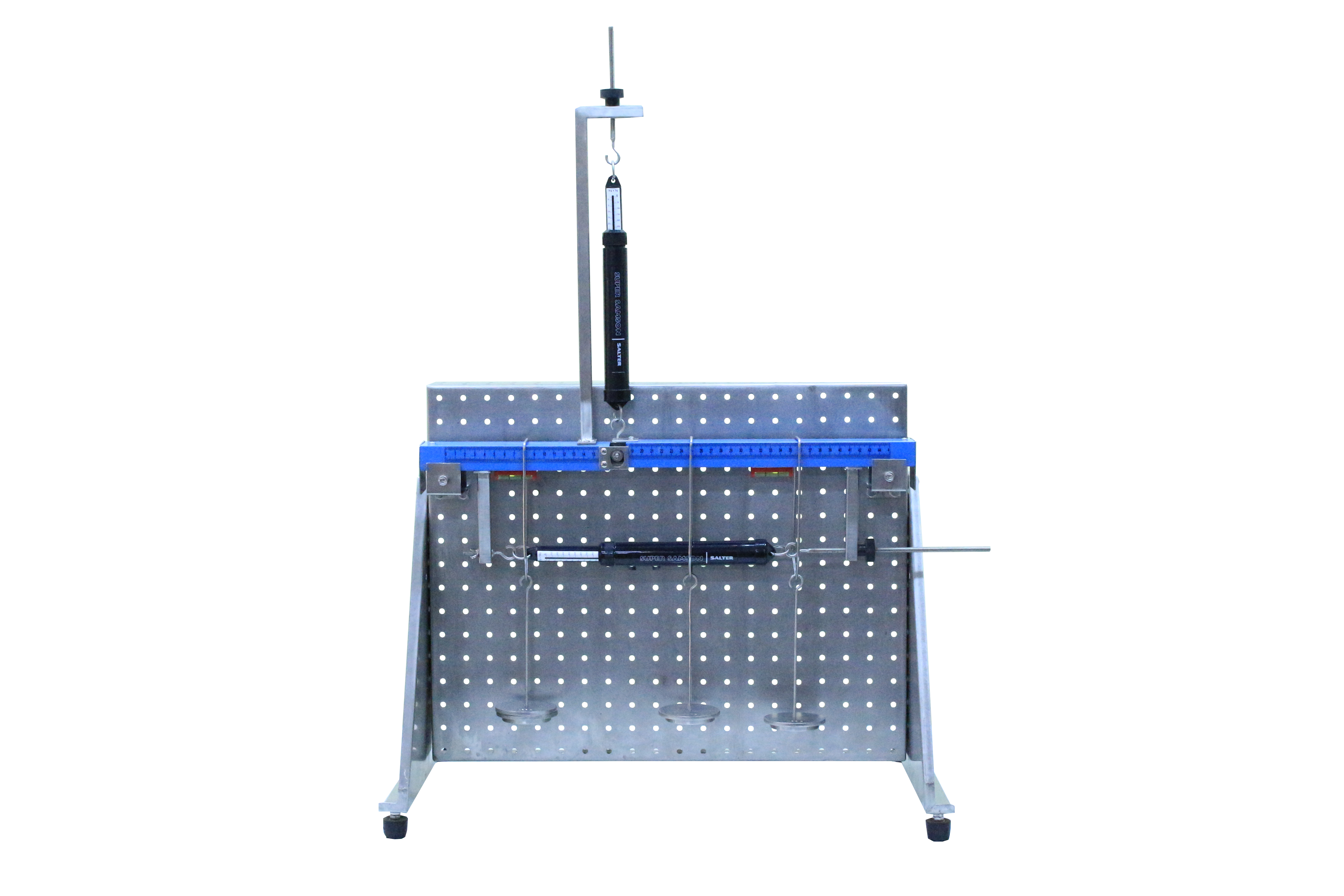

The beam has two parts with a ball bearing hinge at the joint. An underhung spring balance holds the hinge in compression, hence resists and determines bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included.

  • Bending moment of a beam under load.
  • Shear force of a beam under loads.
  • Beam for shear force and bending moment test

  • Beam supports

  • Hanger sliders

  • Spring balances

  • Load hangers

  • Weights

  • Plastic box

  • Net (unassembled) Shipping Dimensions WxLxH:  45 x 36 x 14 cm
  • Net Weight:  Approx. 5 kg
  • MM515S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
